MEKING--K1
The K1 combines a classic black-and-white design with professional self-service functionality. Perfect for restaurant and retail, it handles ordering, check-out, and digital signature. Modular and flexible, it supports customizable peripherals and easy upgrades to fit your business needs.
Upgrade Your Self-Service Solution
Performance Your Way
Choose the latest Intel processors from entry-level to high- end to match your business needs.Reliable performance ensures self-service operations run seamlessly. Reduce staff workload while delivering a smooth, efficient customer experience.
Screens That Adapt

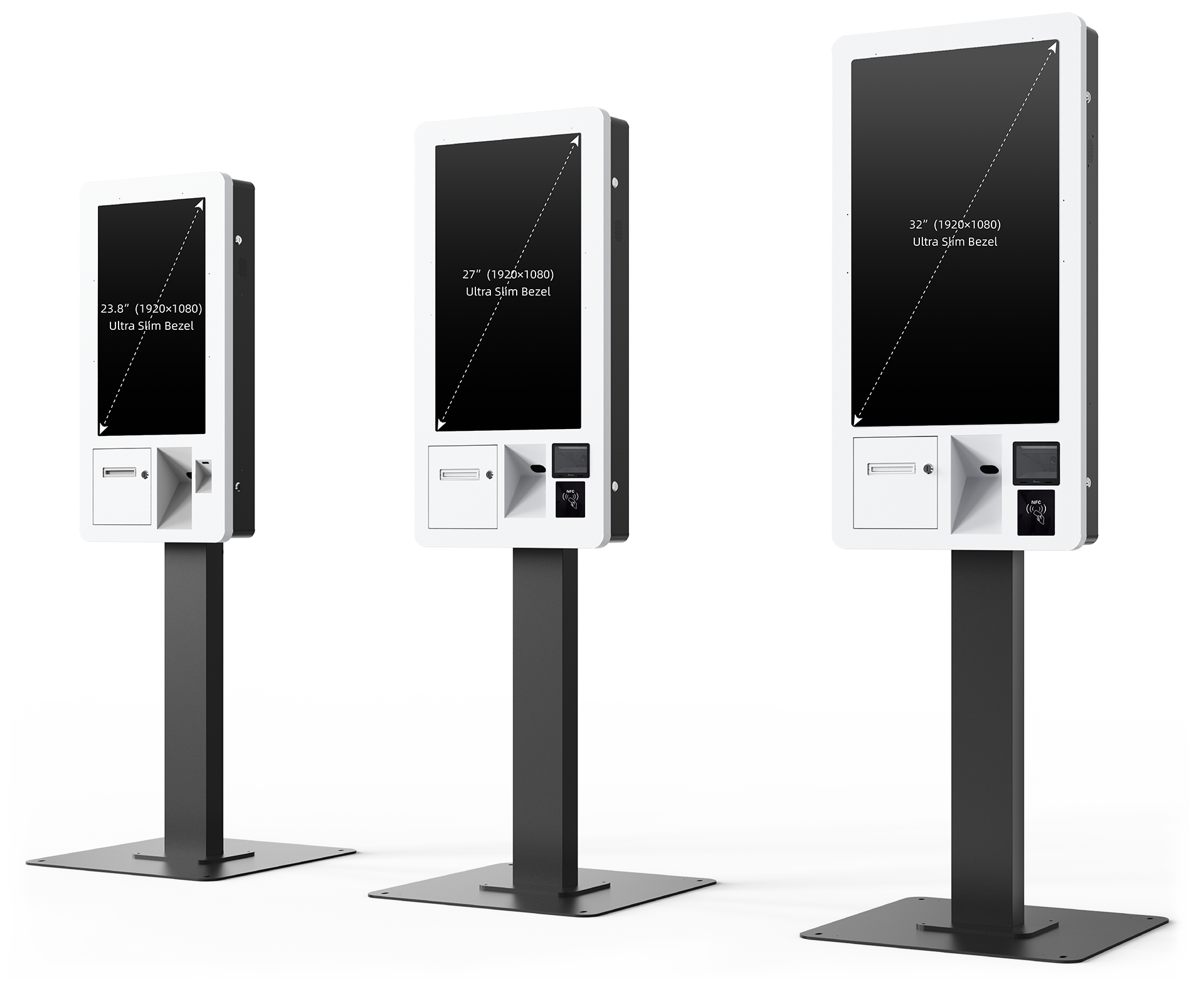

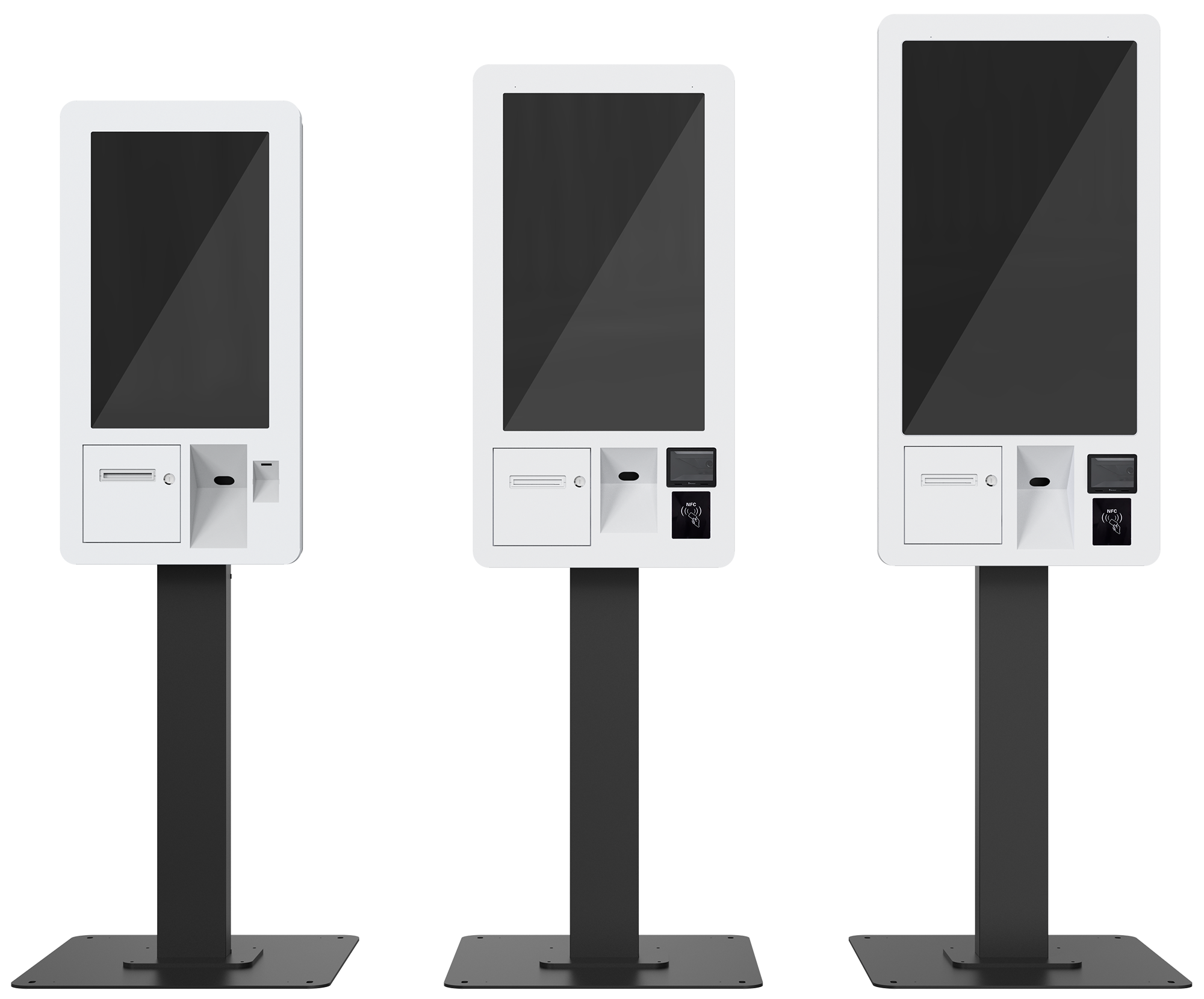

Experience Full HD clarity on 23.8", 27", or 32" screens. Enhance customer interaction with immersive visuals and dynamic promotional displays.Choose the size that best fits your store layout and business needs.

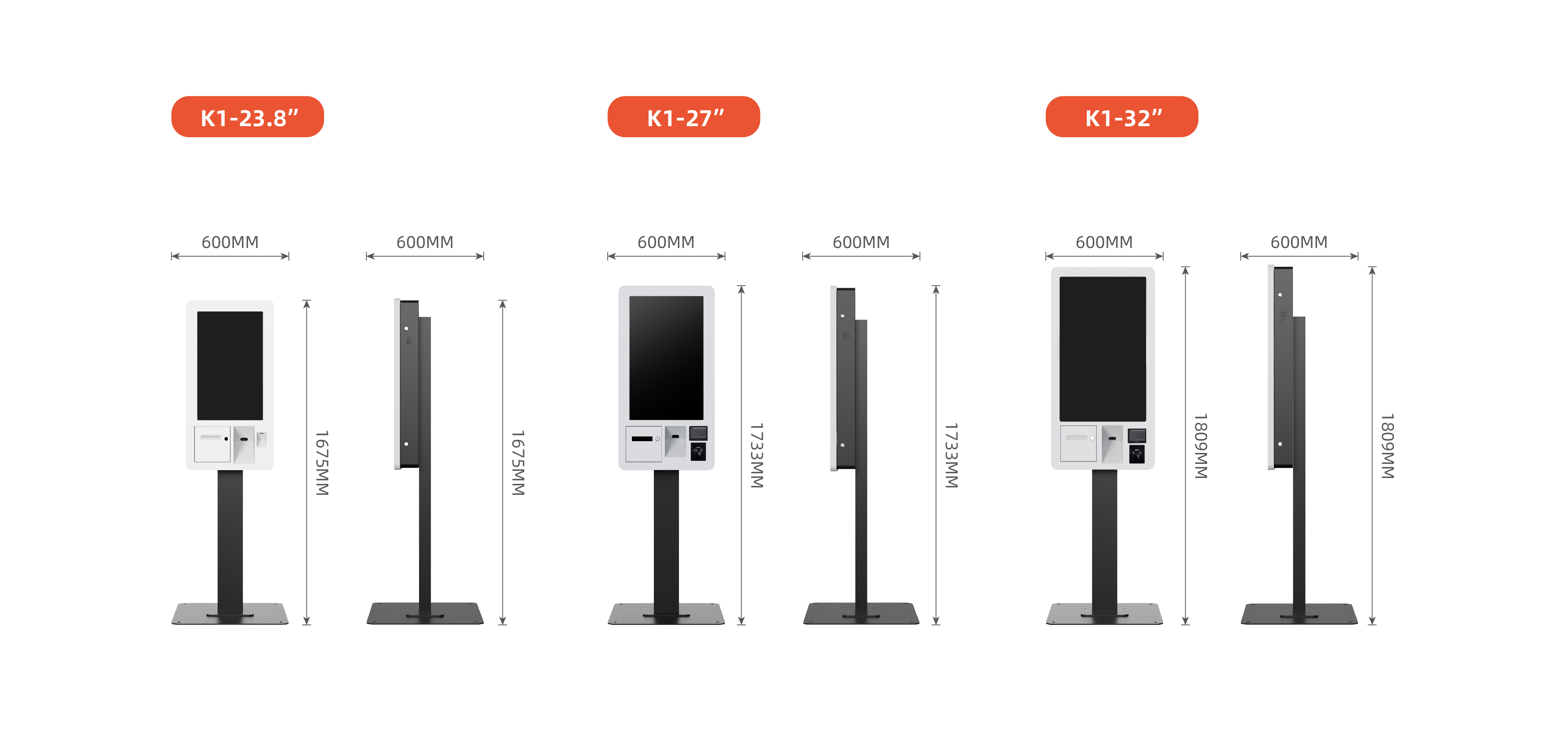

FLEXIBLE DEPLOYMENT OPTIONS

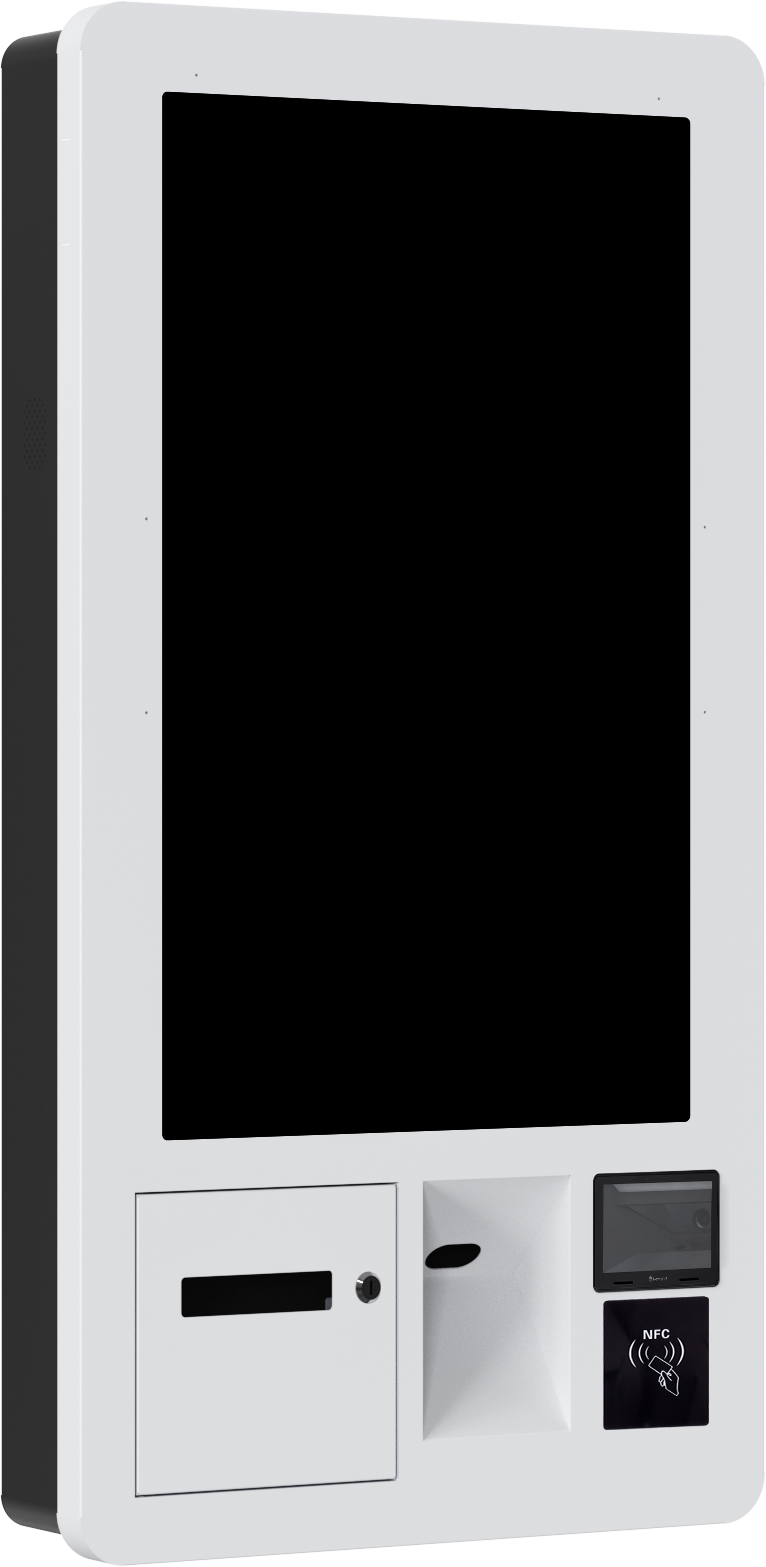

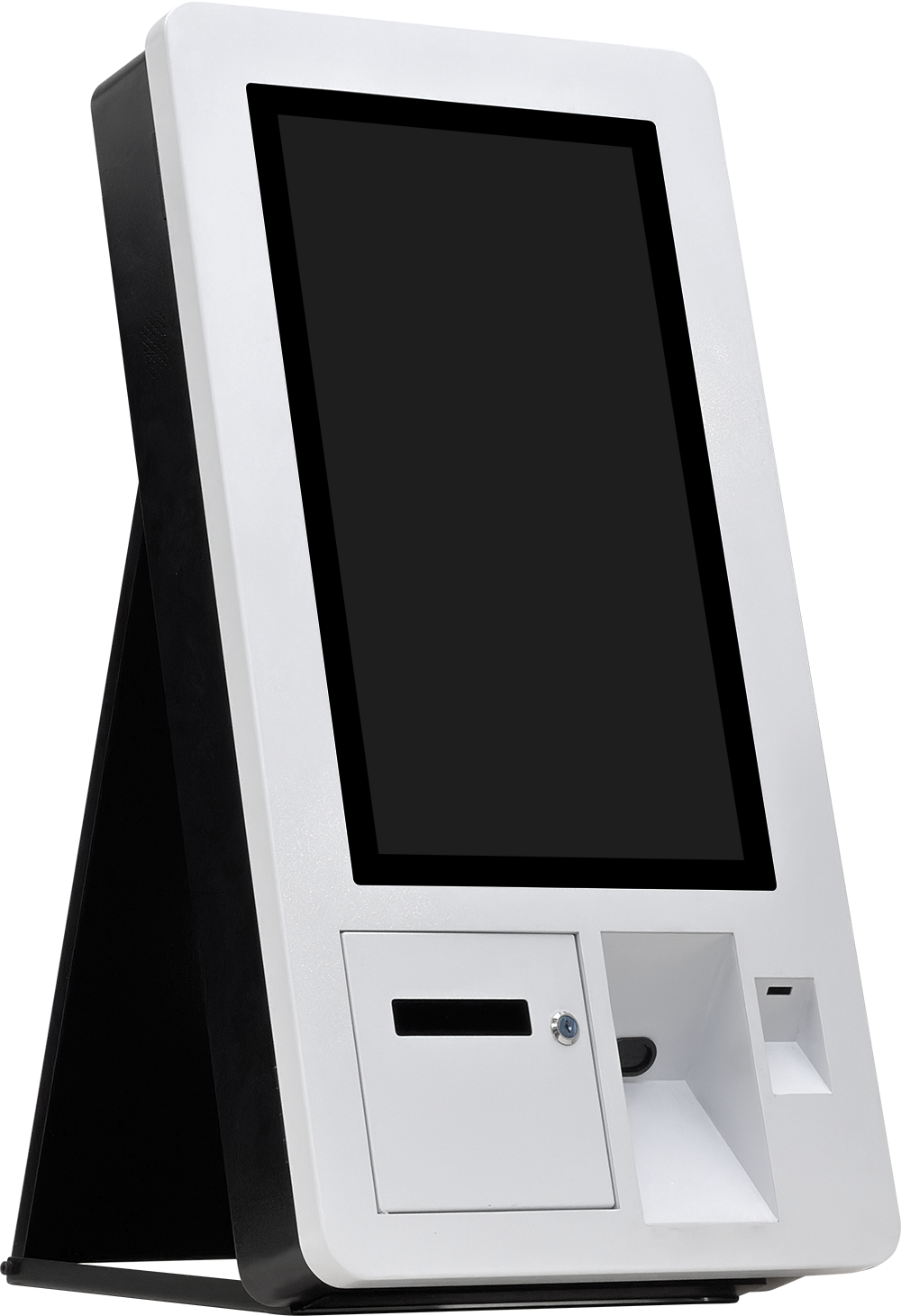

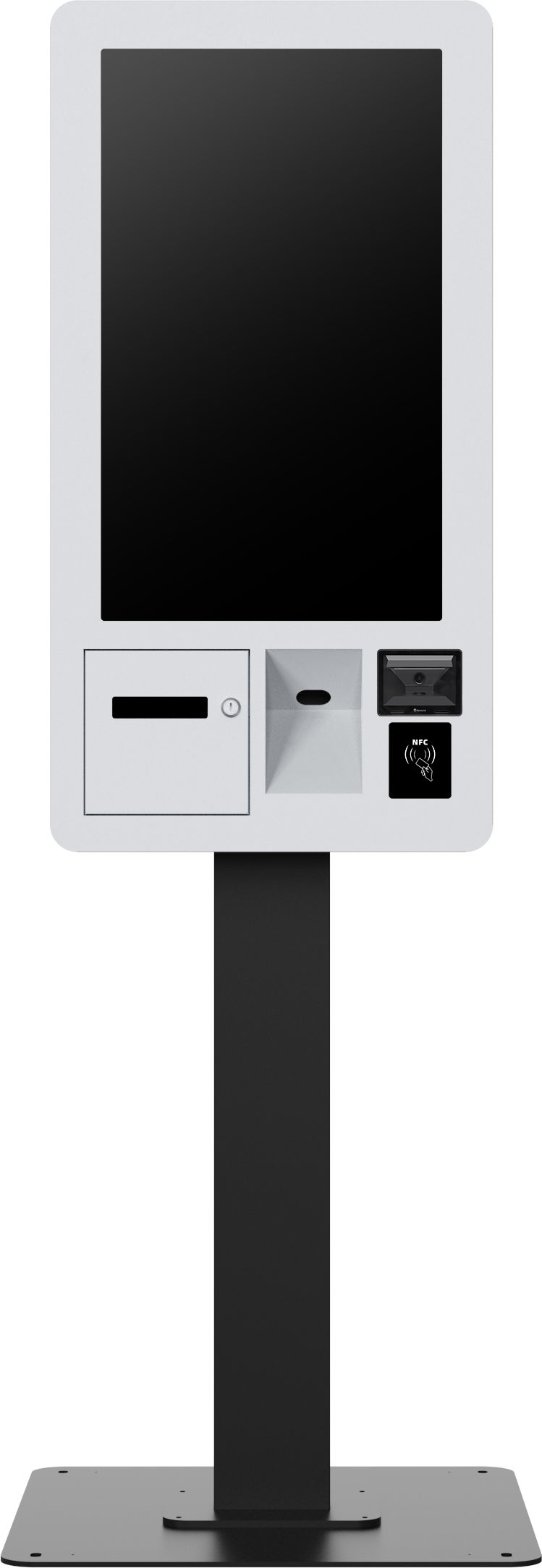

Supporting destktop, wall-mount and floor-satanding installations. K1 adapts to diverse store layouts and project requirements. A unified hardware platform simplifies intergration across different deployment scenarios. This flexibility reduces redesign effort, speeds up installation and lowers total cost of ownership.
options
Peripheral-Ready. Built for Real Use
Peripheral support designed for practical self-service operations. Enable smoother ordering flows and more efficient customer interactions.

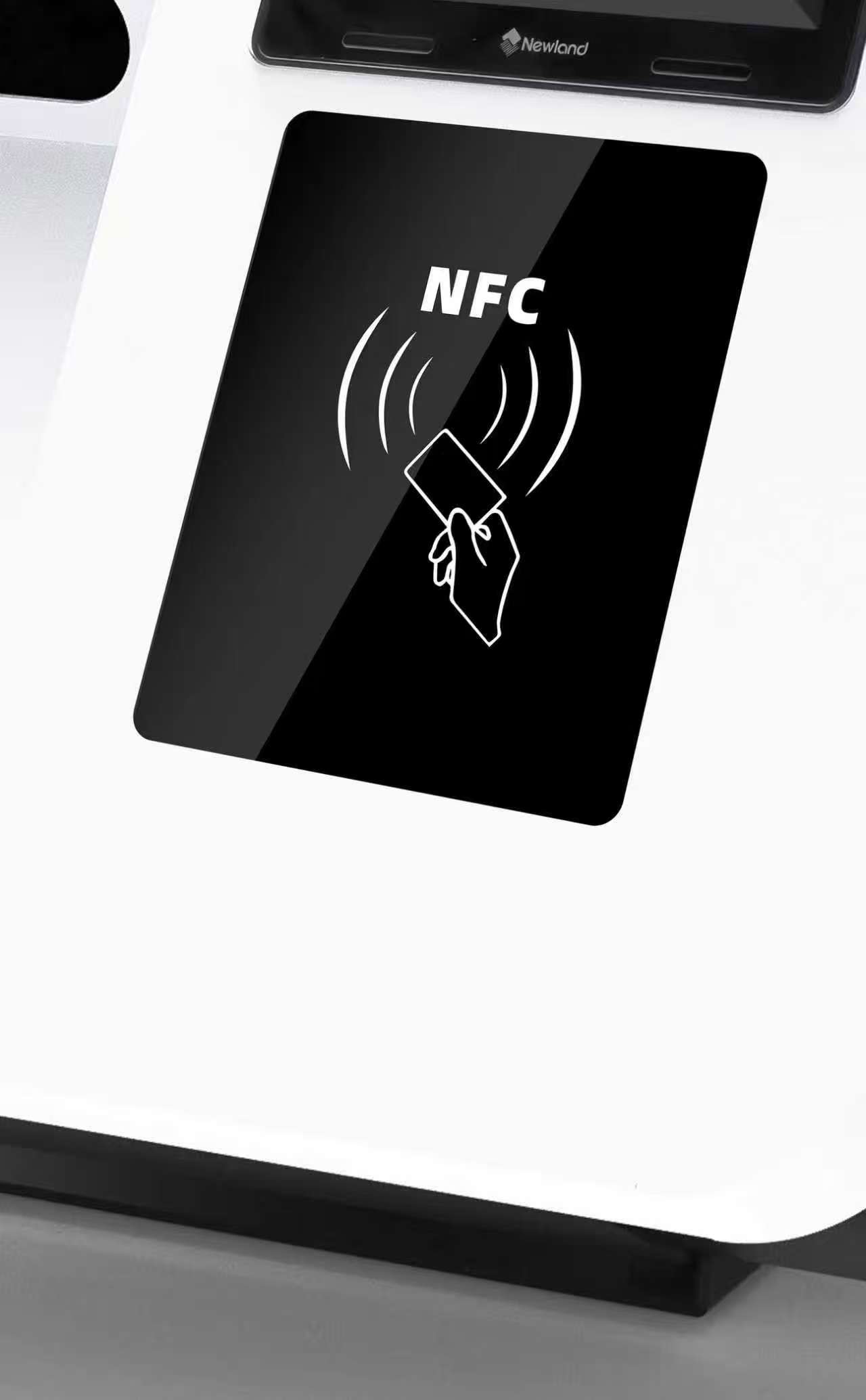

NFC
Contactless payment
for fast self-service.

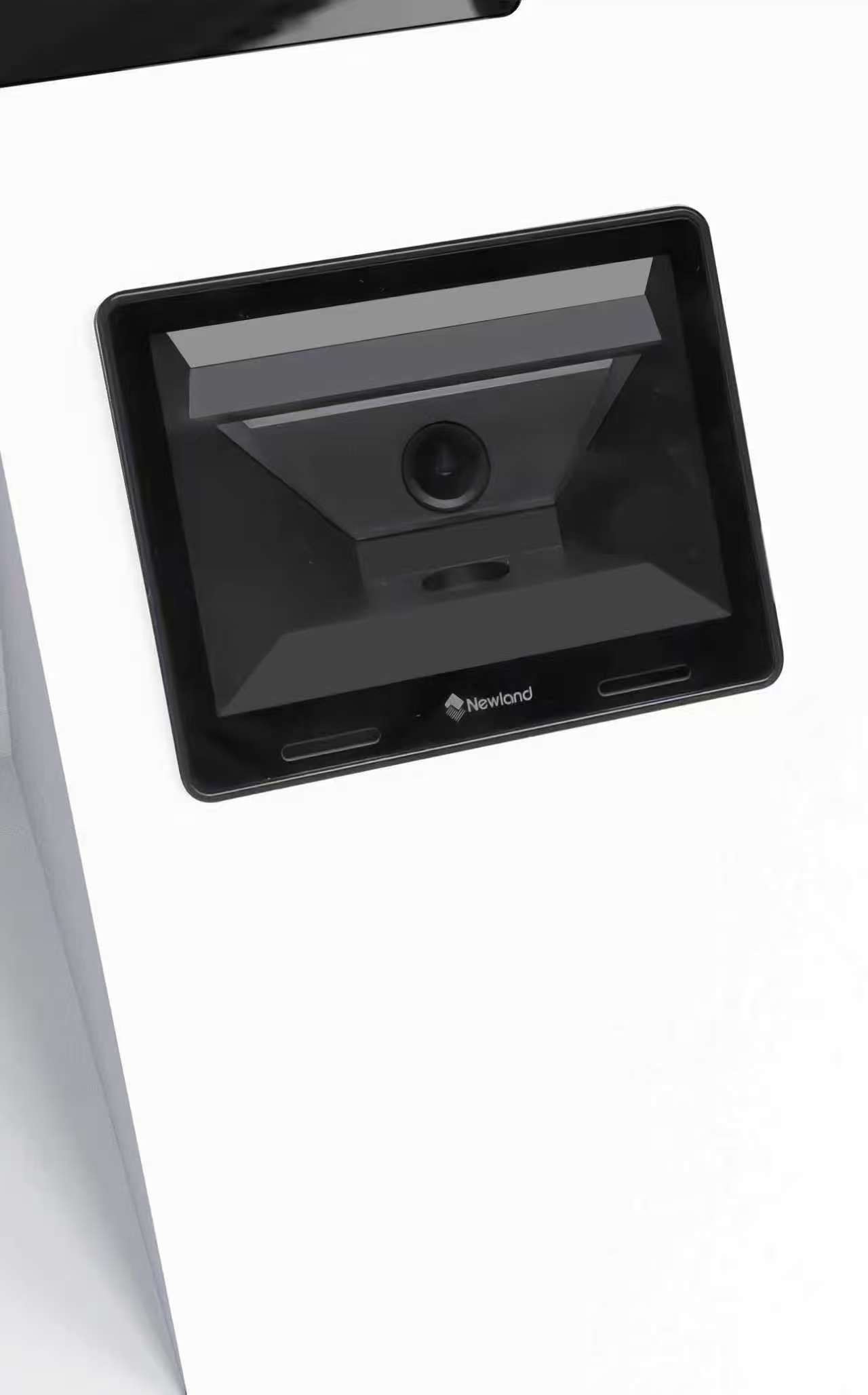

2D Scanner
Scan QR codes and
barcodes.

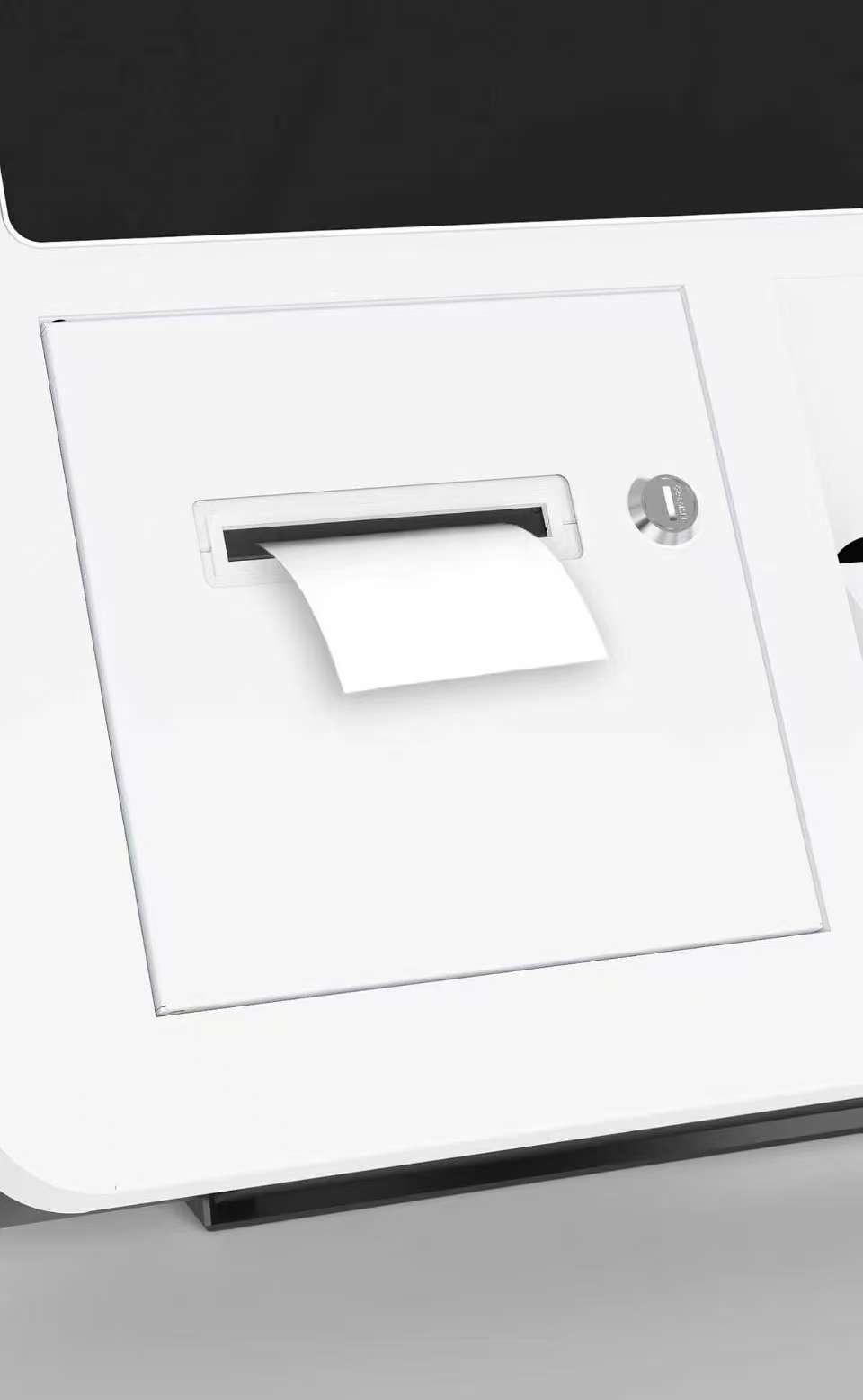

Printer
On-site printing for
order verification.

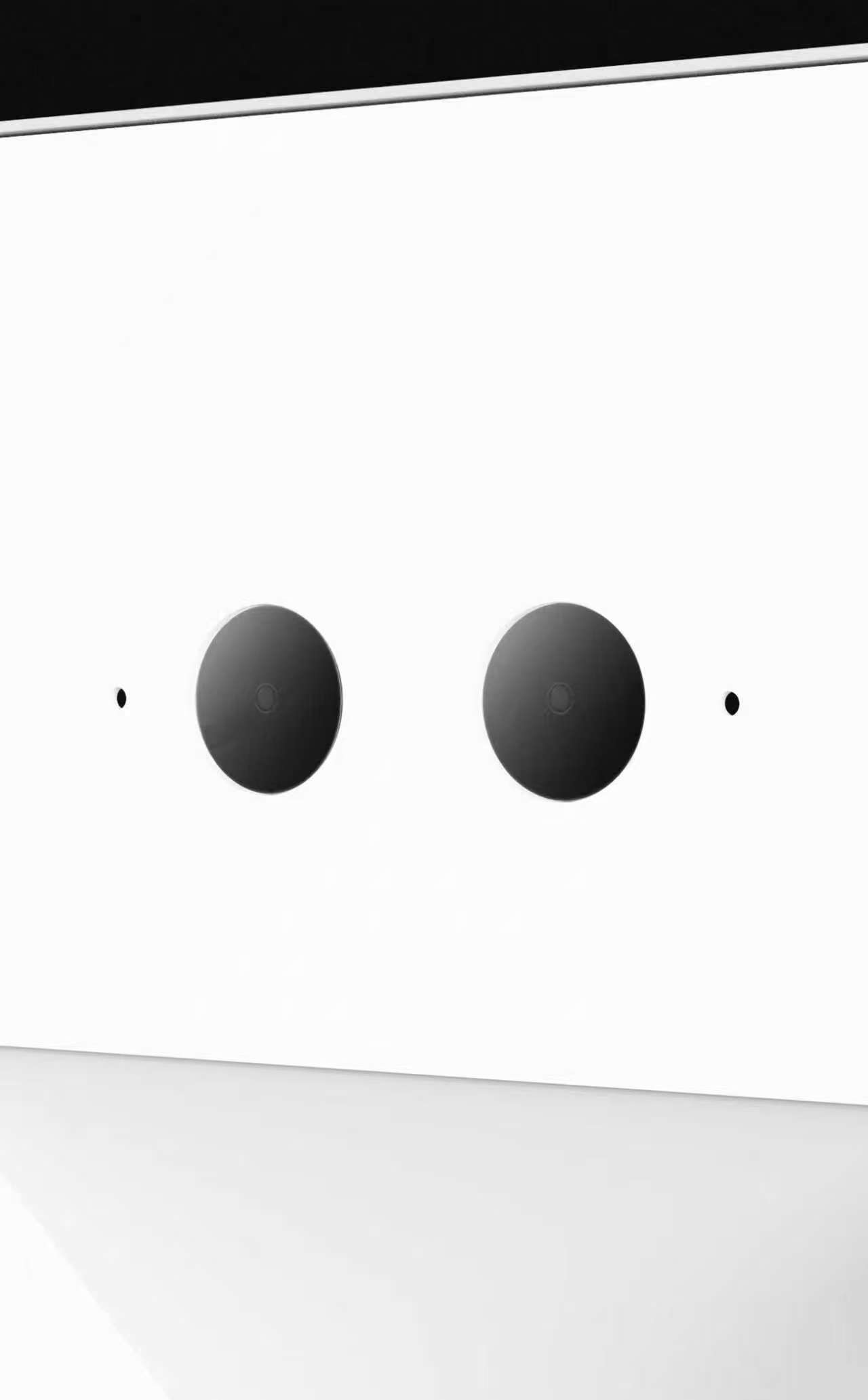

Proximity Sensor
Presence detection to
trigger system response.

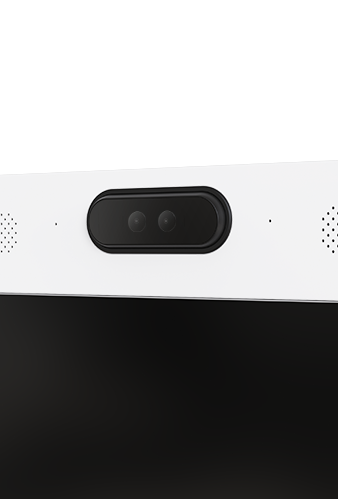

5MP Camera
Camera for visual interaction and
recognition.
specifications
| specifications | Android | Windows |
| CPU |
RK3568 Quad-core 64-bit up to 2.0GHz RK3576 Octa-core 64-bit up to 2.2 GHz |
Intel® N95(6M Cache, up to 3.40 GHz) Intel® Core™ i3-1215U(10M Cache, up to 4.40 GHz) Intel® Core™ i5-1235U(12M Cache, up to 4.40 GHz) |
| Os support |
Android 11.0 (RK3568) Android 14.0 (RK3576) |
Windows 10/Windows 11/Linux |
| Resolution | 23.8" (1920×1080) / 27" (1920×1080)/ 32" (1920×1080) | |
| Touch screen | Multi-point CapacitiveTouch Screen | Multi-point CapacitiveTouch Screen |
| ROM/SSD | 64GB Built-in eMMC(Max. 128GB) | 128GB Standard,M.2 2280 D2-M(Max. ITB) |
| RAM | DDR4 4GB On Board(Max. 8GB) | 8GB Standad, DDR4 3200MHz(Max. 32GB) |
| Serial | 1 x COM | 2 x COM |
| USB | 5 x USB 2.0 | 2 x USB 3.0/4 x USB 2.0 |
| LAN | 1 x RJ-45, Giga LAN | 1 x RJ-45, Giga LAN |
| WiFi | 802.11 ac/b/g/n & BT 4.2 | 802.11 ac/b/g/n & BT 4.2 |
| Video | 1 x HDMI | 1 x HDMI |
| Audio jack | 1 x Line-out&MIc-in 2-in-1, 1 x Internal speaker | 1 x Line-out&MIc-in 2-in-1, 1 x Internal speaker |
| EMV Payment Device Bracket | Suppot for Various EMV Payment Devicer | |
| Scanner | 2D Barcode Scanner | |
| Printer | Thermal Printer with Auto Cutter, 250mm/sec(max.) | |
| status Indicator | RGB Color LED Indicator | |
| Housing | Sheet Metal | Sheet Metal |
| Power | Input: 60W/12V | Input: 96W/12V |
| Color | White /Black | White /Black |
| Optional | 5MP
Camera NFC/RFID Reader (USB) Proximity Sensor(USB) Fingerprint Reader(USB) Magnetic Stripe Reader (USB, Support 1& 2 & 3 Track) |
|
