m3 modular pos
Ultra-slim and elegantly modular, M3 enhances premium and hospitality spaces, fits naturally on the counter, and adapts effortlessly to boutiques, cafés, bakeries, and luxury environments — the refined POS for spaces where design matters.
unparalleled performance and versatility

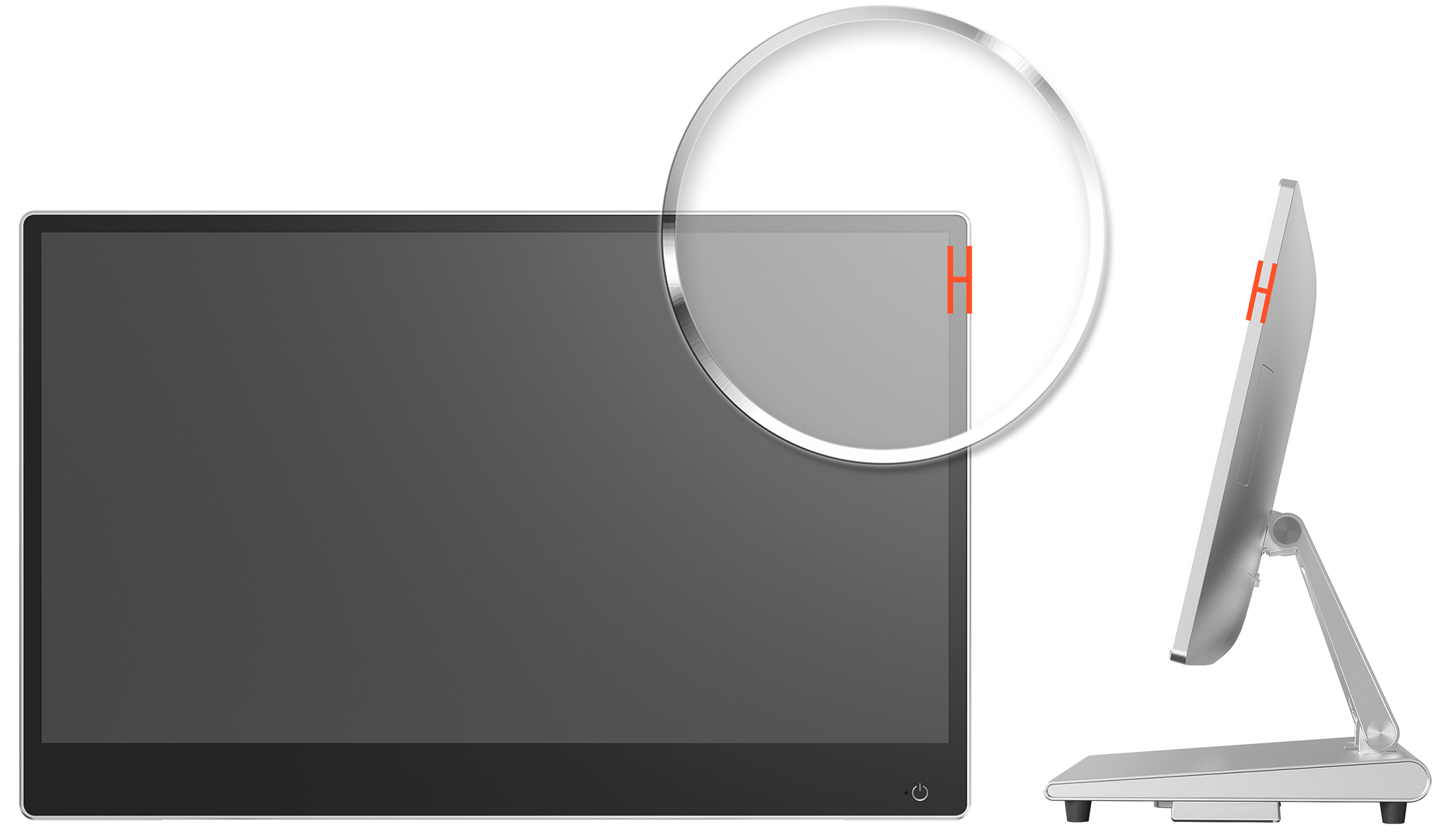

SILVER, MINIMAL, INTENTIONAL
With its ultra-narrow bezel and slim silver-metal body, M3 delivers a clean, elegant presence with a modern, high-tech feel.Designed to blend seamlessly into premium retail and hospitality environments.
DESIGNED TO STAY FLAWLESS
With IP65-rated front protection, M3 is built for frequent cleaning, accidental splashes, and everyday care. So your counter stays clean — and the experience uninterrupted.

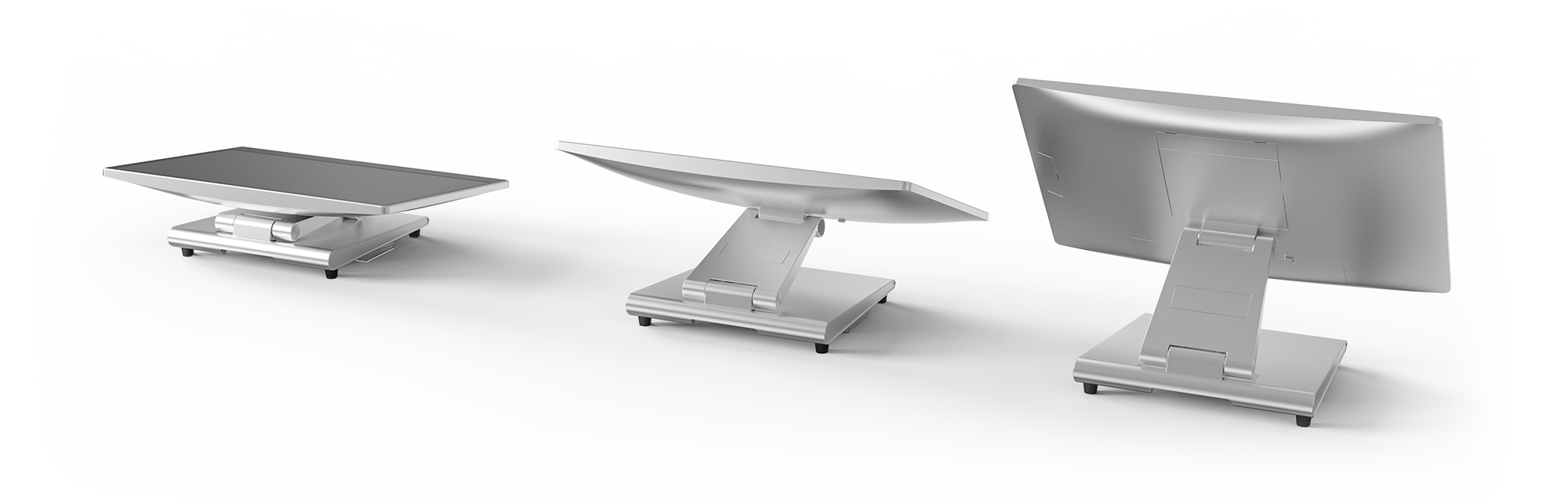

DESIGNED TO MOVE WITH THE MOMENT
With a dual-hinge foldable stand,M3 adjusts naturally to different interactions and counter layouts. Always at the right angle — for staff, for customers, and for the space.

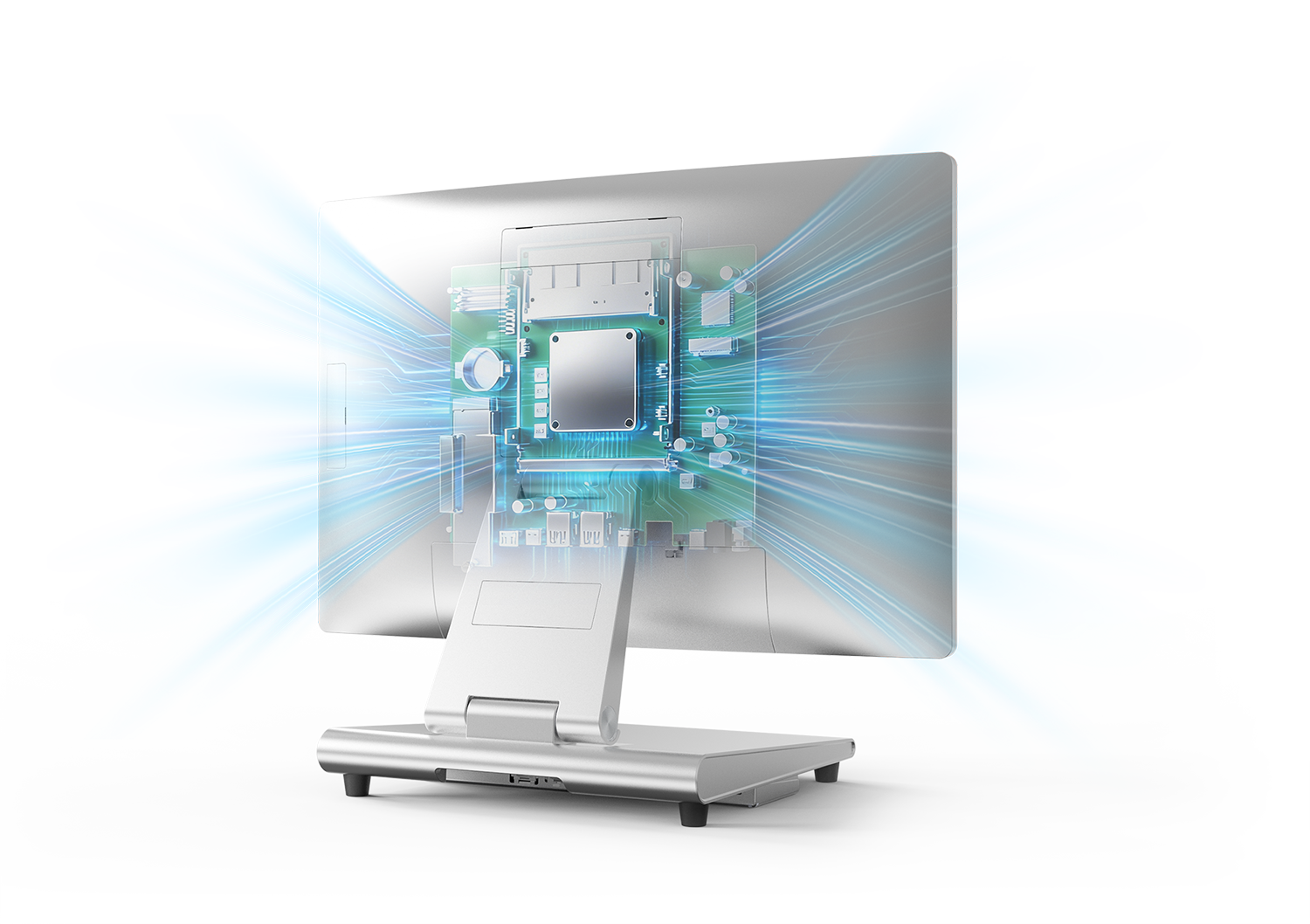

SILENCE THAT ELEVATES THE EXPERIENCE
The fanless design keeps M3 running quietly, supporting a refined, distraction-free environment. Ideal for boutique retail and premium hospitality.
MODULAR BY DESIGN. POWERED TO EVOLVE
M3 features a modular architecture built around a compact system box. Powered by the latest Intel processors — from entry-level to high- performance options. Upgrades and servicing are simplified through modular replacement, helping minimize downtime and disruption to daily operations.

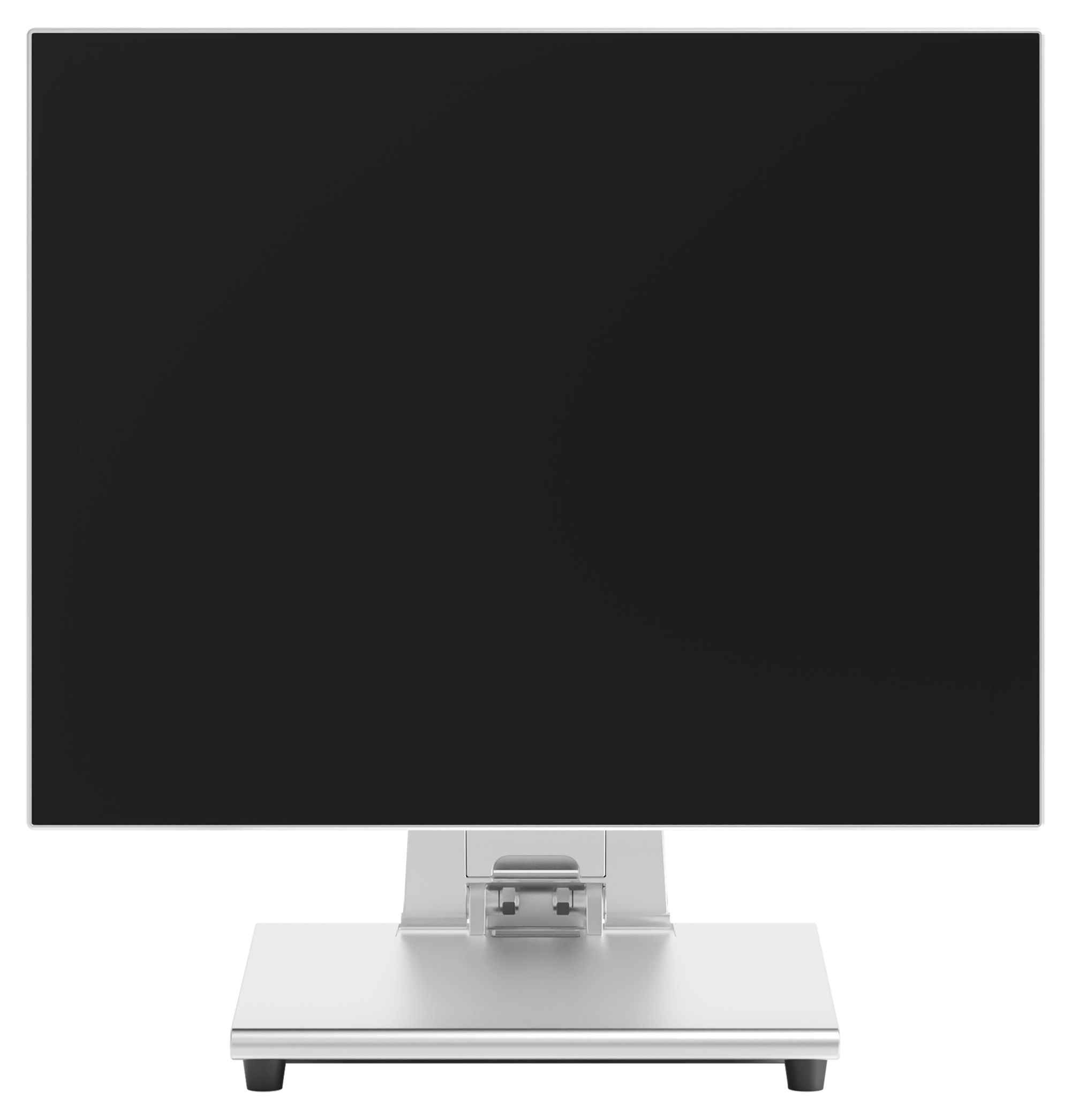

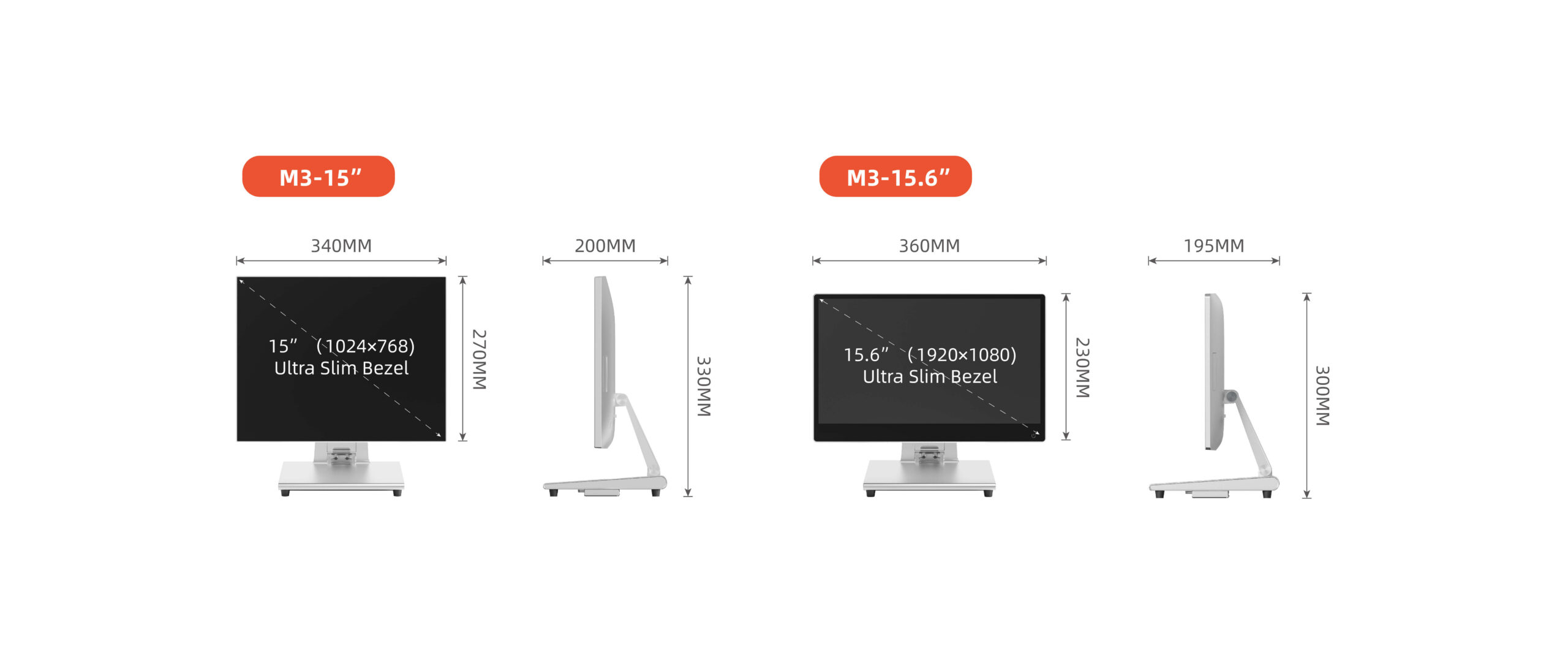

SAME DESIGN. DIFFERENT VIEW
One design, Every application scenario
options

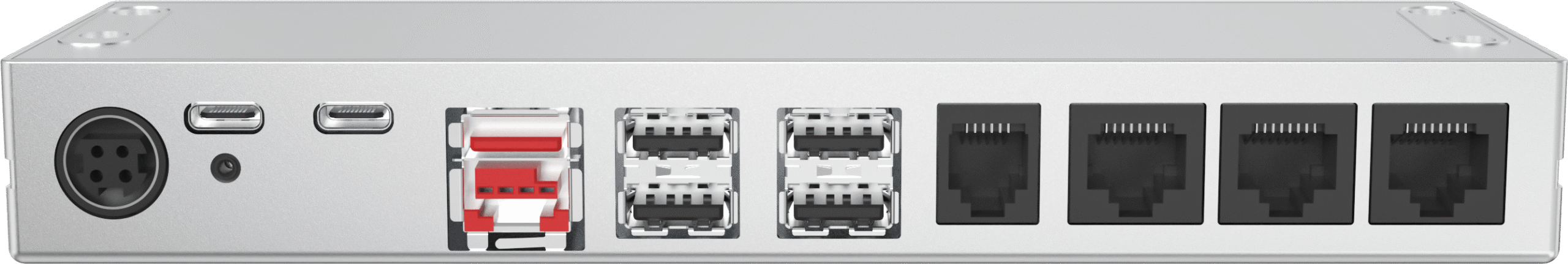

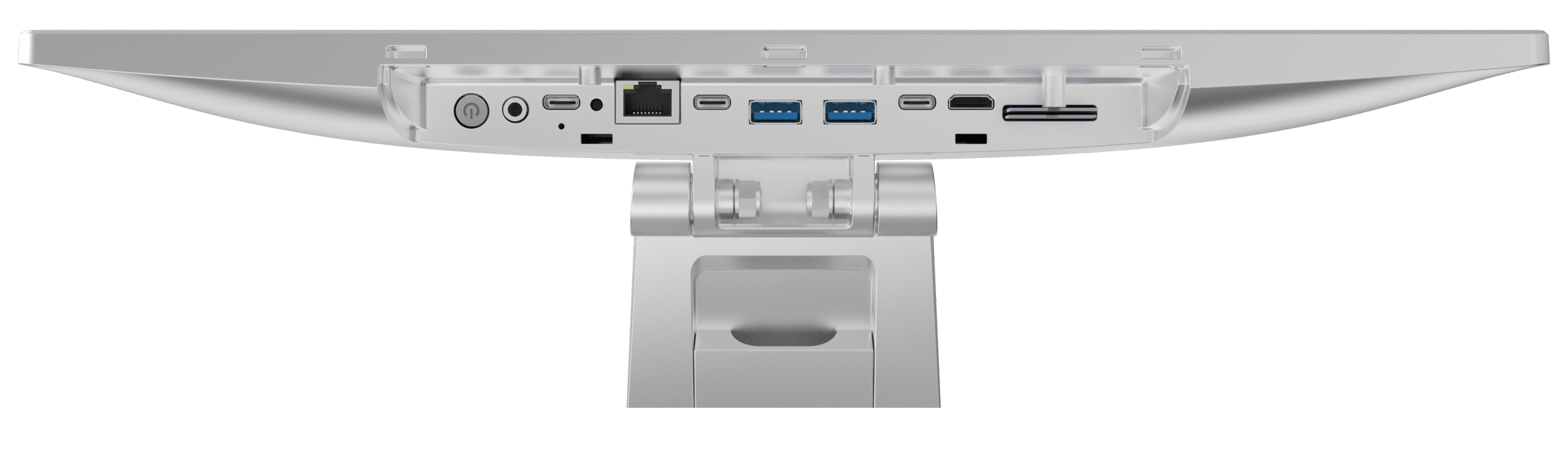

SMART CONNECTIVITY. READY FOR BUSINESS
A well-balanced I/O layout supports everyday POS peripherals with ease. From payment to display, M3 integrates smoothly into modern retail setups. Built for stable operations across diverse business environments.

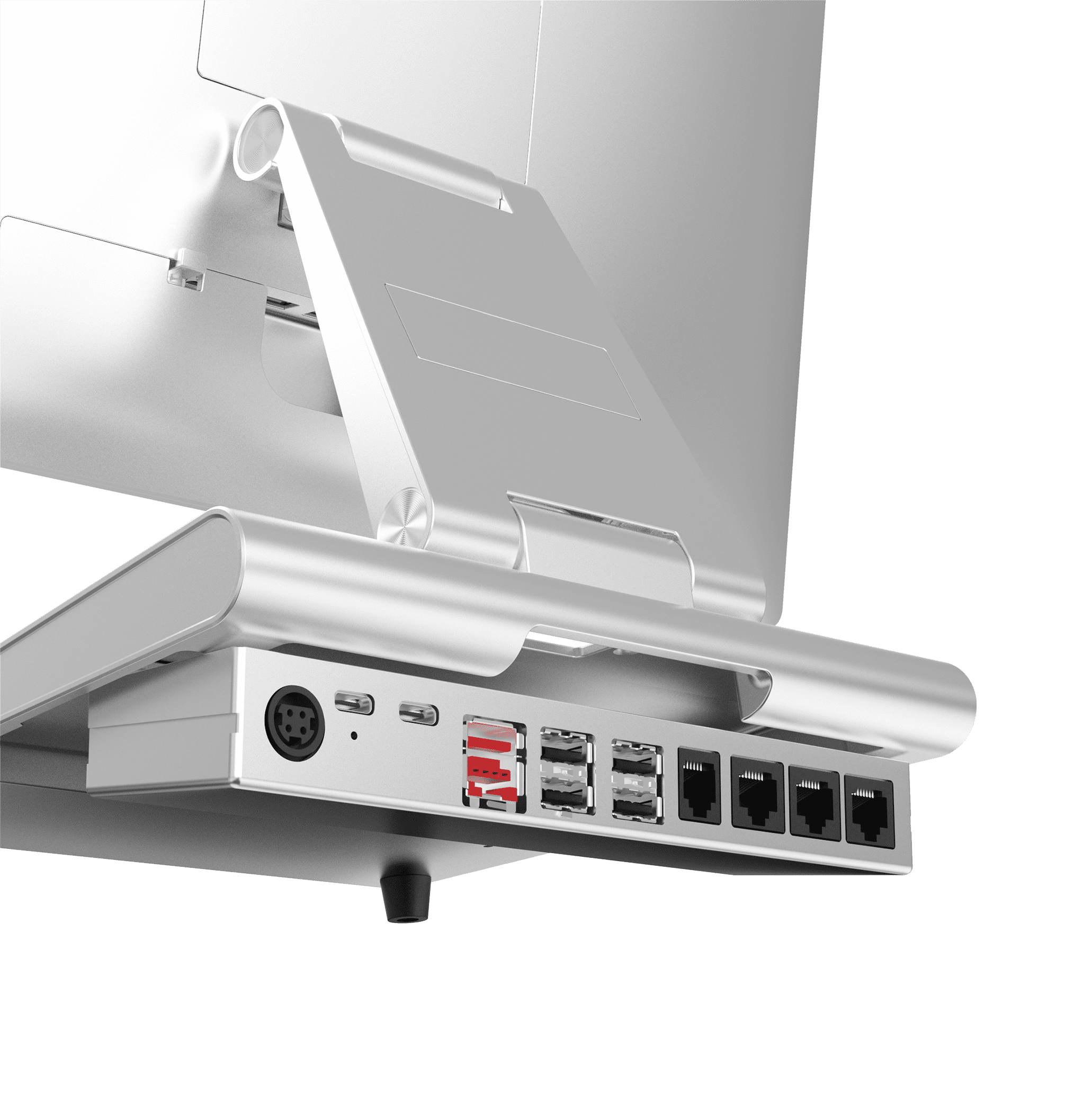

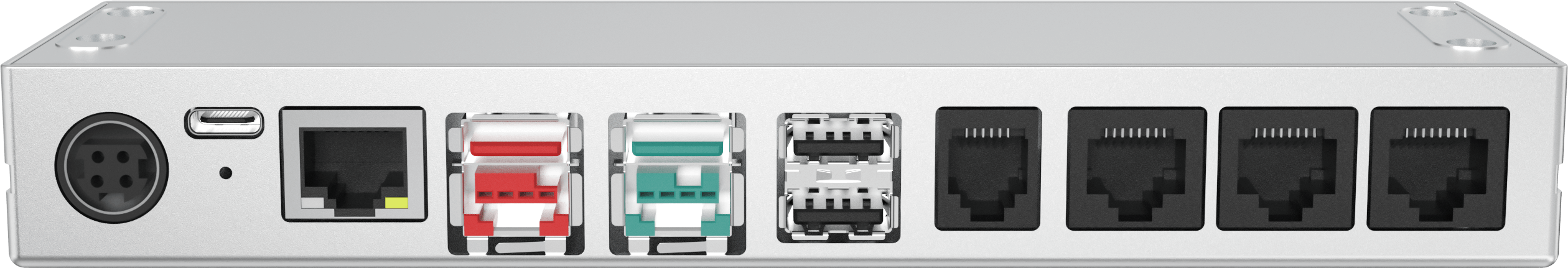

EXPAND WHEN YOU NEED
When your setup needs more, the expansion box is ready. Easily accommodate additional peripherals without replacing or redesigning the core system.
designed for dual display

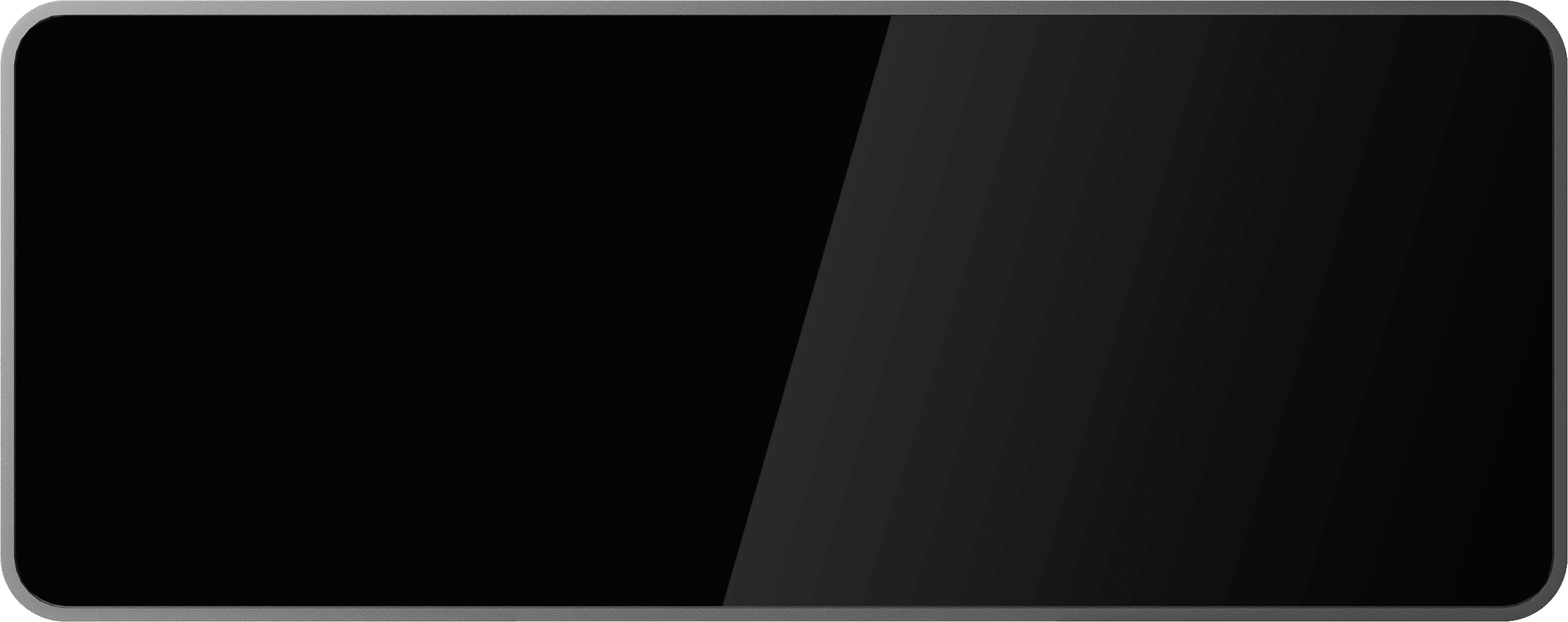

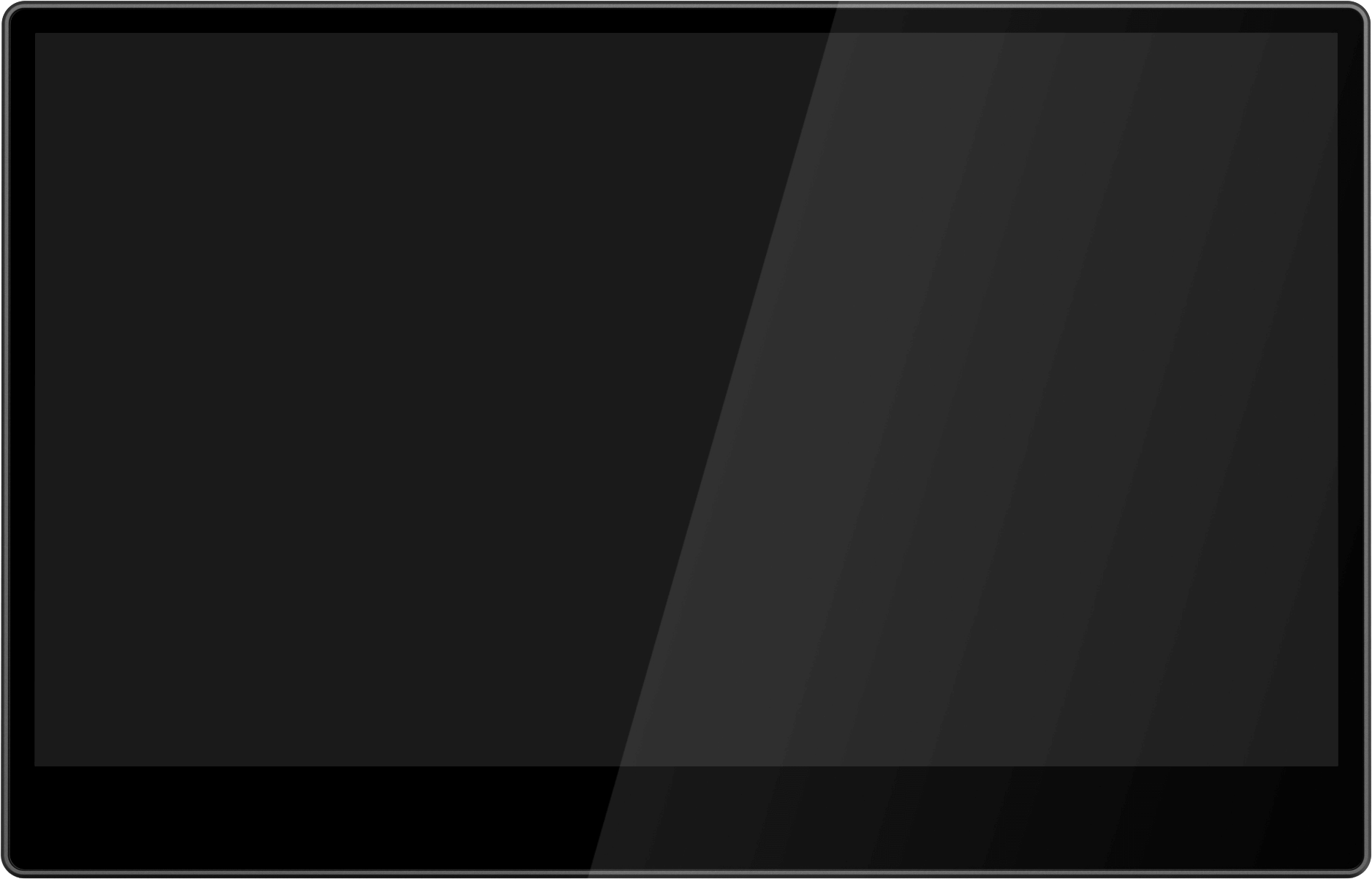

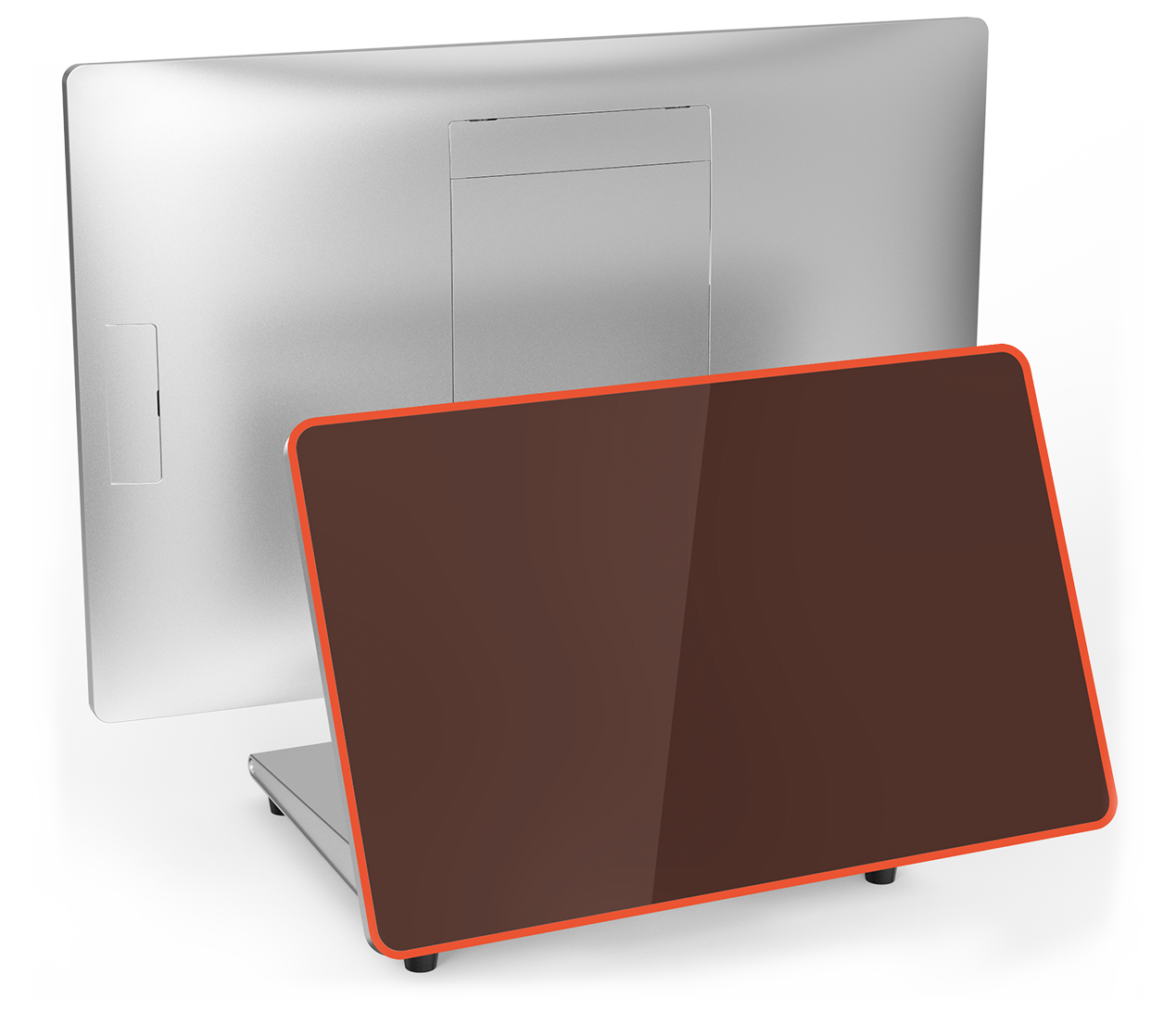

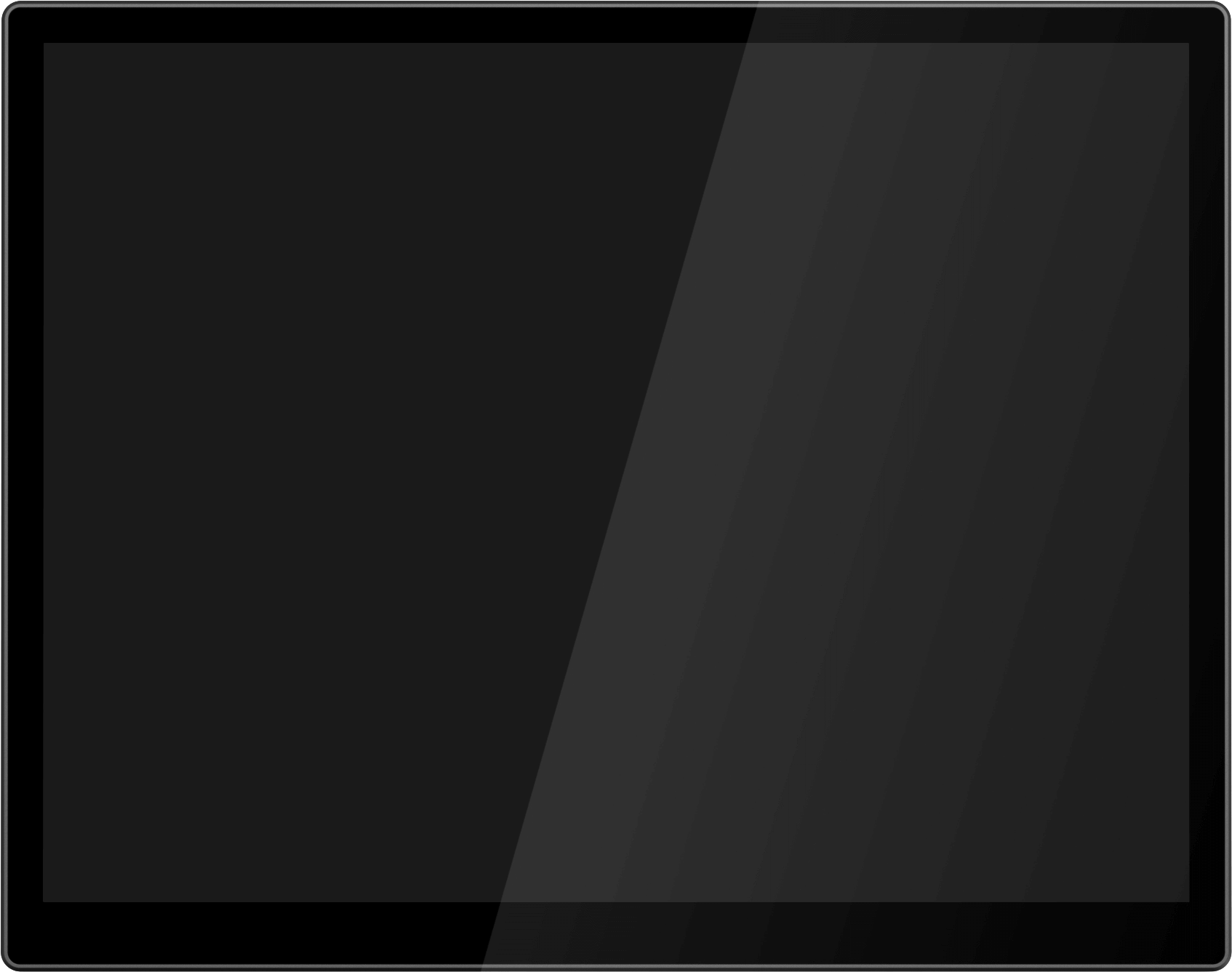

M3 supports multiple customer-facing display options including 9.7’’, 11.6’’ secondary screens and VFD. One terminal, multiple ways to engage customers.

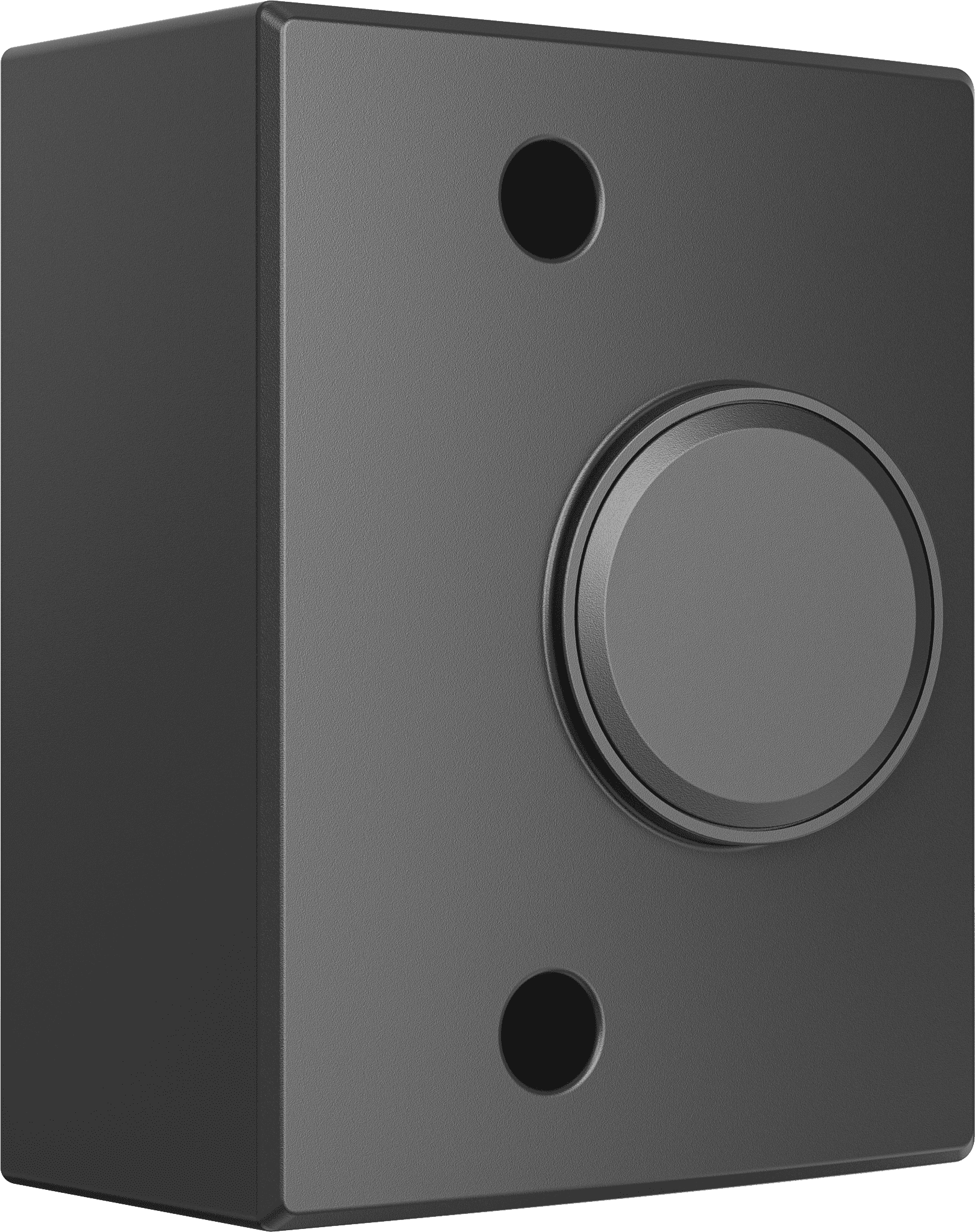

designed for peripheral expansion

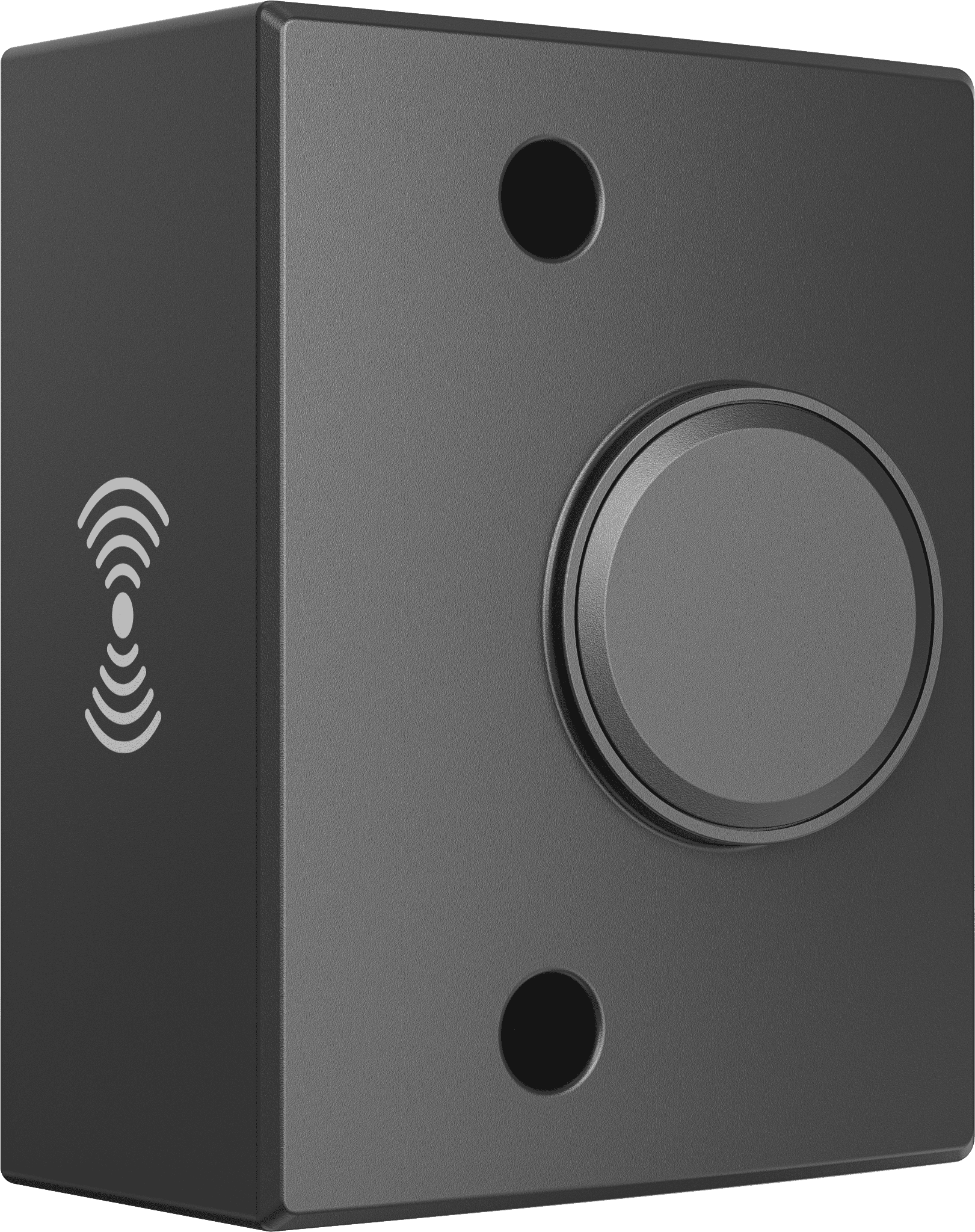

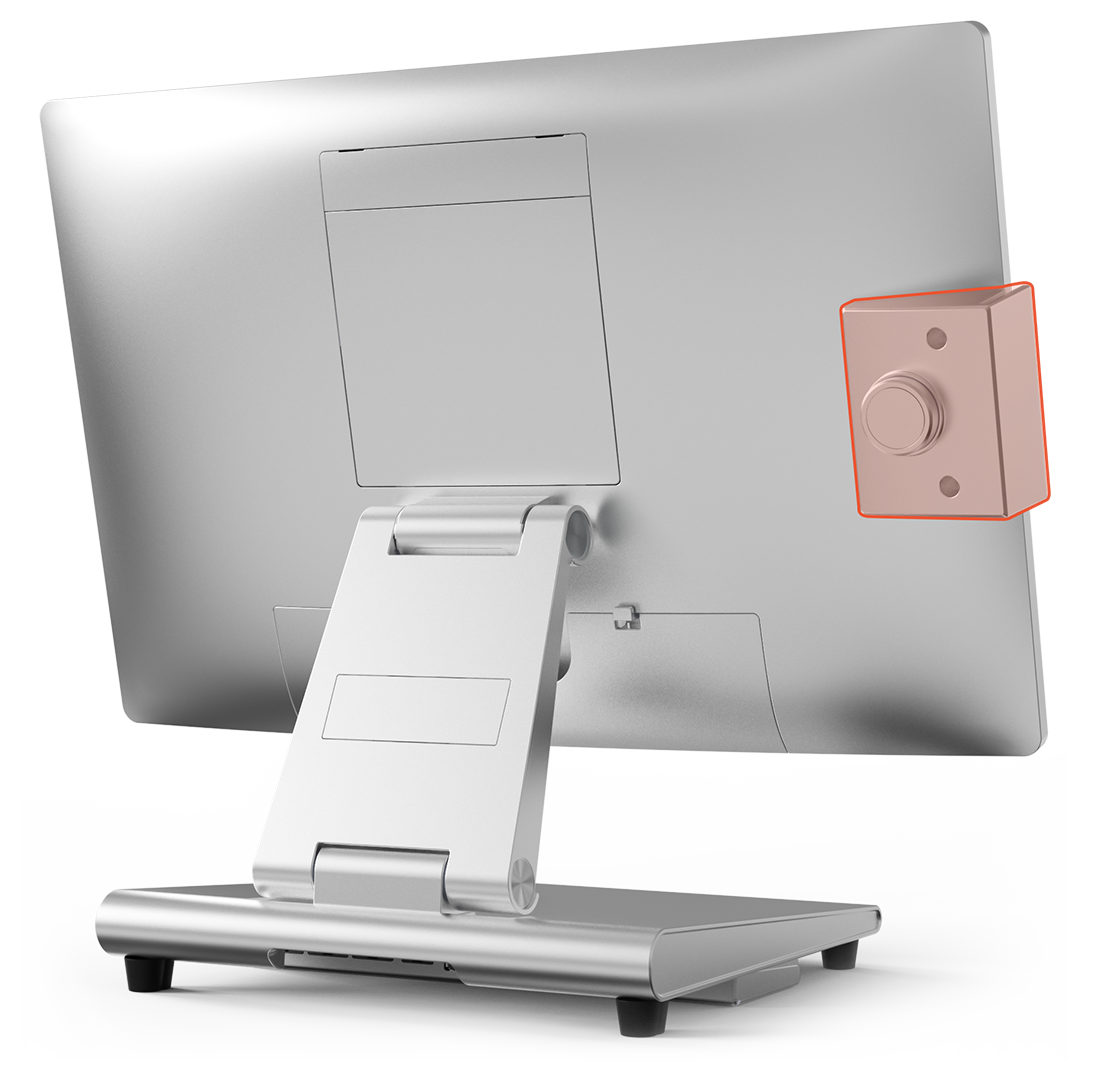

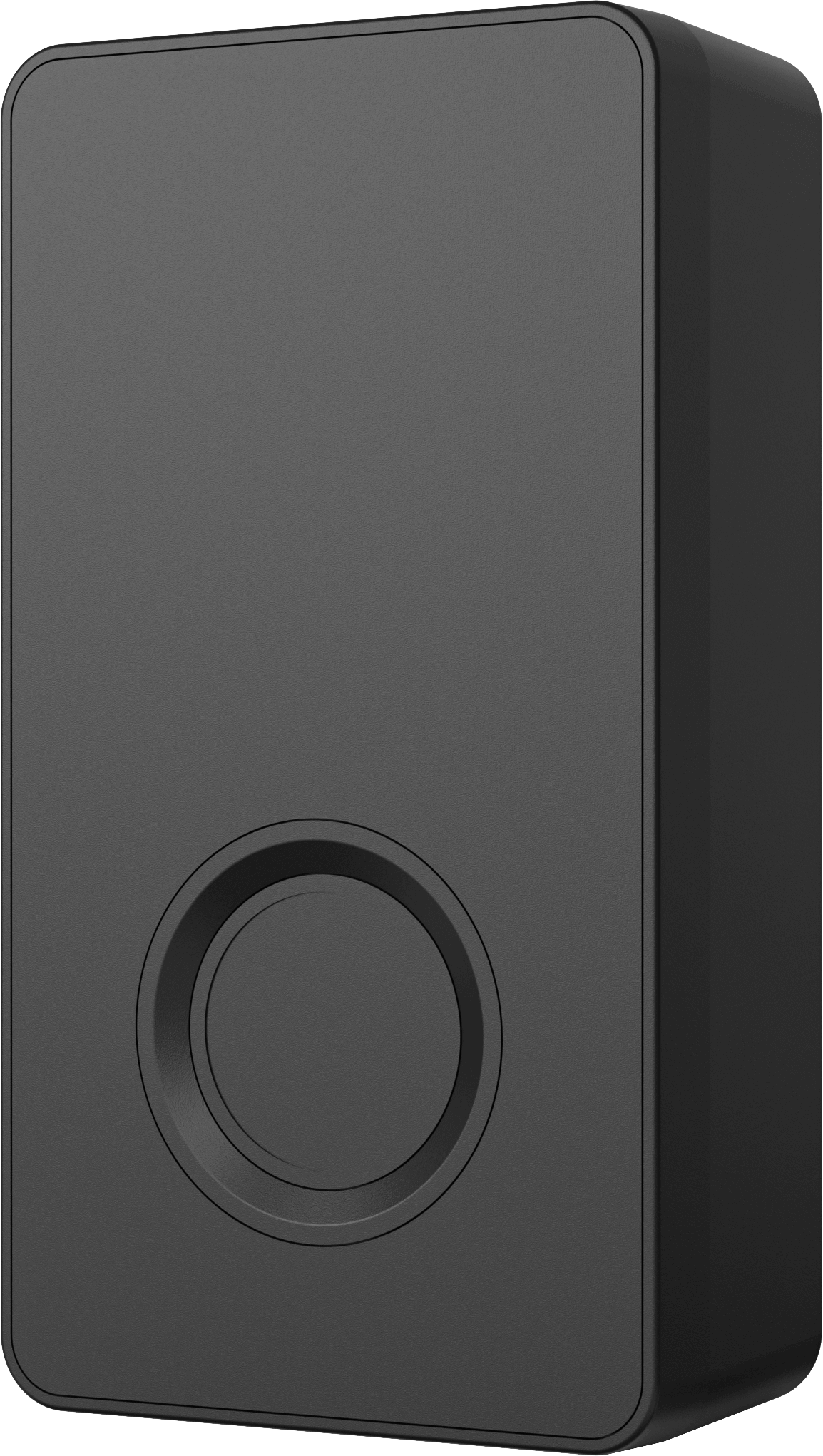

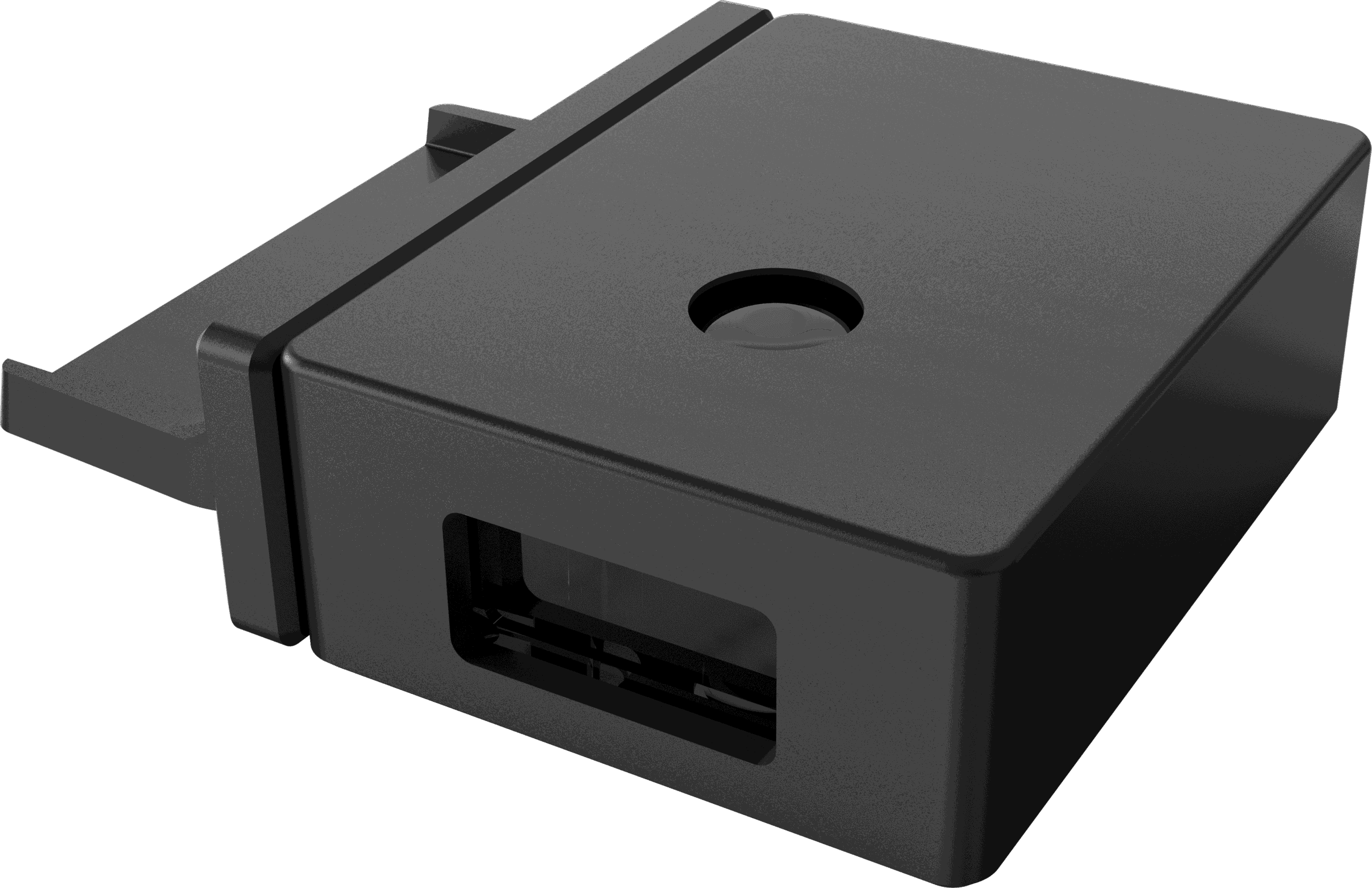

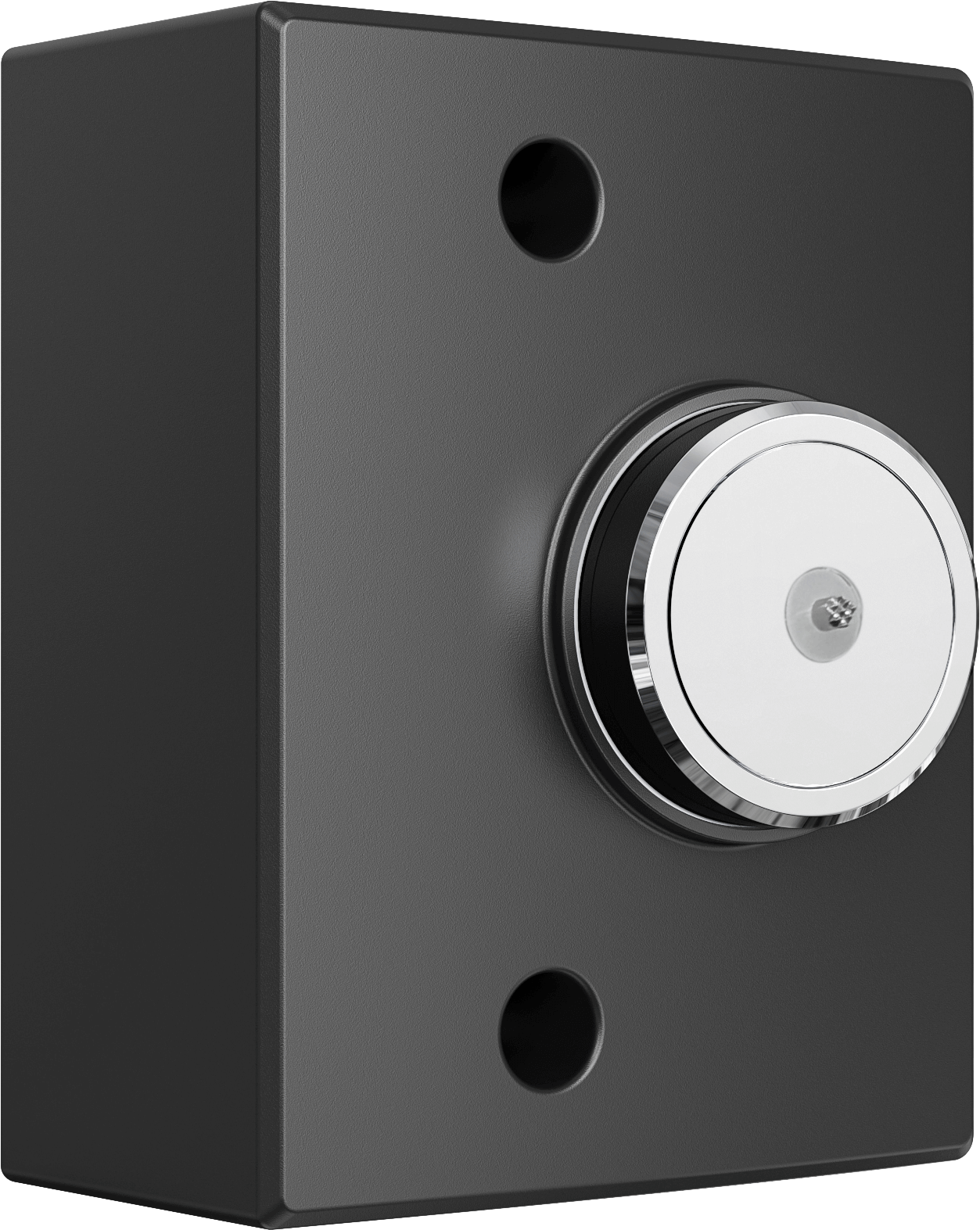

Support MSR, Fingerprint Reader, RFID Reader, iButton, 2D Scanner and more. M3 adapts to different applications with flexible peripheral integration. Built to scale with your business needs.
see it in action
specifications
|
technical specifications
|
|||||||
| Processors |
Intel® N95 (6M Cache, up to 3.40GHz) Intel® Core i3-1215U (10M Cache, up to 4.40GHz) Intel® Core i5-1235U (12M Cache, up to 4.40GHz) |
||||||
| Memory | 8GB Standard, DDR4 2666MHZ(Max. 32GB) | ||||||
| Storage | 256G Standard, M.2 2280 D2-M(Max. ITB) | ||||||
| Operating Systems | Windows 10 / Windows 11 / Linux | ||||||

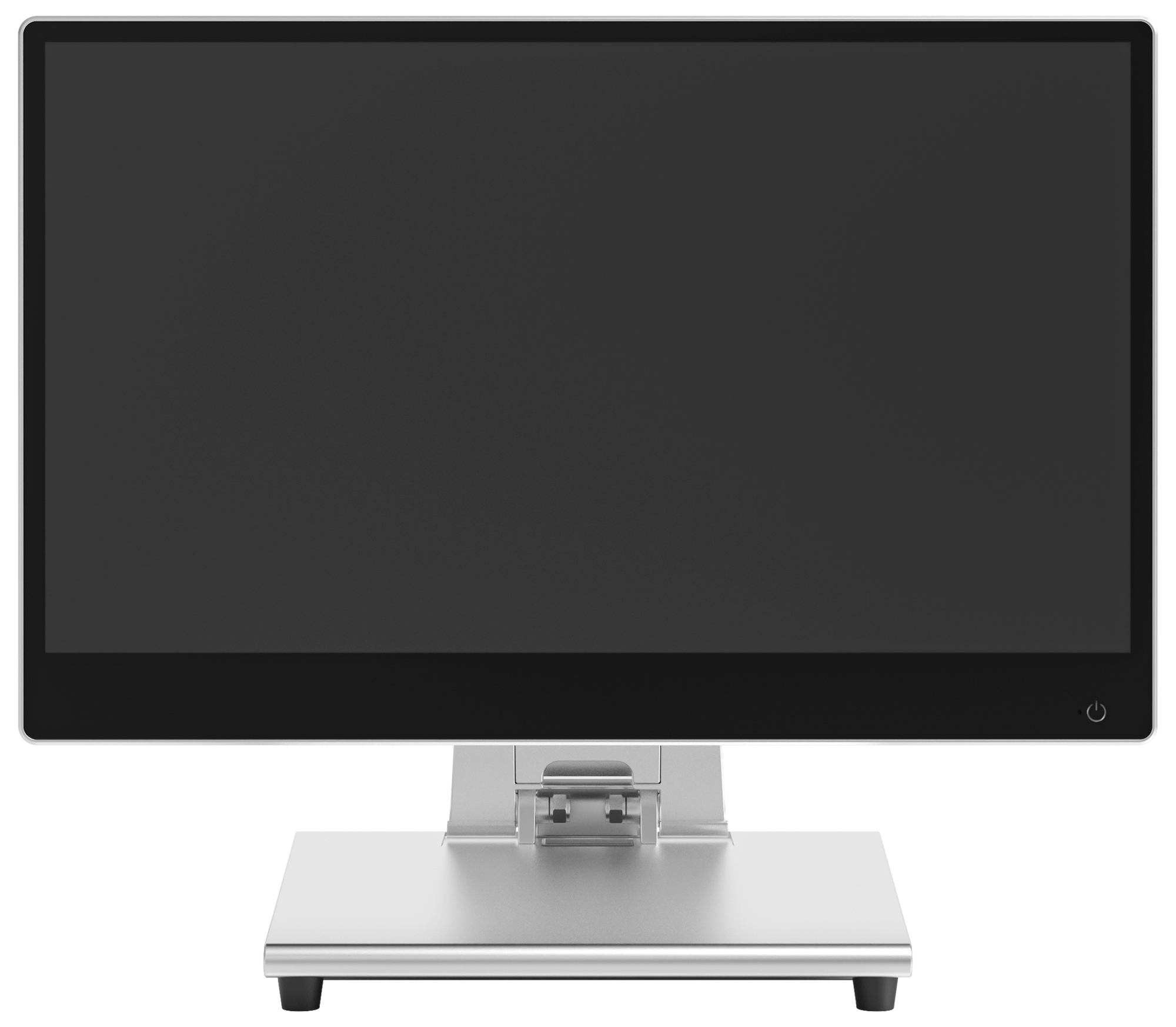

| LCD | 15" TFT LCD/15.6" FHD IPS LCD | ||||||
| Resolution | 1024x768(15")/1920x1080(15.6") | ||||||
| Brightness | 350 nits (15’’)/250 nits(15.6’’) | ||||||
| Touch | 10-points Projected Capacitive Touch | ||||||
| Customer Display |
VFD, 20 Columns x 2 Lines 9.7" 2nd display(1024x768). 11.6" 2nd display(1920x1080) Optional Touchscreen |
||||||
| Peripherals |
RFID Reader(USB) 2D Barcode Scanner(USB) Fingerprint Reader(USB) Dallas i-Button Reader(USB) Magnetic Stripe Reader(USB,Support 1&2&3 Track) |
||||||
| Wall Mount&Pole Mount | VESA-Compatible,Support both 75 x 75(mm) and 100 x100(mm) | ||||||
| Speaker | 2 x 2W(Stereo) | ||||||
| WIFI/BT | 802.11a/b/g/n/ac,802.11ax optional/BT4.0 | ||||||

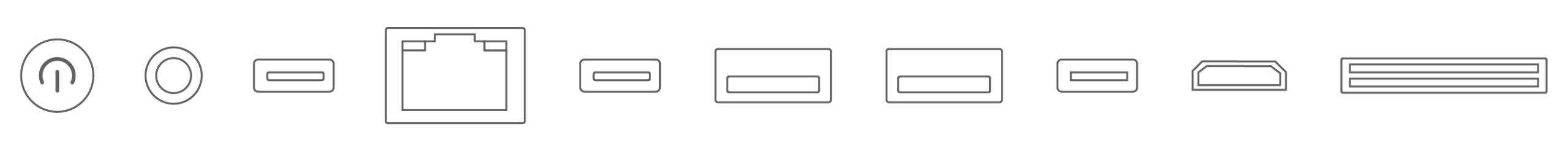

| 1/O Ports | USB-C
Manual switch Audio (Extension Box) LAN USB-C USB 3.0 USB 3.0 DP Mini-HDMI NVMe SSD |
||||||
| Expansion BoX |
|
||||||
