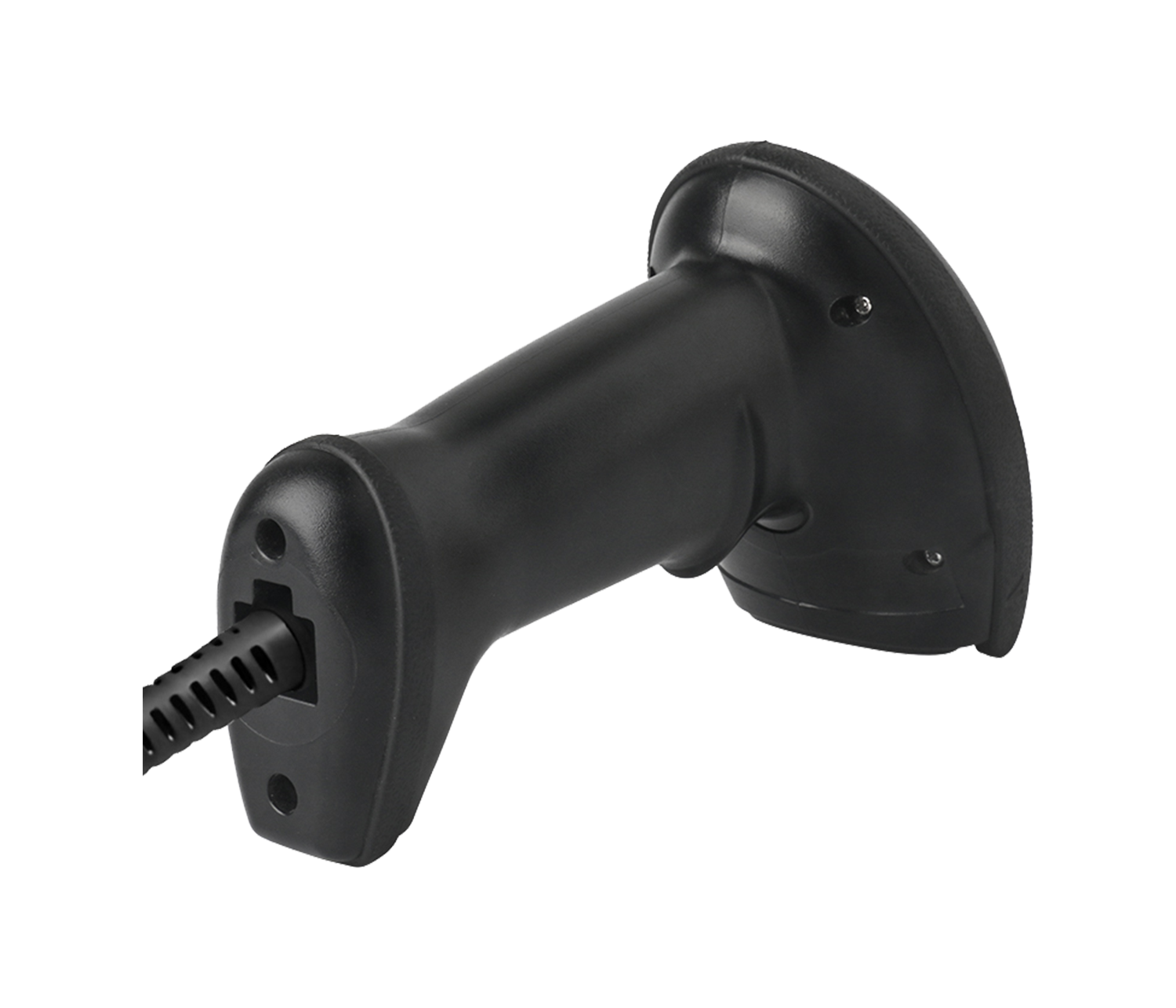

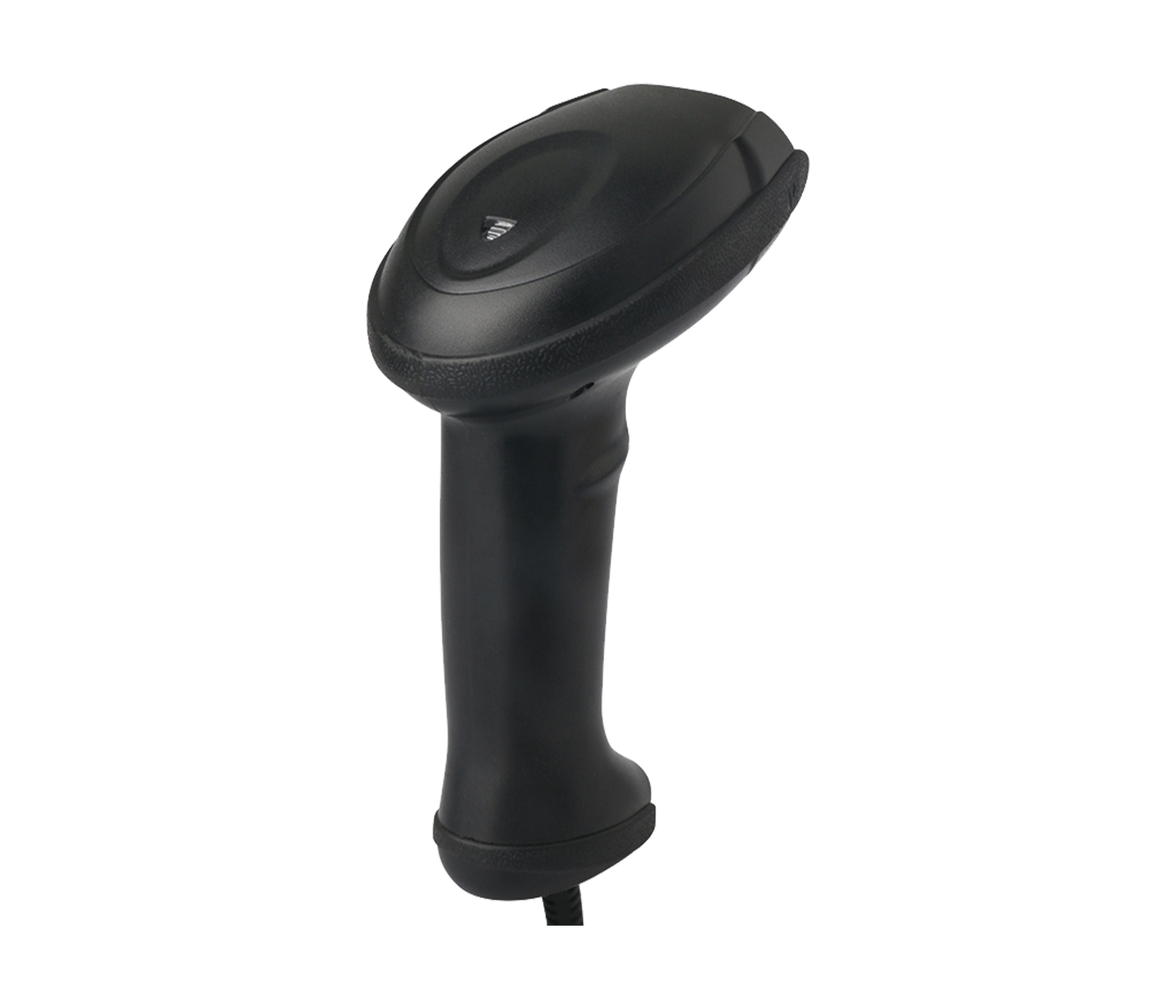

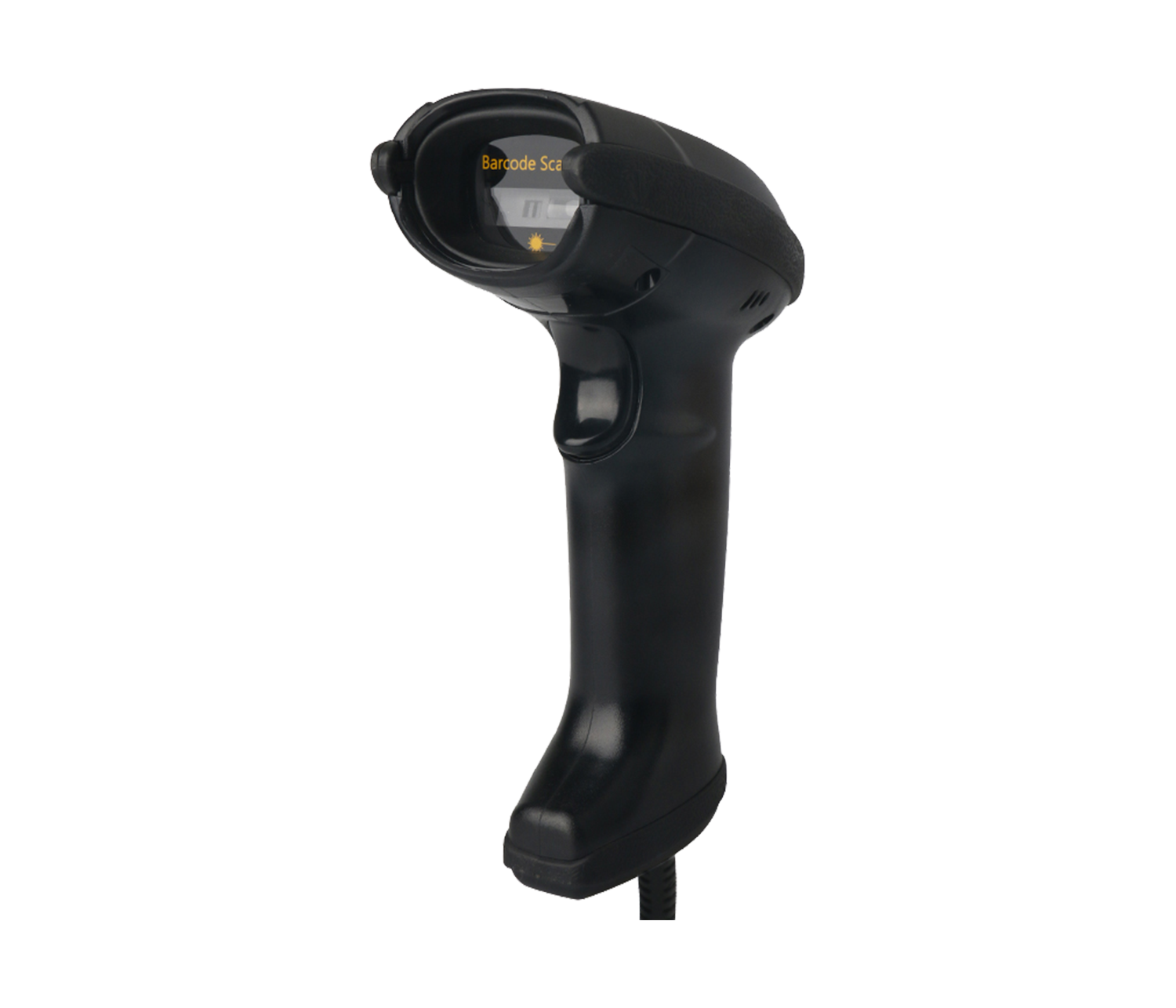

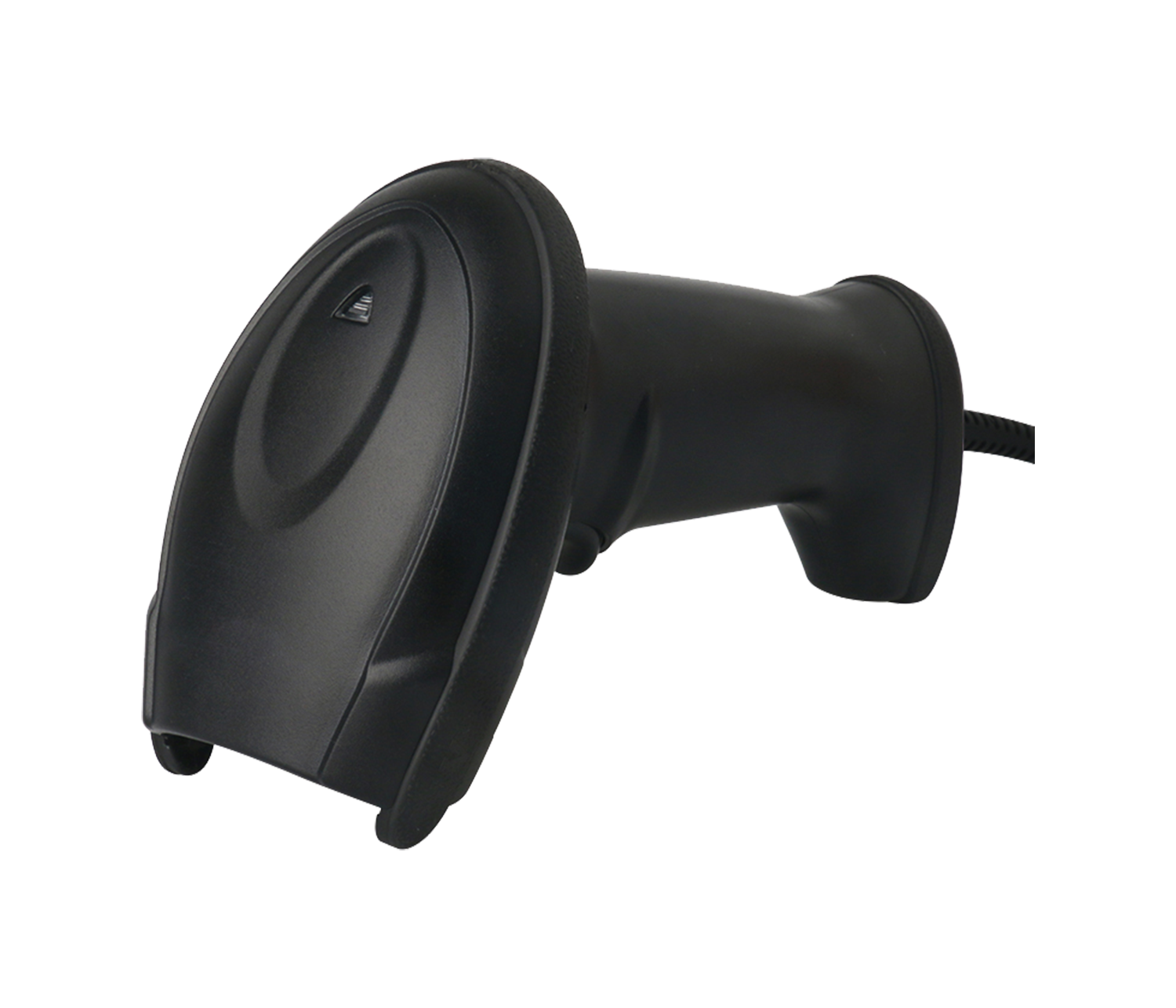

DS5909-2D Handheld Scanner
DS5909-2D is a high-performance 2D handheld barcode scanner with leading CMOS image recognition technology. It can easily read the paper, goods, screen and other media barcodes. Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.
Features
CMOS
1D Barcode
2D Barcode
USB
RS232
1.8m
IP52
APPLICATION SCENARIO
Supermarket
Warehouse
Mobile payment
Retail chain
Courier
Health care
specifications
|
PHYSICAL PARAMETER
|
|||
| Weight | ≈228 with cable | ||
| Dimension | L175mm * W72mm * H100mm | ||
| Communication Mode | USB(USB-KBW, USB-COM)、RS232 | ||
| Interface Type | USB、DB9 | ||
| Power Supply | DC 5V@120mA(work) | ||
|
PERFORMANCE
|
|||
| Scan Type | CMOS | ||
| Light Source | lighting white LED Aiming: Green LED, wavelength coverage 525nm | ||
| CPU | ARM32-bit | ||
| Resolution | 640×480 CMOS(global exposure) | ||
| Resolution | 1D: ≥5mil, 2D: ≥8.7mil @PCS90% | ||
| Start up time | 4s | ||
| Decoding speed | 25CM/s | ||
| Depth of field | 20-550mm | ||
| Scan Mode | Trigger mode, Auto sense mode | ||
| Scan angle | Roll: ±360°, Pitch: ±60°, Yaw: ±70° | ||
| Visual angle | Horizontal 40°× Vertical 30° | ||
| Resolution | Print Contrast Signal | ||
| Ambient Light | Dark environment, indoor natural light | ||
| Symbolologies | ID: Codabar, Code39, Code32, Interleaved 2 of 5 (ITF25), Industrial 2 of 5, Matrix 2 of 5, Code93, Code11, Code128, Gs1-128, UPC-A, UPC-E, EAN/JAN-8, EAN/JAN-13, ISBN, ISSN, GS1 databar, GS1 databar limited, GS1 databar expanded 2D: PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec | ||
|
ENVIRONMENTAL
|
|||
| Operating | -20℃ to 50℃ | ||
| Storage | -40℃ to 70℃ | ||
| Humidity | 5% to 95%(non-condensing) | ||
| Drop Height | 1.8m | ||
| Temp. Test | 30 minutes for high Temp, 30 minutes for low Temp. | ||
| High Temp | 60℃ | ||
| Low Temp | -20℃ | ||
| Transport | 10H@125RPM | ||
