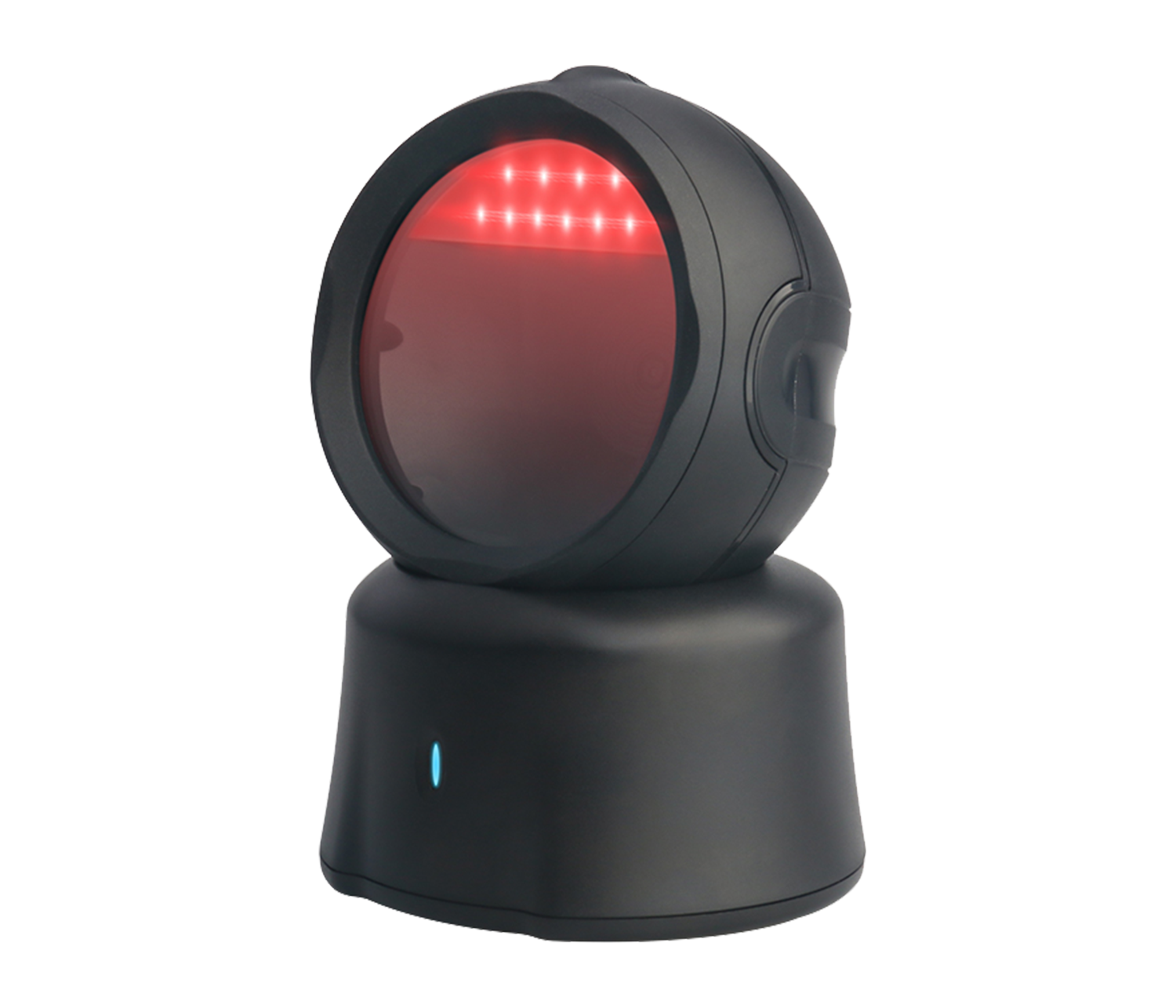

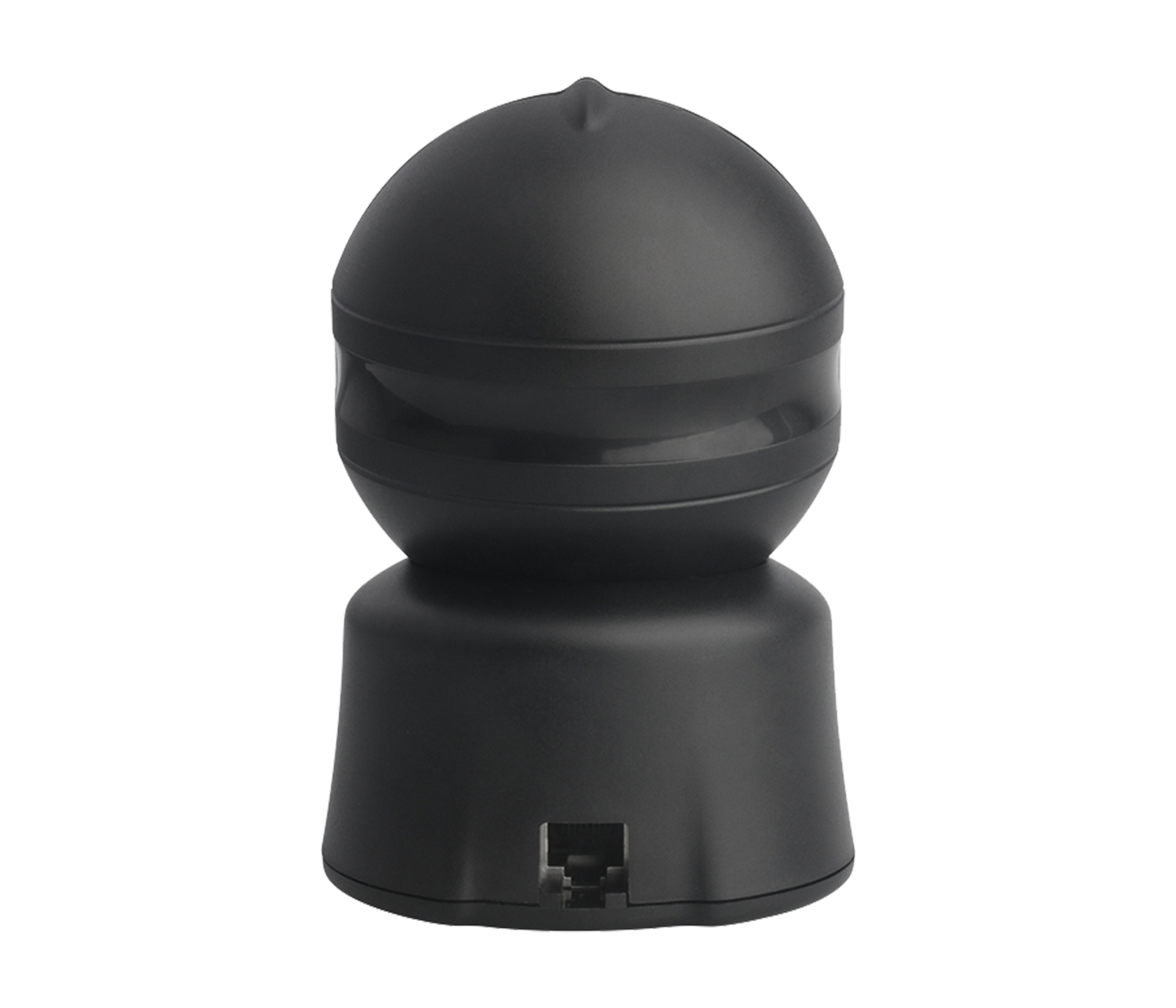

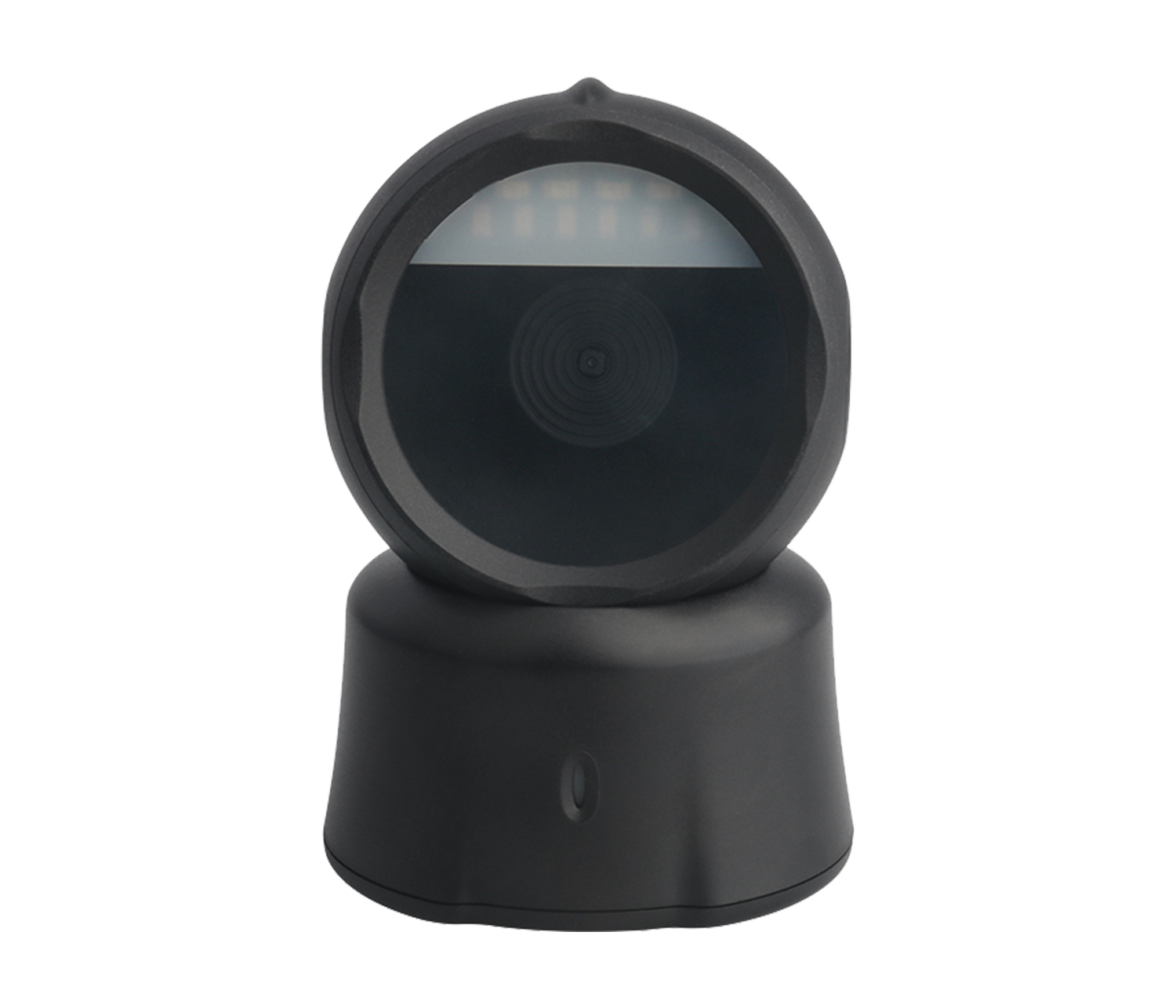

DP8210 2D Desktop Scanner
DP8210 is a desktop 2D image scanning platform, using advanced CMOS Image recognition technology, intelligent image recognition system.DP8210 scanning platform, with its compact and modern design and powerful imaging function, can be used in high-flow retail cashier environment and it's suitable for large supermarkets, department stores,convenience stores, drugstores, tobacco hotels and grocery stores.
Features
CMOS
1D Barcode
2D Barcode
USB
RS232
1.8m
IP52
APPLICATION SCENARIO

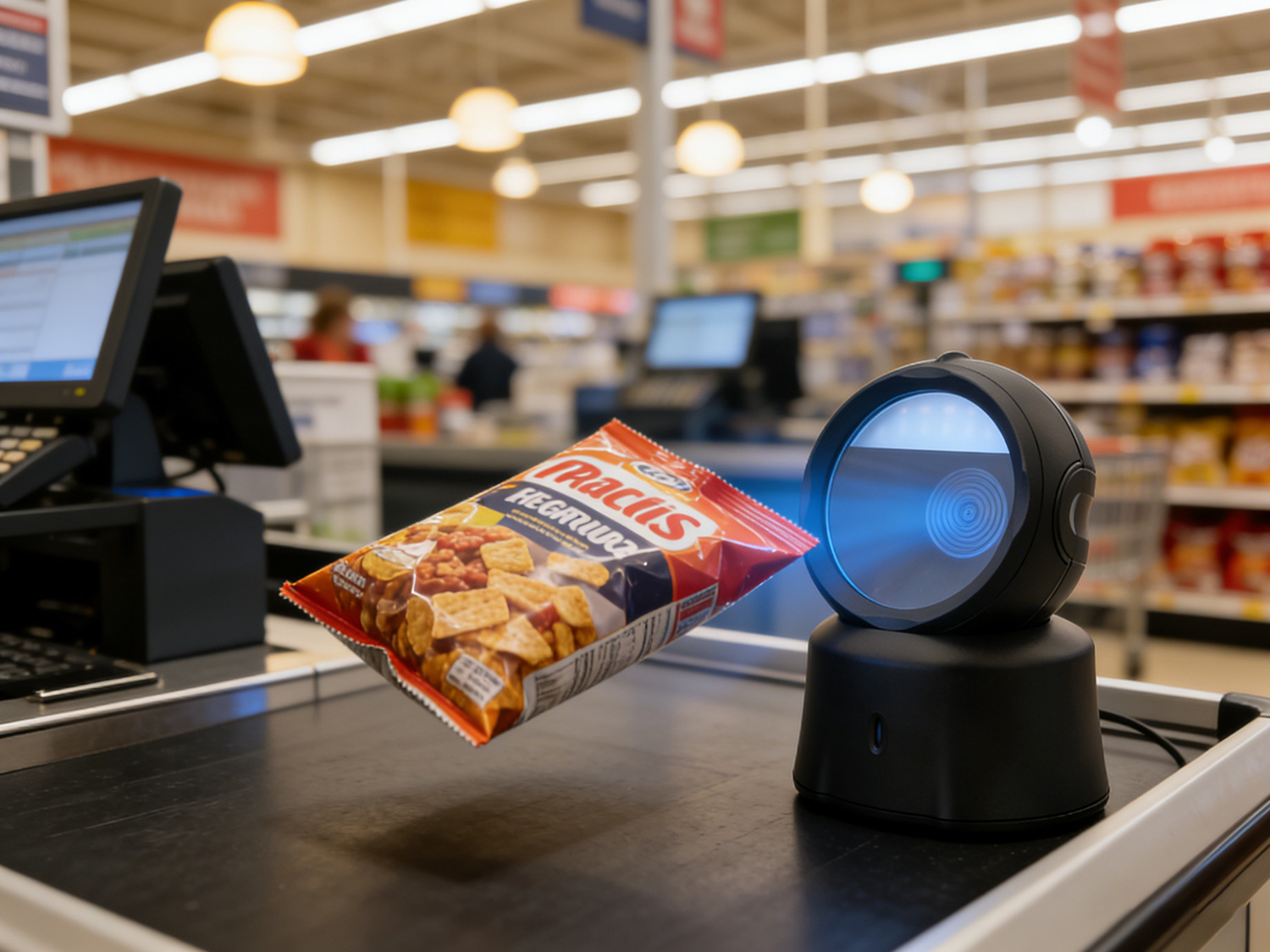

Supermarket

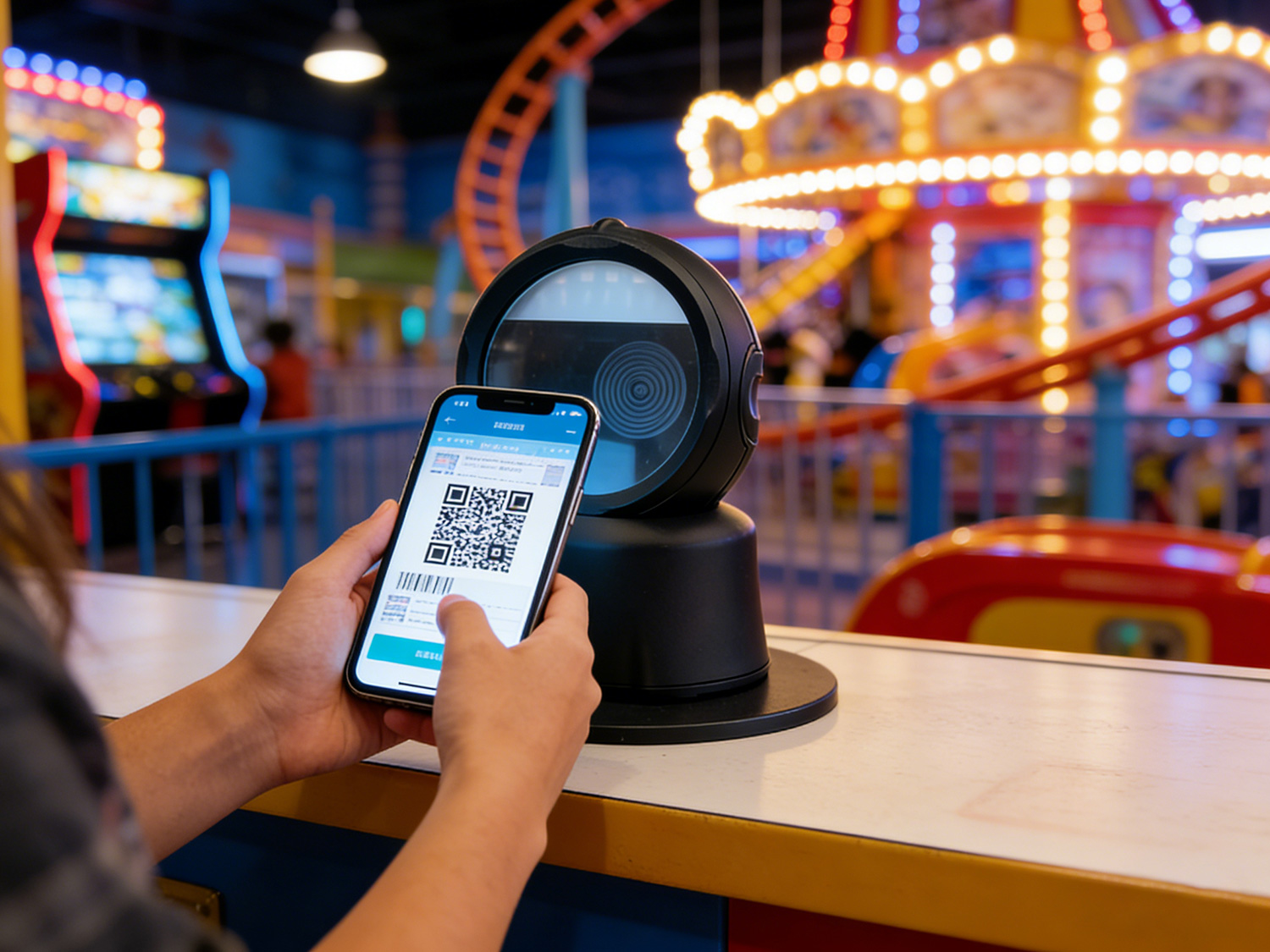

Entertainment

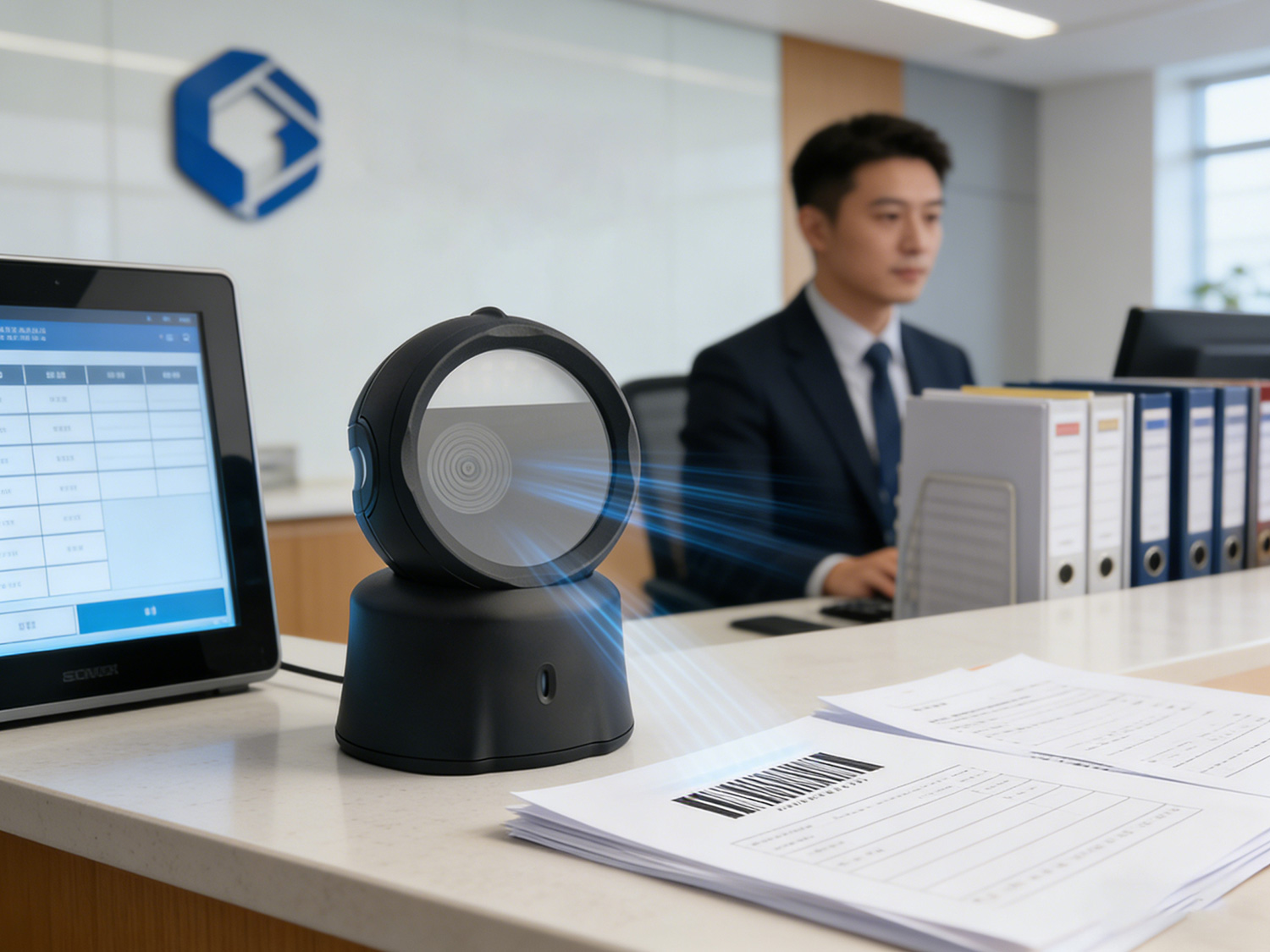

Documentation

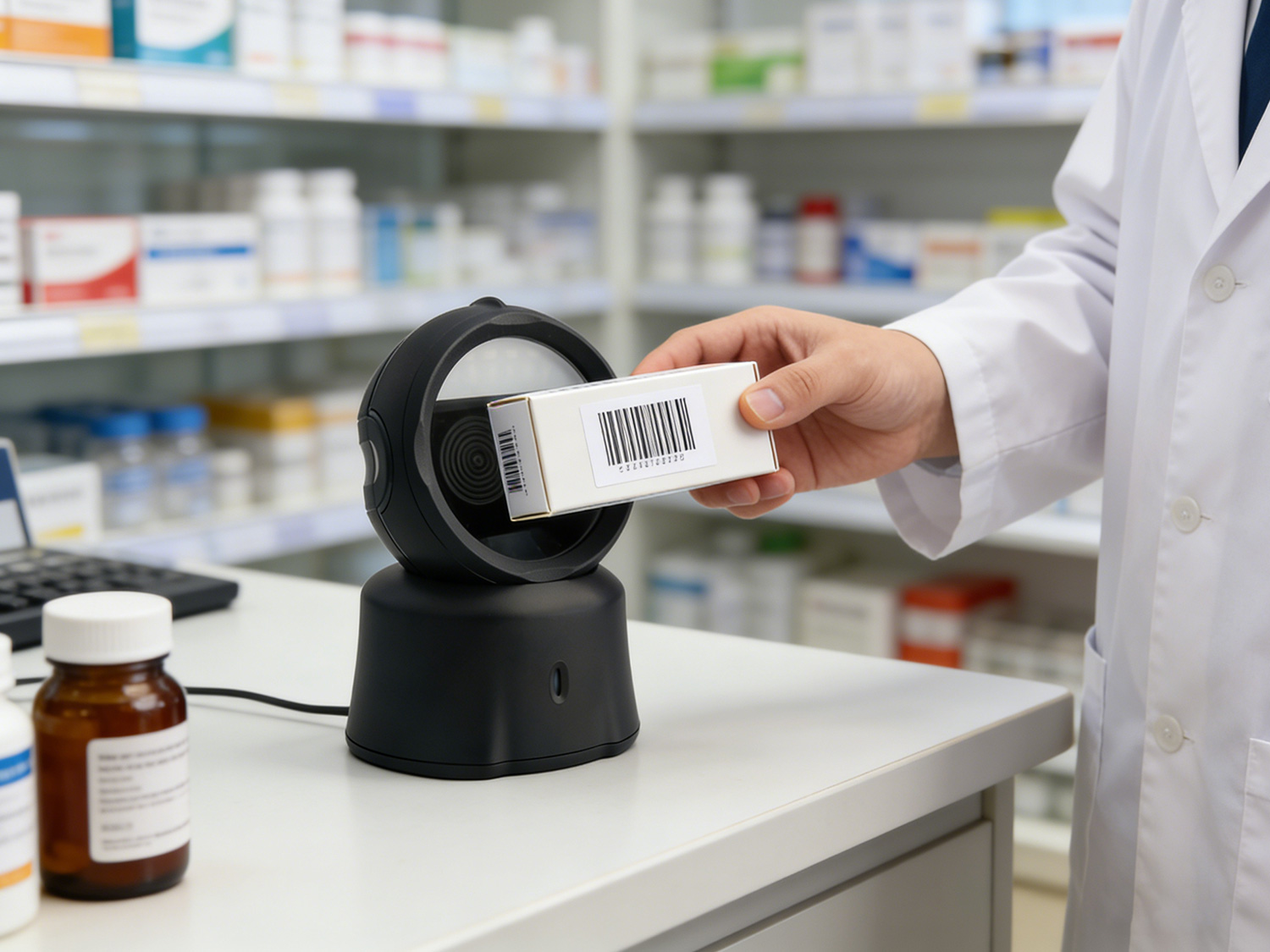

Healthcare
specifications
|
PHYSICAL PARAMETER
|
|||
| Weight | ≈270g (without cable) | ||
| Dimension | L86.7mm * W96.7mm * H43.6mm | ||
| Communication | USB(USB-KBW, USB-COM), RS232 | ||
| Cable length | 1.8m | ||
| Power Supply | DC 5V@280mA(work) | ||
|
ACCESSORIES LIST
|
|||
| Cable | USB Cable, used to connect the DP8210 to a host device | ||
| RS232 Cable, used to connect the DP8210 to a host device, with USB supply cable | |||
|
PERFORMANCE
|
|||
| Scan Type | CMOS | ||
| Light Source | Red light | ||
| Pixel | 640*480 | ||
| Resolution | ≥5mil/0.127mm(PCS90%,CODE 39) | ||
| Decoding speed | 100CM/s | ||
| Depth of field | 0-380mm | ||
| Scan Mode | Continuous, Auto sense | ||
| Scan angle | Roll: ±360°, Pitch: ±65° or greater, Yaw: ±60° Horizontal 41°× Vertical 31° | ||
| Print Contrast Signal | ≥25% | ||
| Symbologies |
ID: UPC-A, UPC-E, EAN-8, EAN-13, Code128, GS1-128, Code 39, Code32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Standard 2 of 5(IATA 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), China Post, Tepepen, GS1 Composite etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Chinese ID Card OCR, etc |
||
