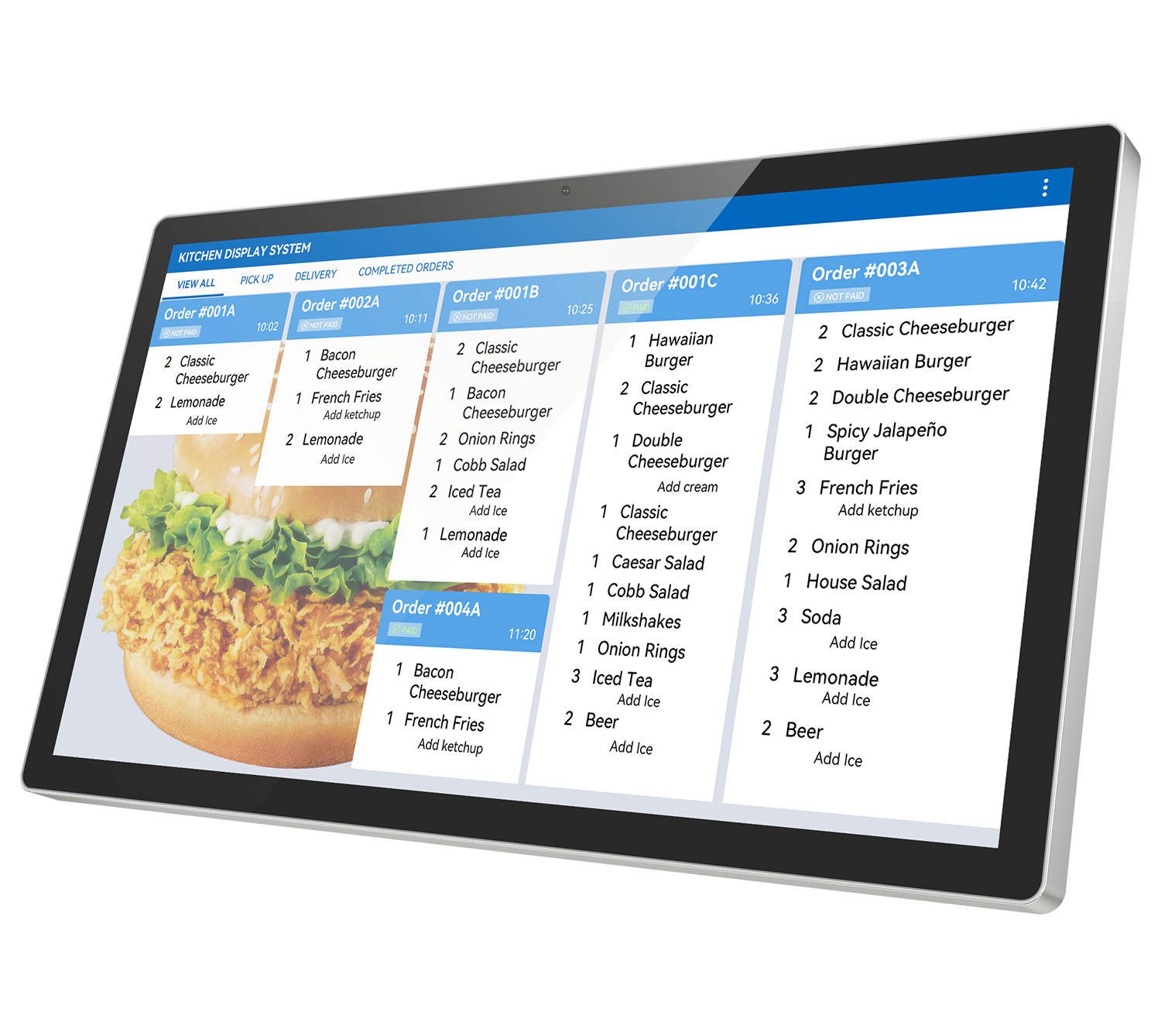

kds-n6
Designed for demanding kitchen environments, this KDS is built to perform reliably under heat, humidity, and constant use.With durable material options, anti-collision edge design,and easy-to-clean surfaces, it ensures long-term stability and efficiency in busy commercial kitchens.
features
Anti-Fingerprint
MULTI-PLATFORM SUPPORT
Supporting both Android and Windows systems, with up-to-date hardware to meet diverse integration and software needs.Providing flexibility for different deployment scenarios.

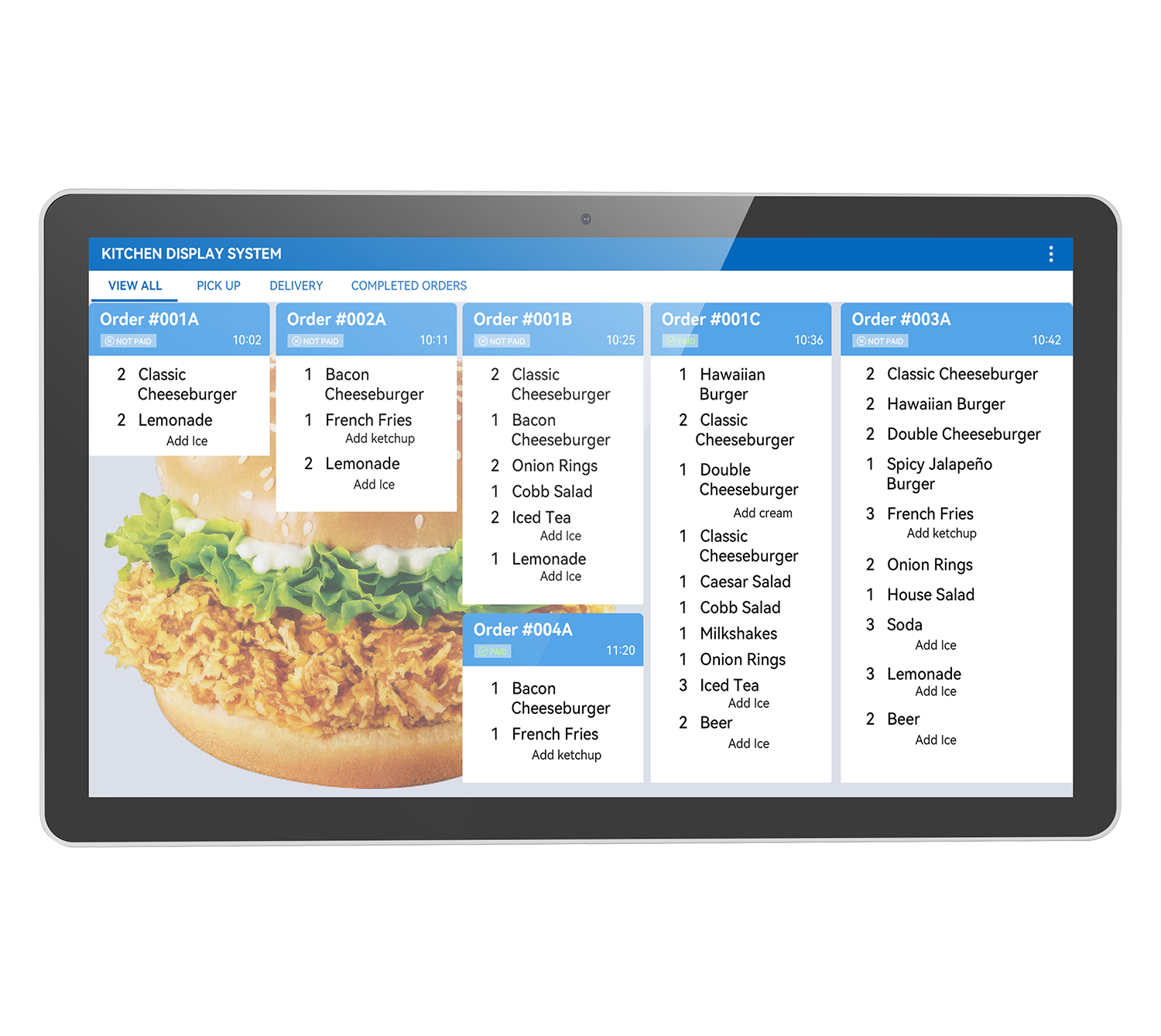

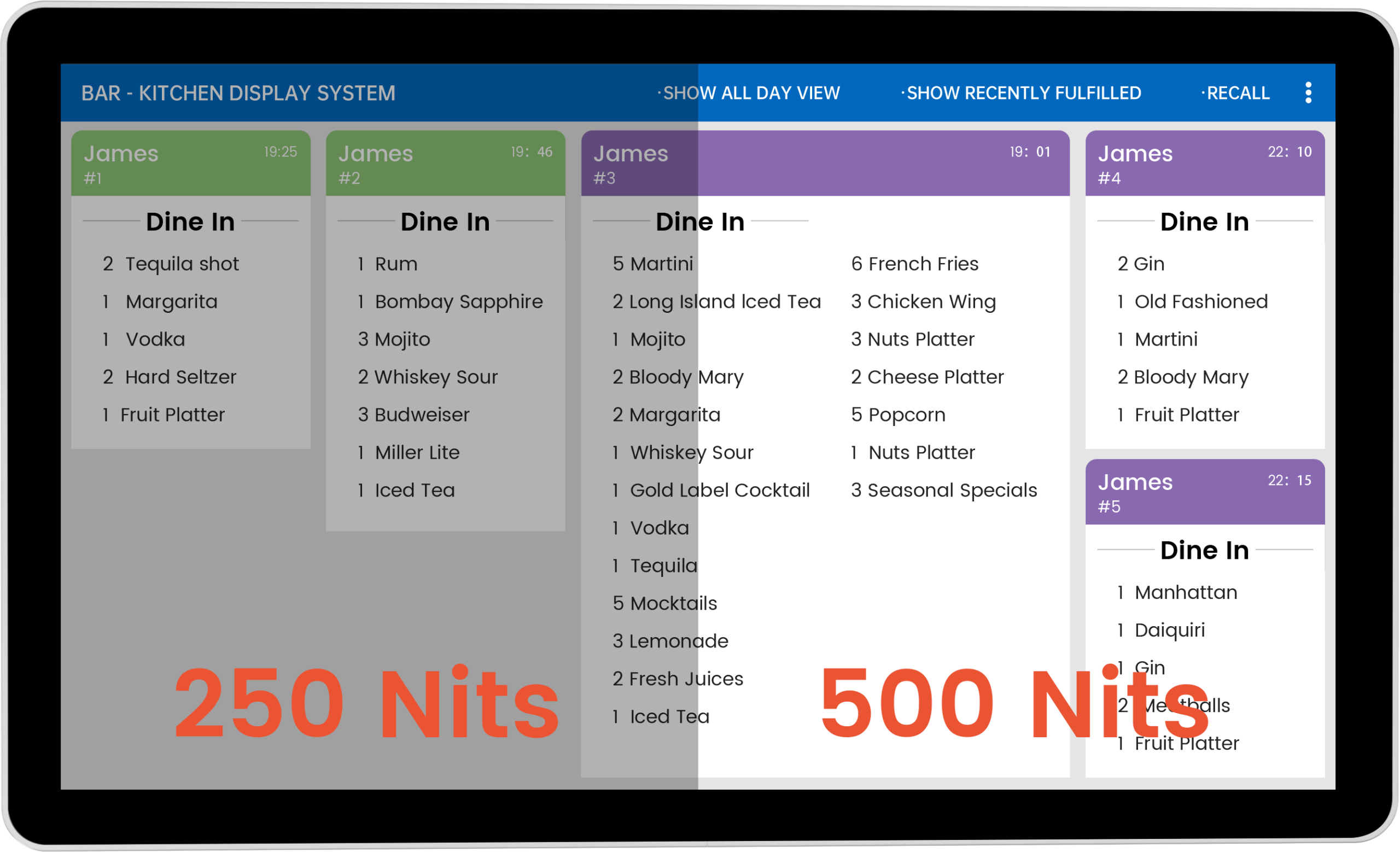

HIGH DISPLAY PERFORMANCE
With up to 500 nits of brightness, the display maintains clear readability under strong kitchen lighting, steam, and reflective surfaces. Supporting accurate order processing during peakservice hours.
PROTECTED BY IP65 FRONT SEALING
With an IP65-rated front panel and IP54-rated rear housing, the system is designed to withstand water splashes, grease,and frequent cleaning from the front while maintaining overall protection. Ensuring stable and continuous operation under harsh, high-traffic conditions.

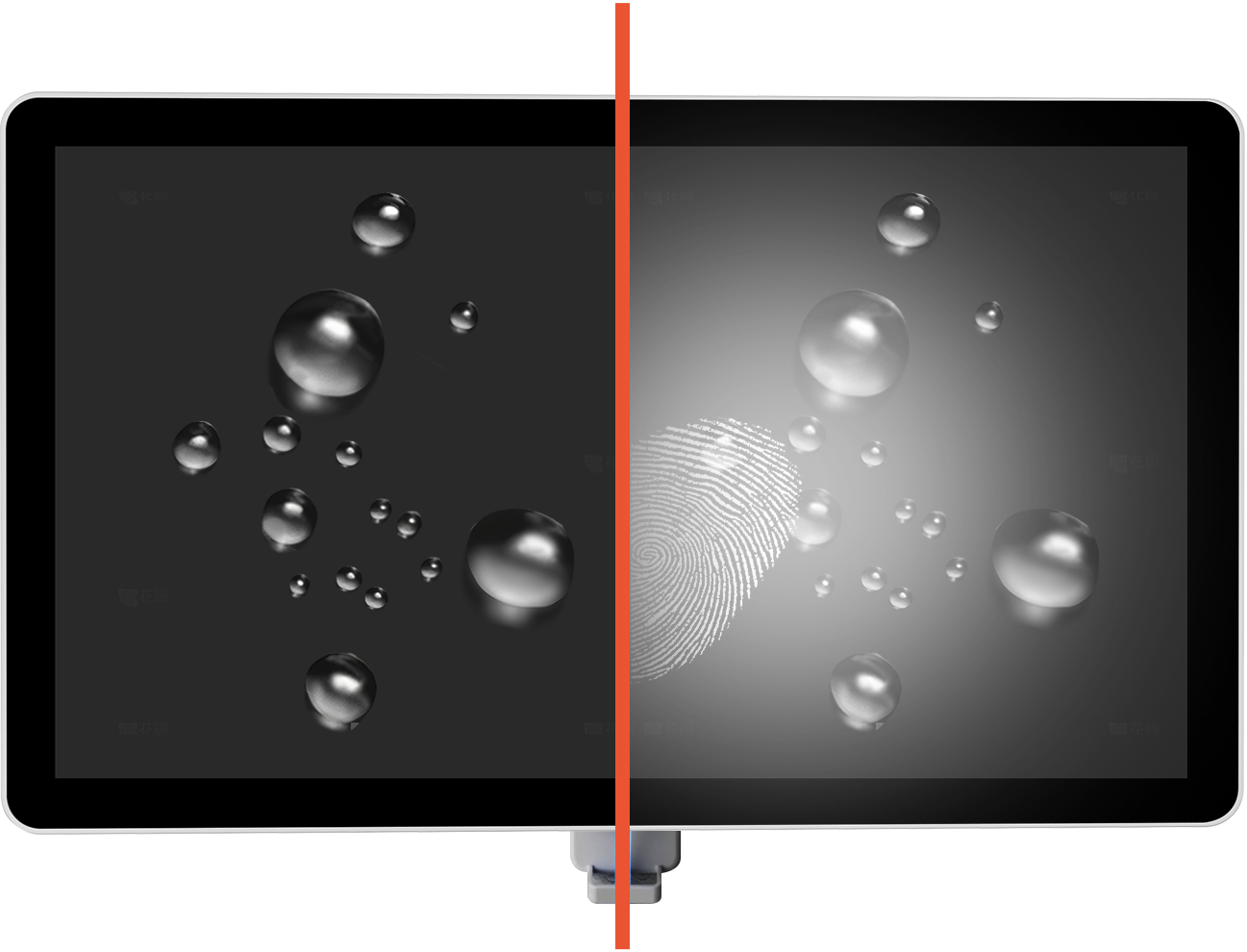

CLEAR VIEW, LESS DISTRACTION
With anti-glare and anti-fingerprint treatment, the display remains clear and responsive under strong lighting and frequent touch, reducing visual interference and ensuring smooth operation in fast-paced kitchen environments.

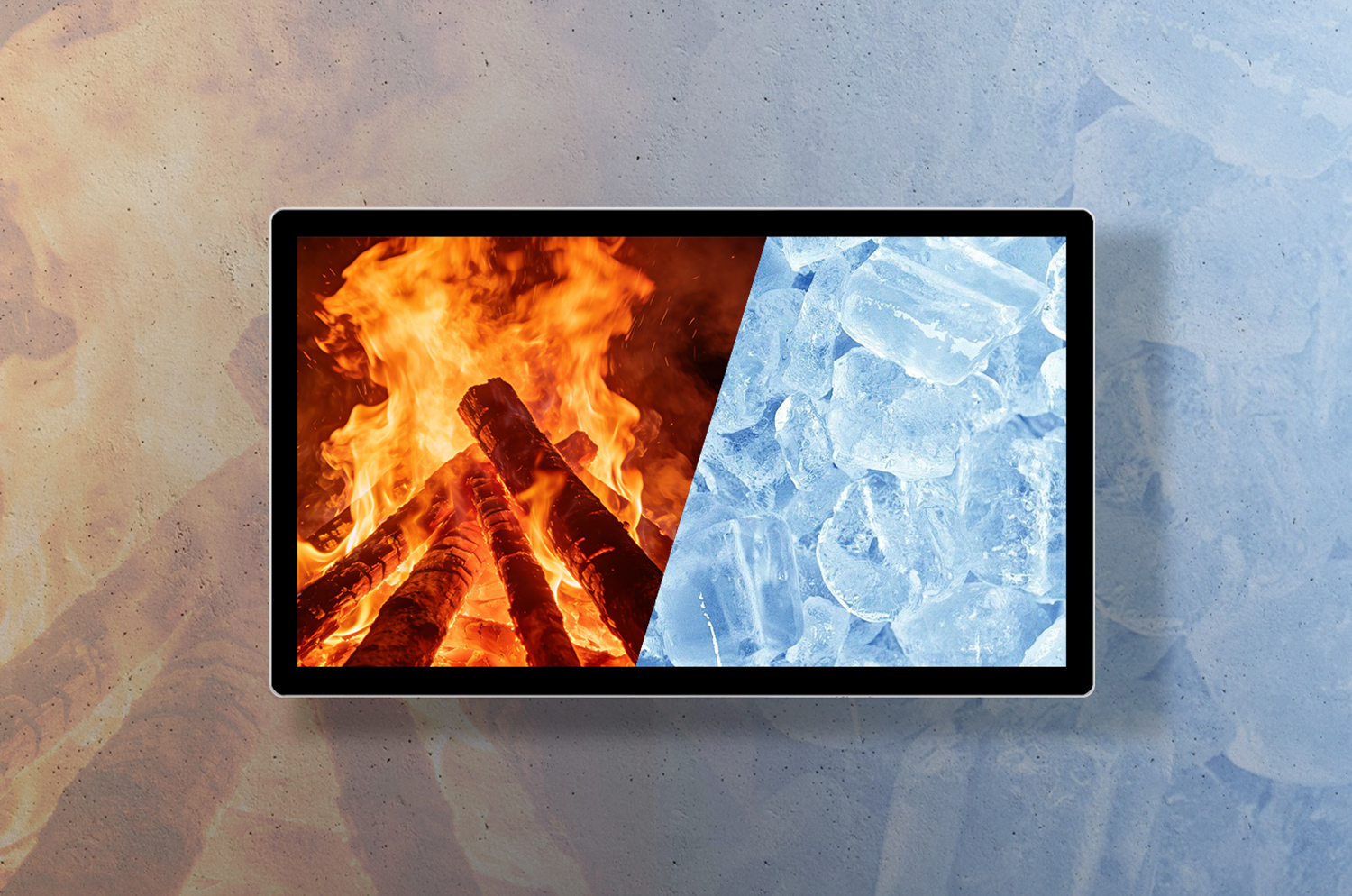

BUILT TO WITHSTAND TEMPERATURE EXTREMES
Engineered with industrial-grade components, the system delivers stable and reliable performance across both high-heat and low-temperature environments, ensuring continuous operation in demanding kitchen conditions.

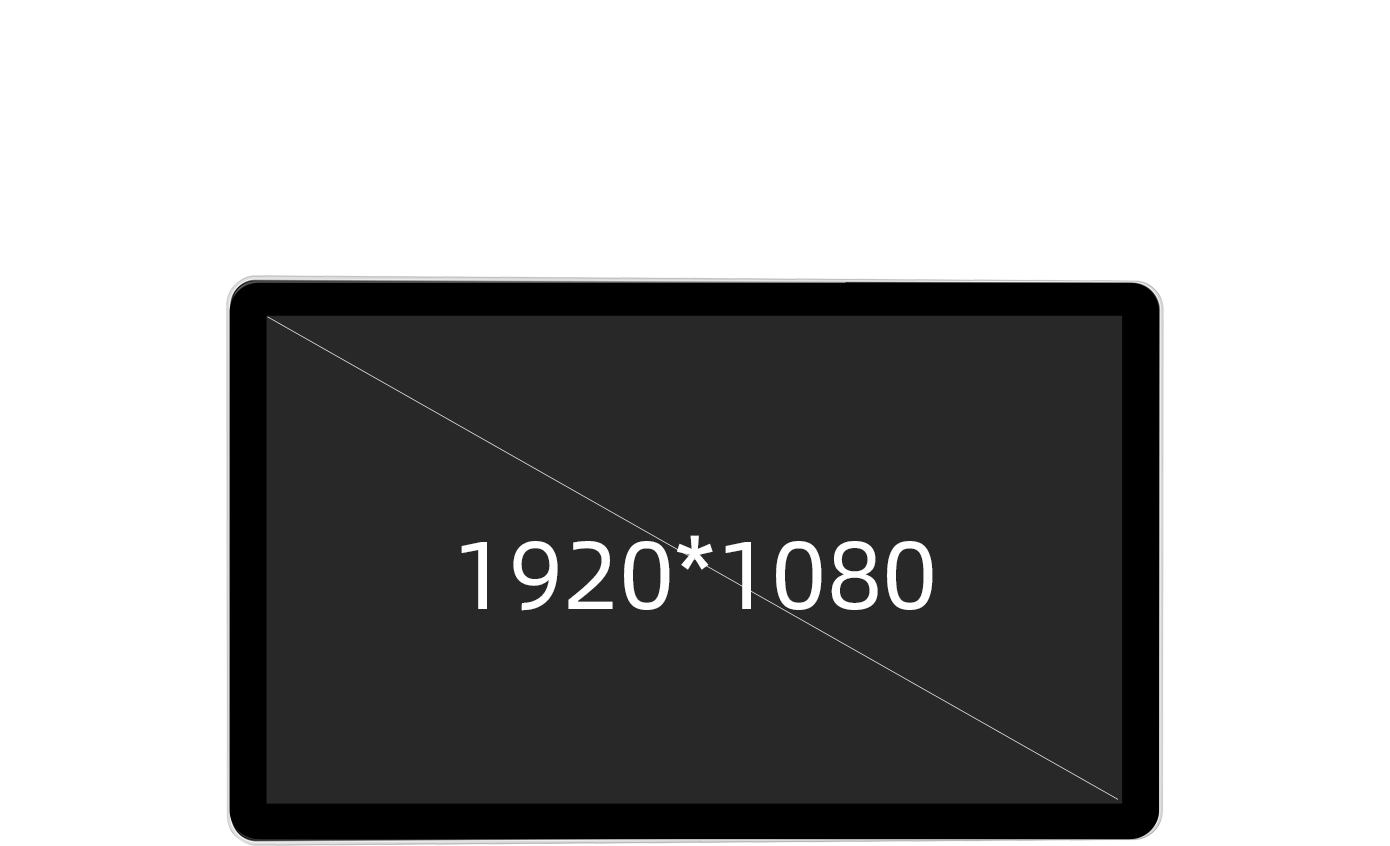

FLEXIBLE SCREEN SIZE OPTIONS
Available in 15.6'', 21.5', and 23.8" sizes to adapt to different workspace layouts and operational needs. Supporting efficient interaction, whether in compact stations or larger preparation areas.
options

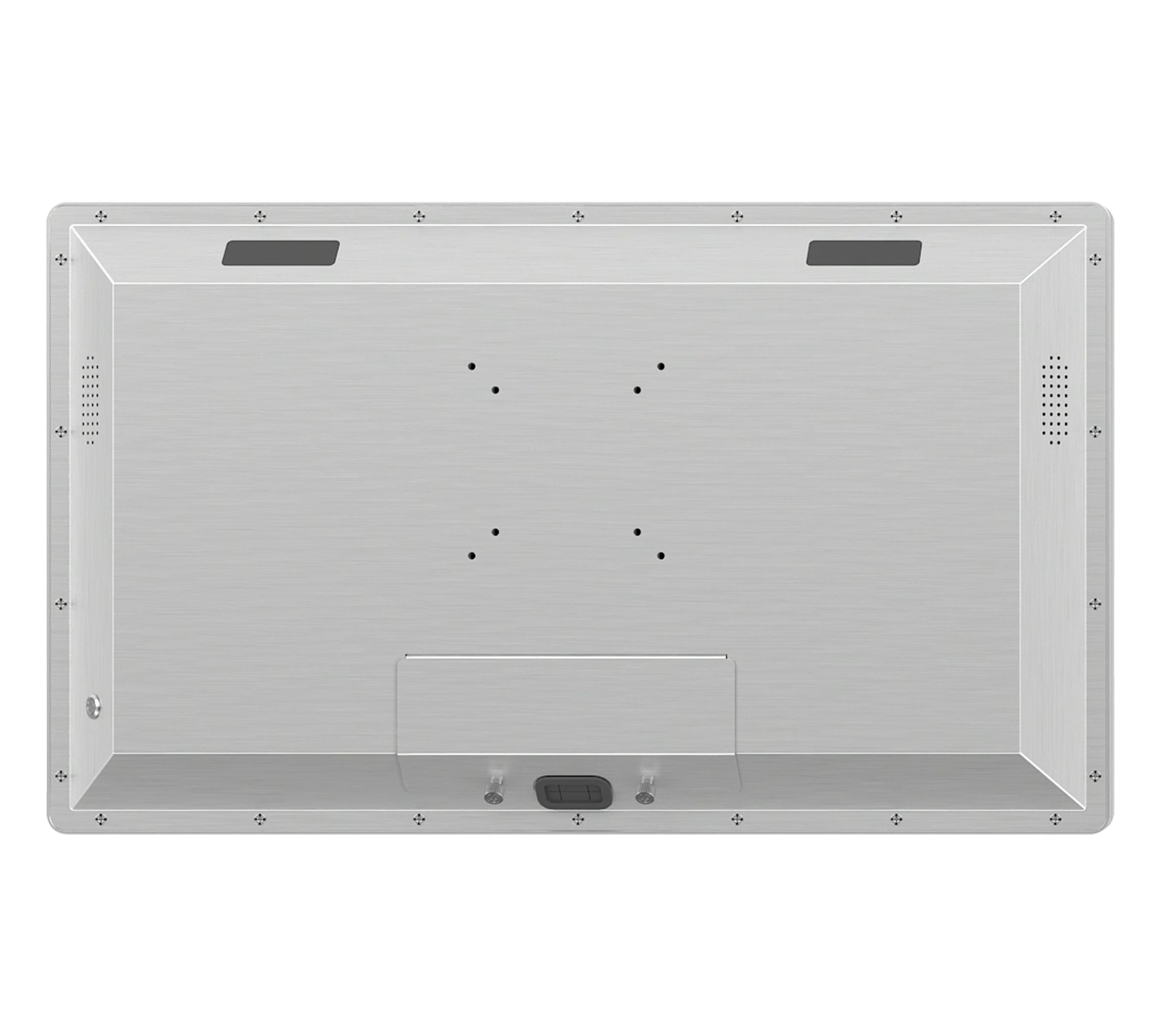

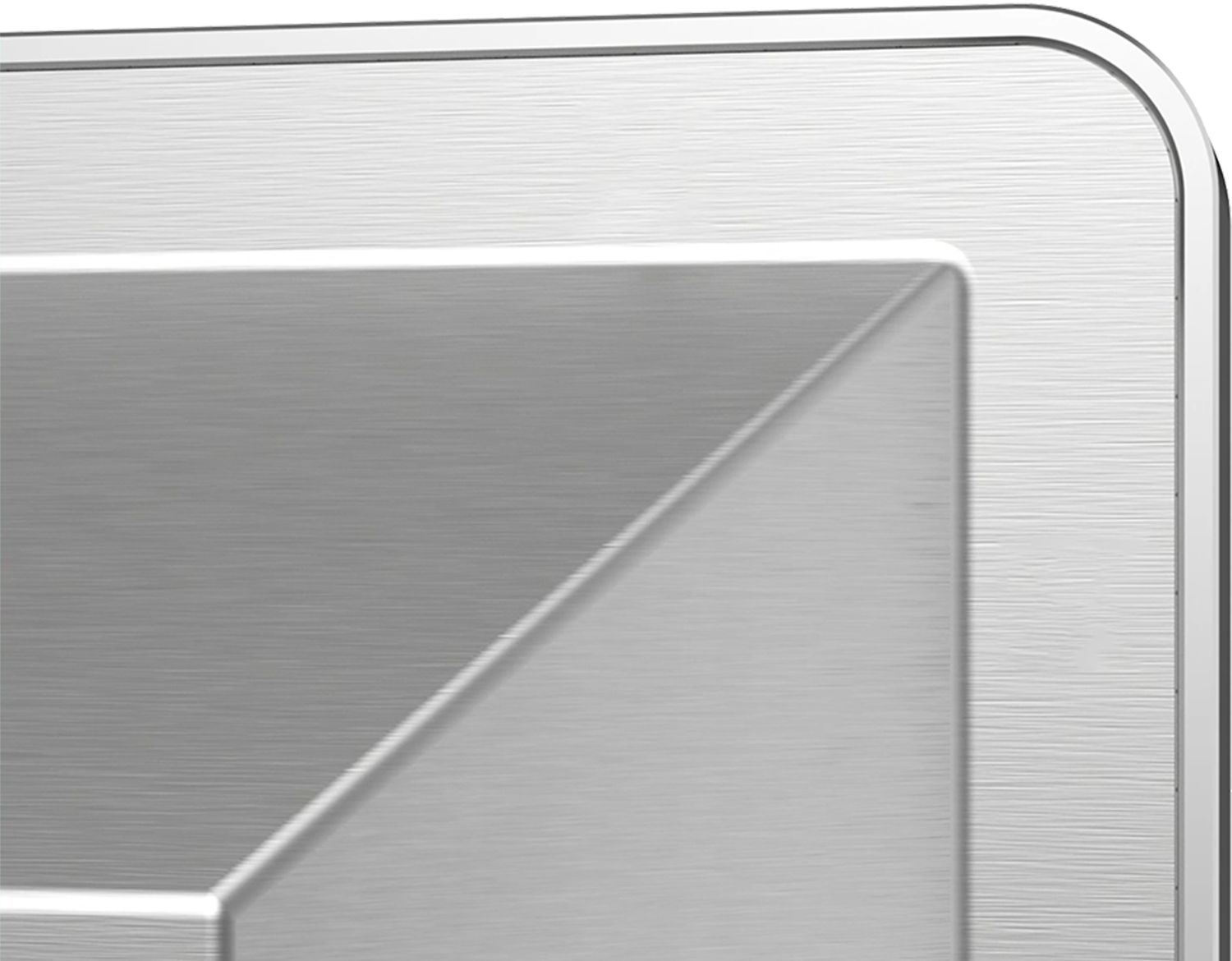

STAINLESS STEEL HOUSING
Designed for environments requiring high hygiene standards and frequent cleaning. Provides excellent resistance to corrosion and harsh cleaning conditions.
INTEGRATED POWER & DATA VIA POE
Enable stable power supply and high-speed data transmission through one unified connection,
ensuring reliable performance while minimizing cable clutter.
DC IN
RJ11
USB2.0*2
HDMI
Type-C
USB3.0*2
LAN
COM
COM
DC IN
HDMI
Type-C
USB 2.0
USB 2.0
LAN

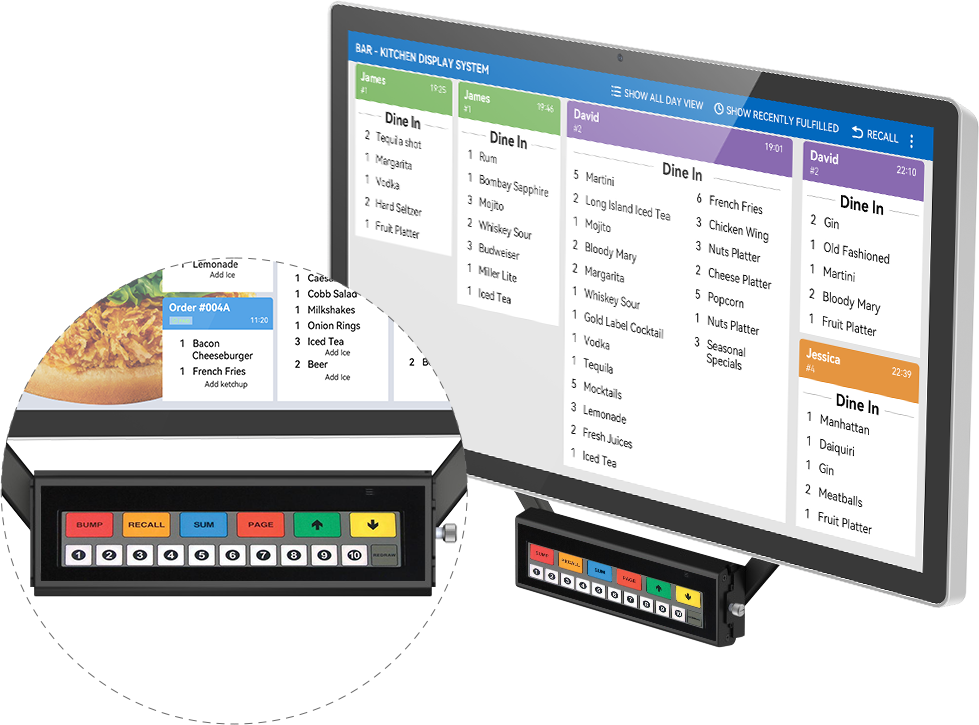

BUMP BAR CONTROL - OPTIONAL
Operate orders without touching the screen.The optional bump bar allows kitchen staff to confirm, recall, and manage orders instantly using tactile keys - even with wet orgloved hands.

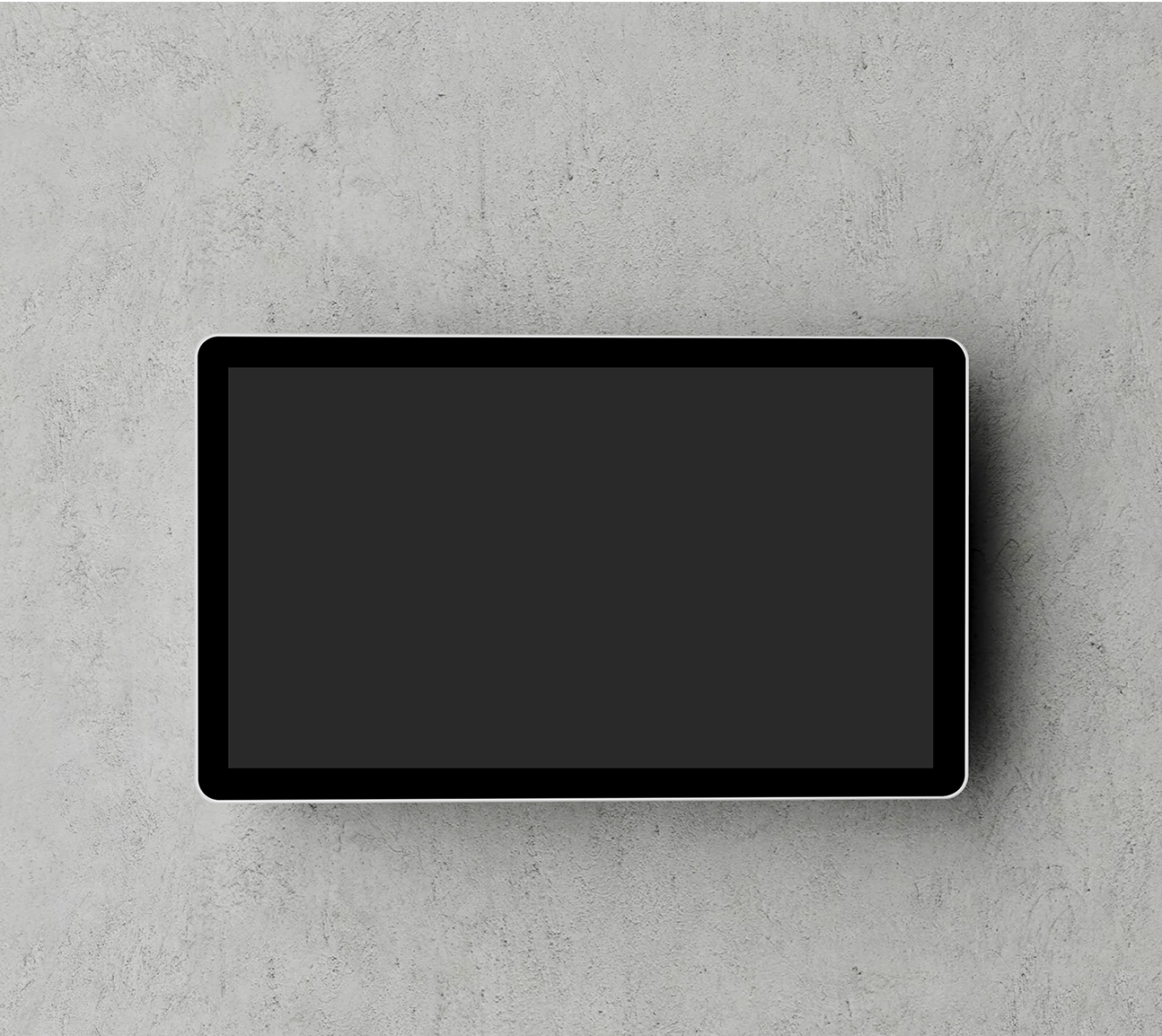

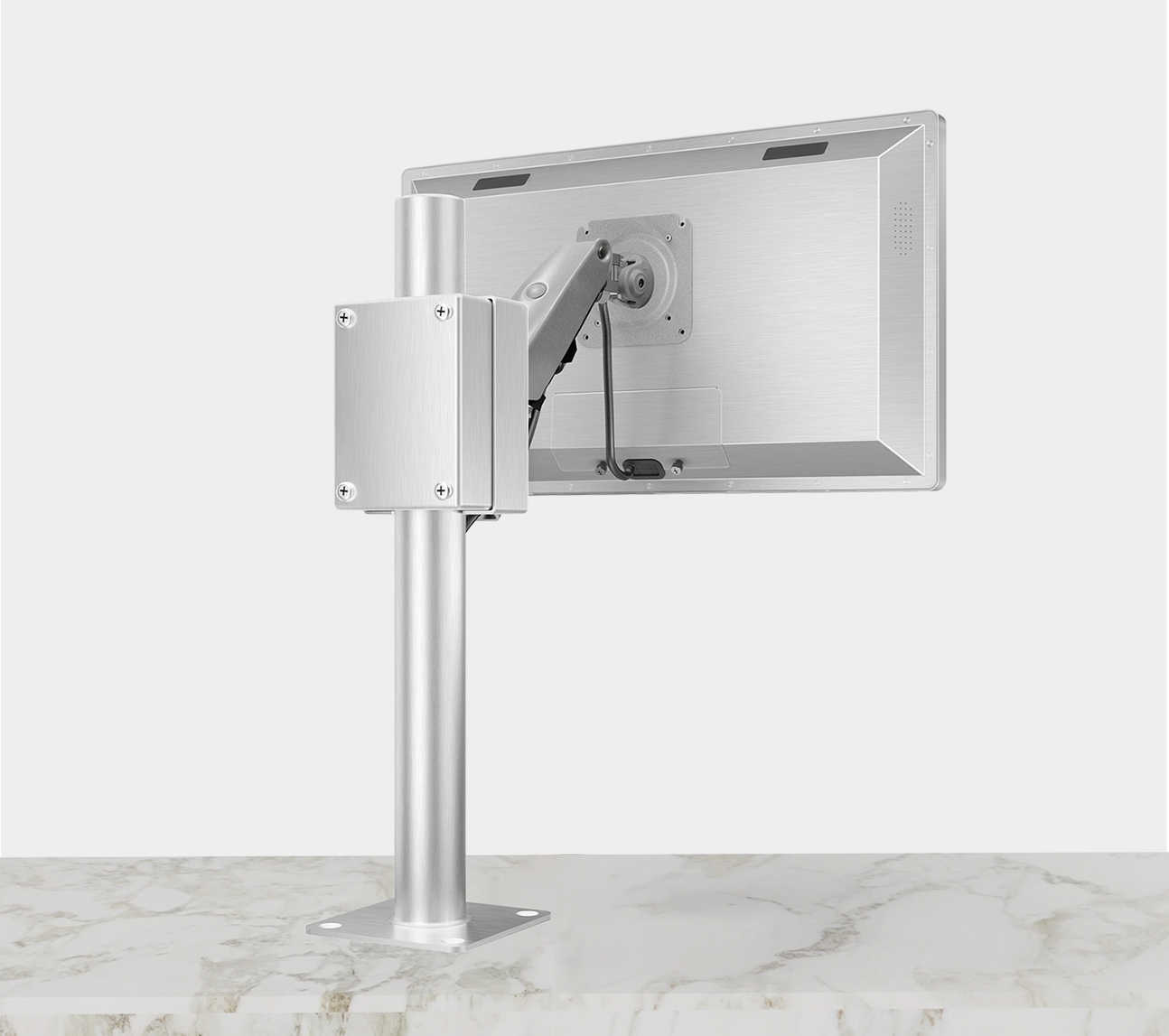

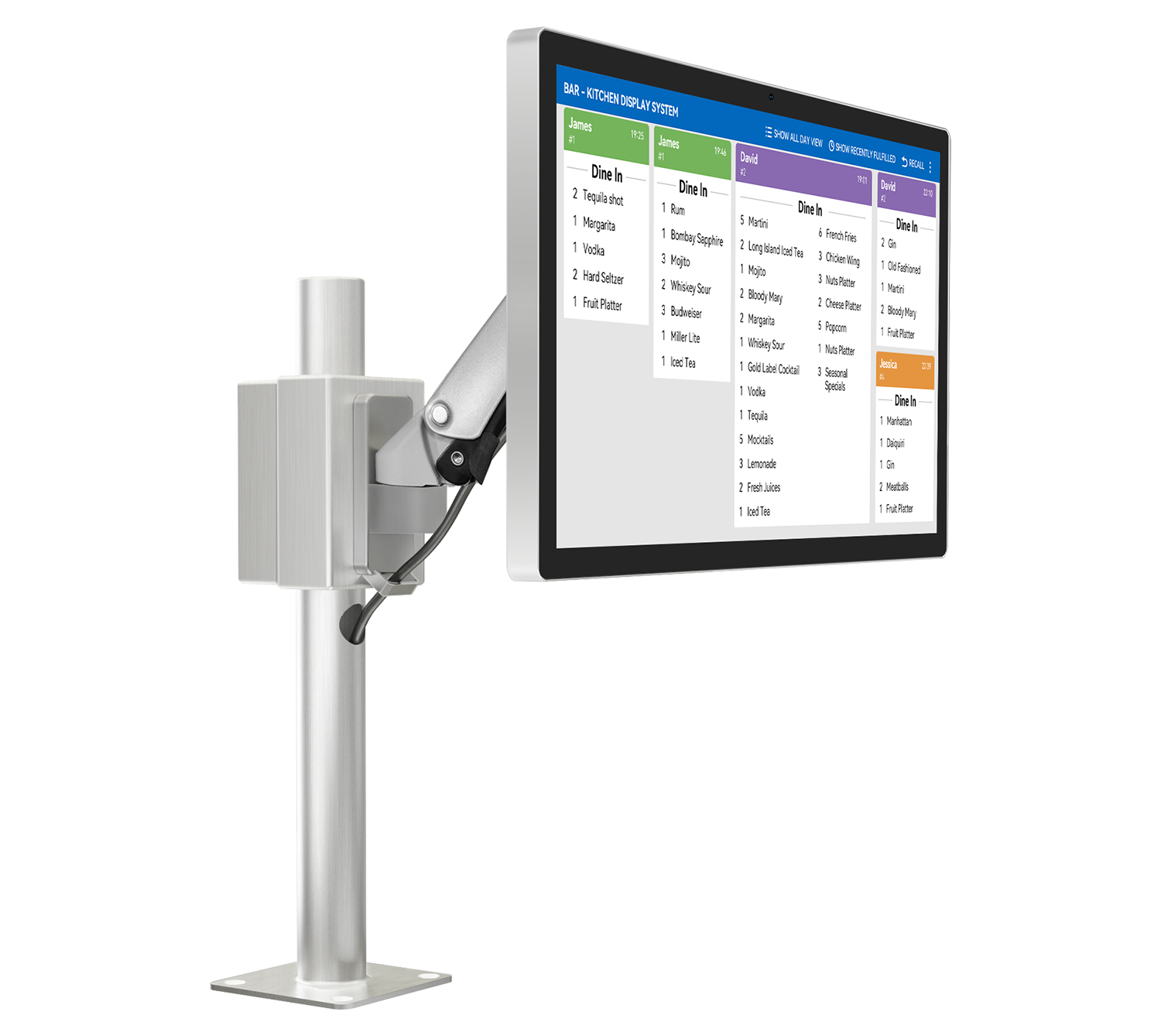

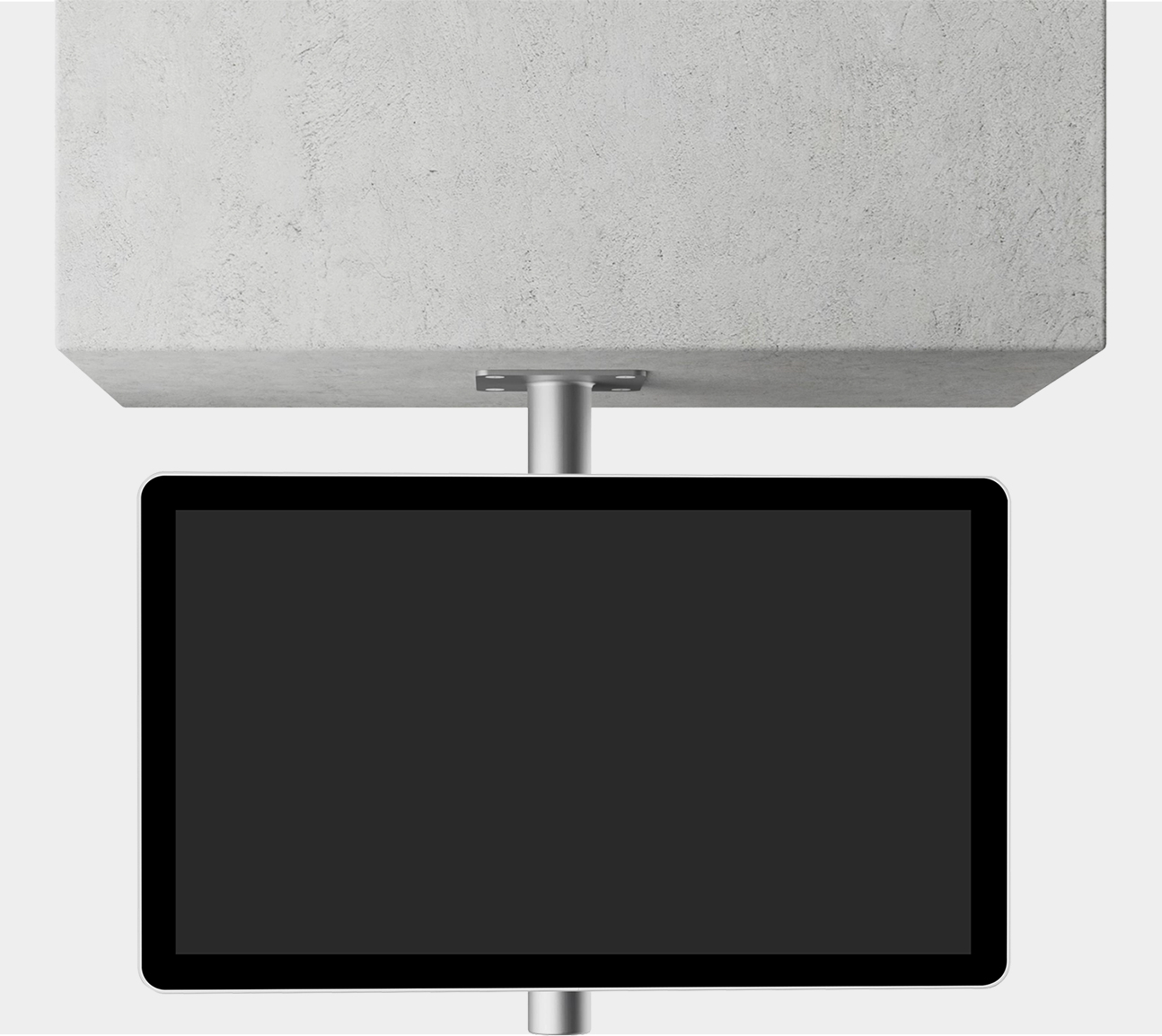

FLEXIBLE MOUNTING FOR OPTIMIZED KITCHEN WORKFLOWS
With VESA-Compatible mounting, the system supports countertop,wall, or suspended installation-adapting to different kitchen layouts while saving space and improving workflow efficiency during operation.
specifications
|
SPECIFICATION
|
ANDROID | WINDOWS |
| Processors | RK3576 4×Cortex-A72+4×Cortex-A53 up to 2.2GHz | Intel N95(6M Cache,up to 3.40 GHz) Intel CoreTM i3-1215U(10M Cache,up to 4.40 GHz) Intel CoreTM i5-1235U(12M Cache,up to 4.40 GHz) |
| Memory | DDR4 4GB On Board(Max.8GB) | 8GB Standard,DDR4 3200MHz(Max.32GB) |
| Storage | 64GB Built-in eMMC(Max.128GB) | 256GB Standard,M.2 2280 D2-M(Max.1TB) |
| Operating Systems | Android 14.0(RK3576) | Windows 10/Windows 11/Linux |
| LCD | 15.6"FHD IPS LCD/21.5"FHD IPS LCD/23.8"FHD IPS LCD | |
| Resolution | 1920x1080(15.6")/1920x1080(21.5")/1920x1080(23.8") | |
| Brightness | 500 cd/m²(15.6")/500 cd/m²(21.5")/500 cd/m²(23.8") | |
| Touch | 10-points Projected Capacitive Touch | |
| Wall Mount & Pole Mount | VESA-Compatible,Support both 75×75(mm)and 100×100(mm) | |
| Speaker | 2×2W(Stereo) | |
| WIFI/BT | 802.11a/b/g/n/ac,802.11ax optional/BT 4.0 | |
| I/O Ports | 1*DC IN/ 1*HDMI/ 1*Type-C/ 2*USB 2.0/ 1*LAN | 1*DC IN/ 1*RJ11/ 2*USB 2.0/1*HDMI/ 1*Type-C/ 2*USB 3.0/ 1*LAN/ 2*COM |
download
Data Sheet
User Guide
Drivers
