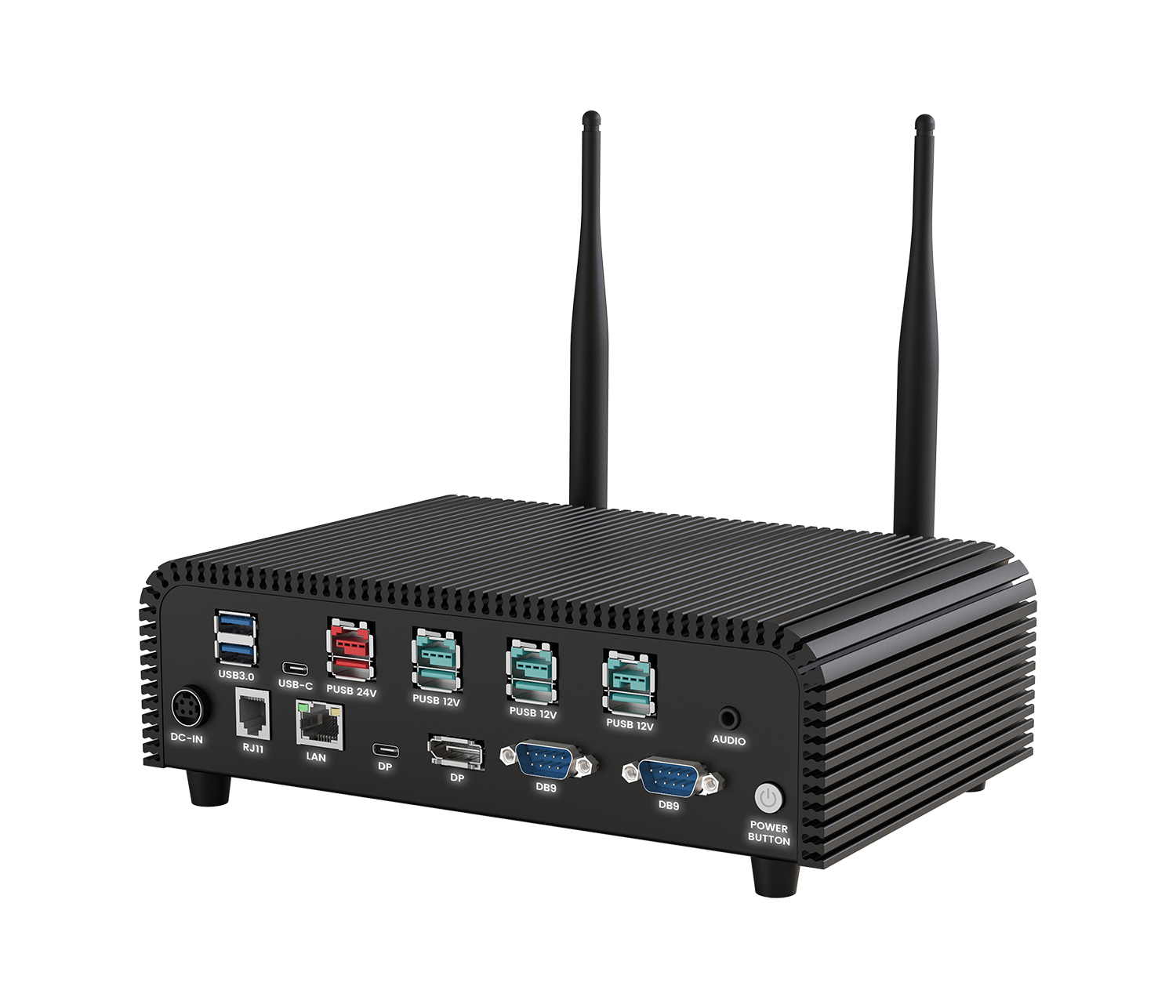

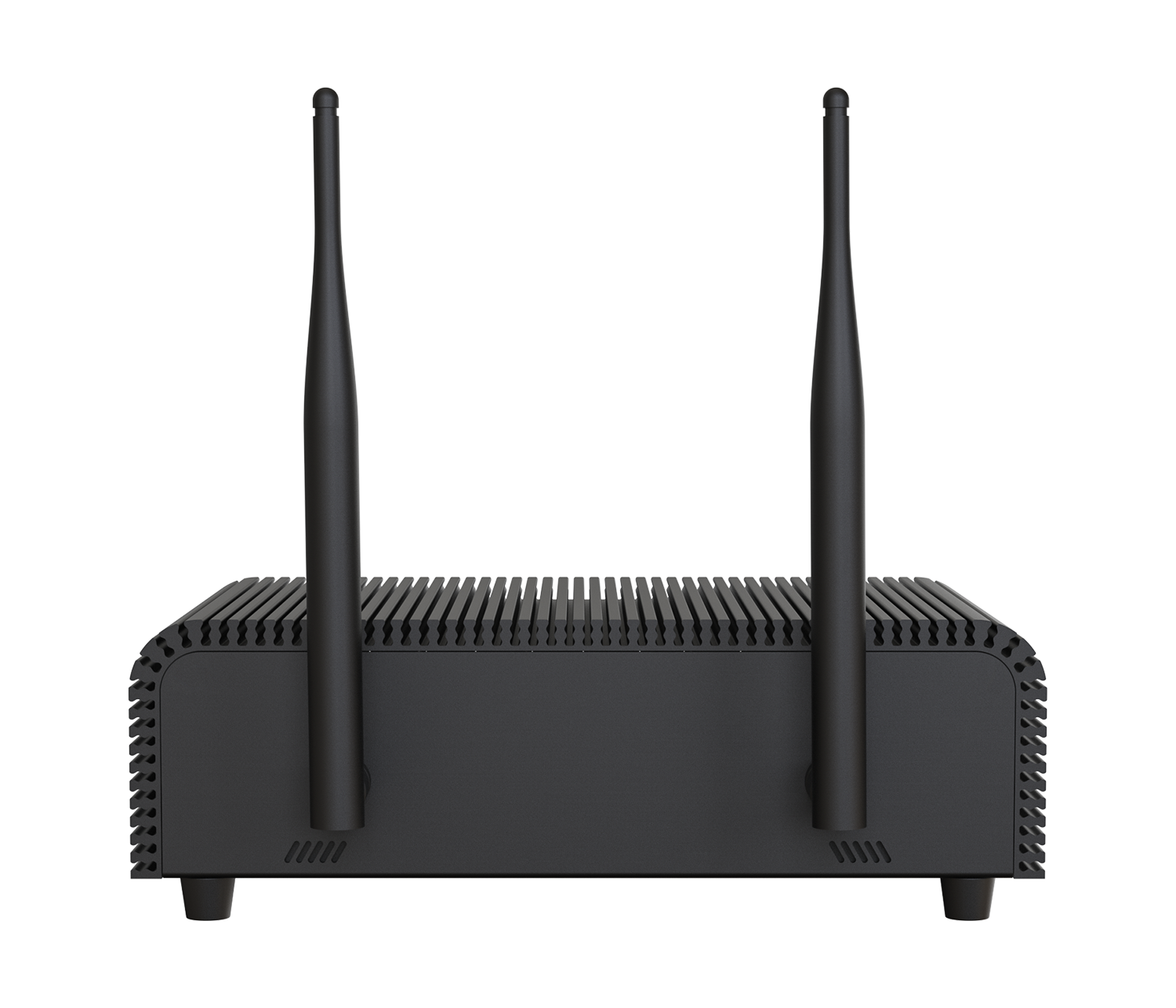

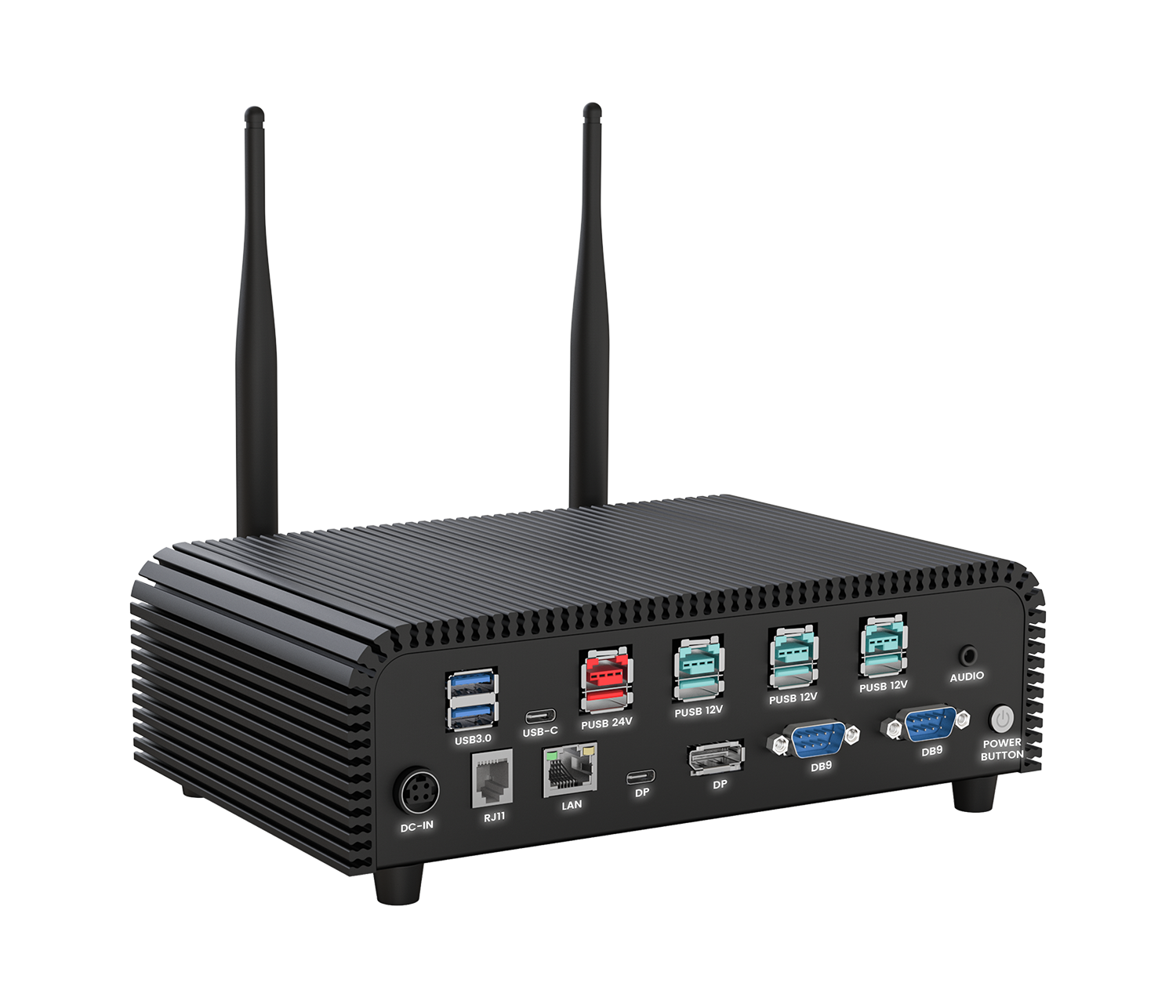

PUSB PC BOX
Developed from the system box of our M6 modular POS platform, this PC Box extends its proven and reliable architecture into a standalone solution. Built for POS environments, it delivers stable performance for continuous daily operations. It supports seamless connection with essential peripherals such as printers, cash drawers, scanners, and cashhandling devices. Easily integrated into POS terminals, kiosks, or customized setups, it offers flexibility for various applications.
<
>
features
Intel N95/13/i5-12th
ExpandableMemory
bin
bin
Powered USB
Rich IO Interfaces
VESA Mount
specifications
|
SPECIFICATION
|
PC BOX | |
| Processor | Intel® N95 (6M Cache, up to 3.40 GHz) | Intel® Core™ i3/i5 (up to 4.40 GHz) |
| System Memory | 8GB Standard,DDR4 3200MHz(Max.32GB) | |
| Storage | 256GB Standard,M.2 2280 D2-M(Max.1TB) | |
| RAID Function | N/A | |
| Intel vPro Support | N/A | |
| TPM | Yes, TPM 2.0 | |
| Power Supply | 24V/180W | 24V/180W |
| OS support | Windows 10 IoT LTSC / Windows 11 IoT LTSC | |
|

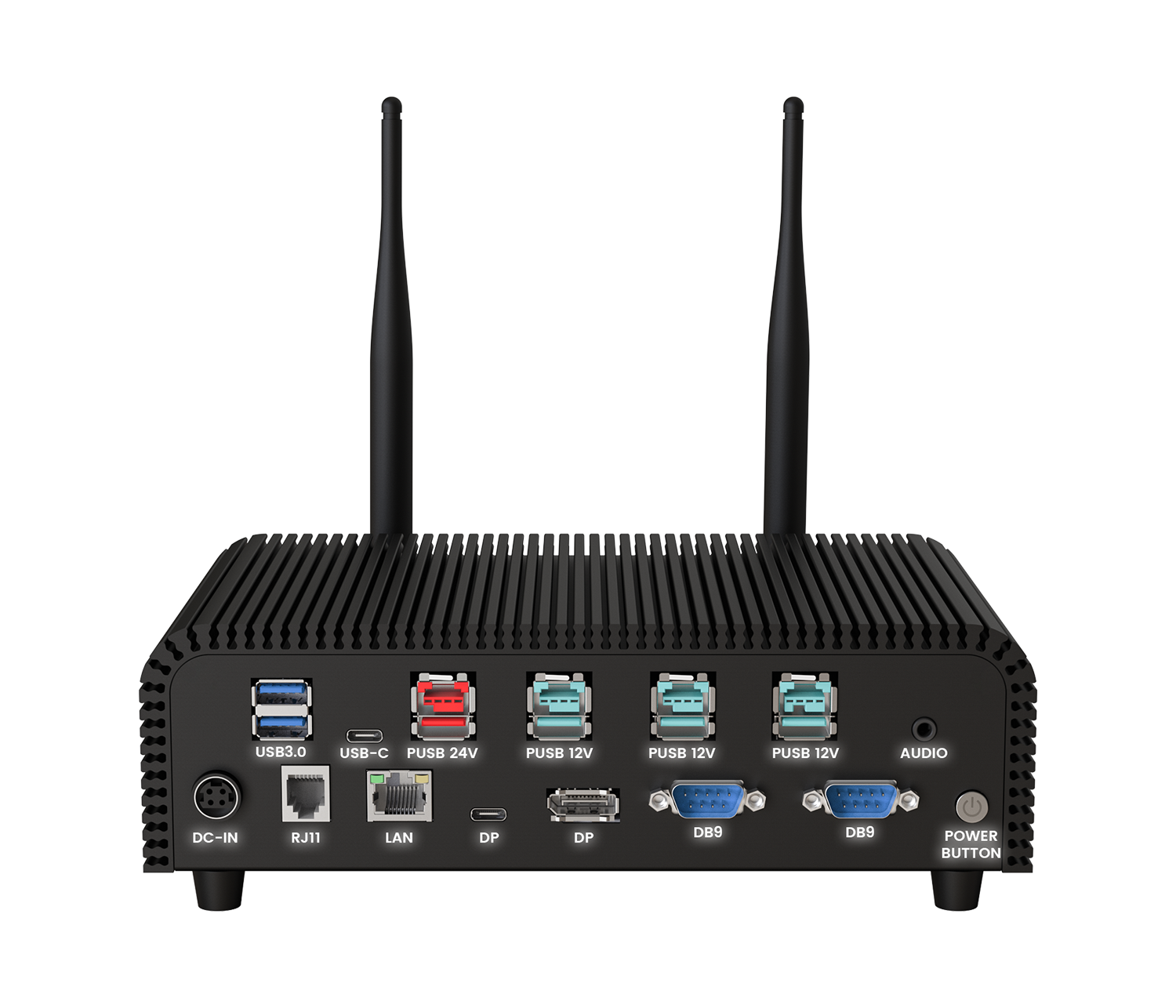

I/O & EXPANSION
|
PC BOX | |
| Serial Port | DB9×2 (5V/12V support on all COM ports) | |
| Standard USB Port | USB 3.0×2 | |
| Powered USB Port | PUSB 12V×3 + PUSB 24V×1 | |
| LAN Port | 2.5 Gbe×1 | |
| Display Port | DP Type-C×1 + DP USB×1 | |
| Cash Drawer Port | RJ 11 | |
| Audio | Internal 2W speaker×1, Mic-in/line-out×1 | |
|
PHYSICAL DIMENSION
|
PC BOX | |
| Dimensions(W×D×H in mm) | 234×205×53 | |
| Weight (N. W. in kg) | 2.5 | |
|
ENVIRONMENTAL
|
PC BOX | |
| Operating Condition | 0℃ - 40℃, 20%RH - 90%RH | |
| Storage Condition | -20℃ - 70℃, 10%RH - 90%RH | |
